ansult 019914 LED Strip Instruction Manual
SAFETY INSTRUCTIONS
- Carefully read the instructions before use! Save these instructions for future reference.
- Check that all connections are properly made before switching on the product.
- If the product does not work, check that the circuit is supplied with voltage.
- Keep children at a safe distance from the product when it is in use.
- If the permitted maximum voltage is exceeded this can damage the product, or reduce its useful life.
- If the permitted maximum temperature is exceeded this can damage the product, or reduce its useful life.

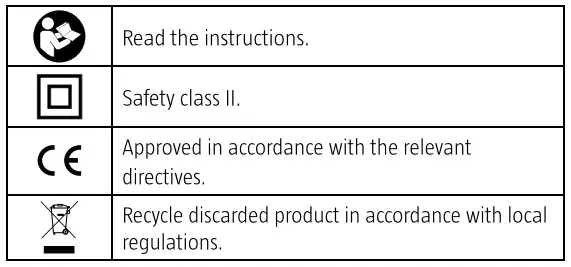

SYMBOLS
TECHNICAL DATA
Output 1.2 W
No. of LEDs 12
Colour temperature 3000 K
Luminous flux 90 Im
LED strip, size 400x 8×5 mm
Cord length 2000 mm
Operating temperature -20 to 40°C
Storage temperature -20 to 45°C

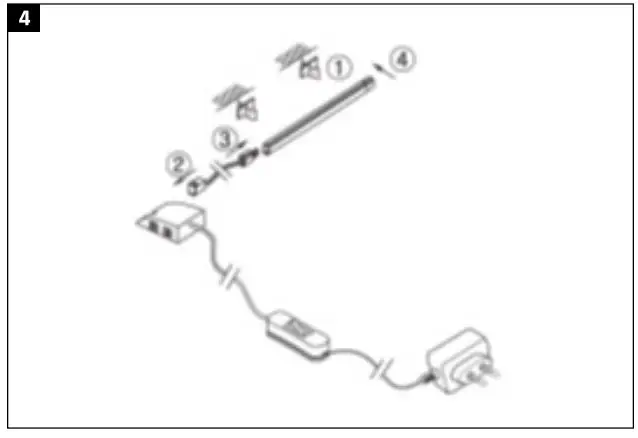

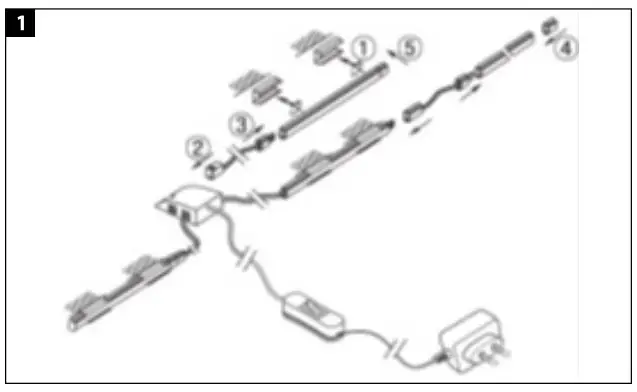

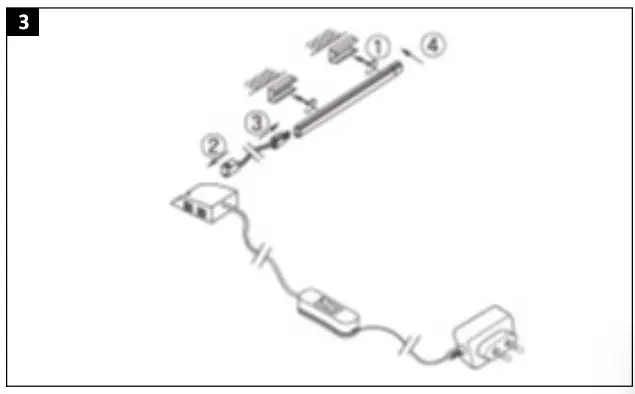

INSTALLATION
- Measure the distance between the ends of the light, and mark out and fit the fasteners with the self-tapping screws.
- Put the ends of the light in the fasteners.
- Connect the cord to the LED strip.
- Connect the power cord and switch on.

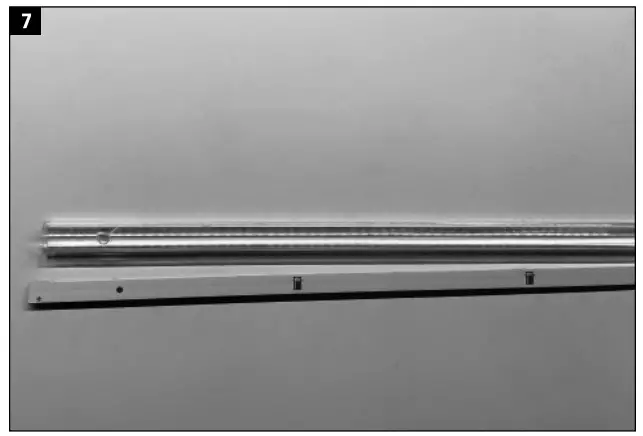

REMOVAL
- Remove the small cylinder on the transparent cover with a drill.
- Press out the circuit board.
- Test the light source by connecting to 12 VDC.
