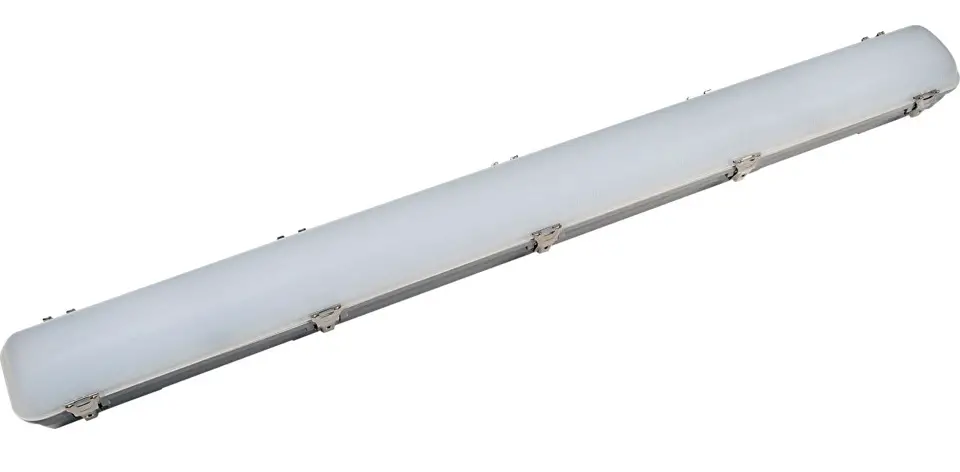

namron 3308411 LED Illuminated Panel
SPECIFICATIONS
Dense industrial luminaire with LED Illuminated panel. Housing in glass fiber reinforced polyester to withstand more demanding enviroment. Lamp housing in polymethyl methacrylate. Acid-resistant 316 steel clip holds the lamp house in place. Suitable for use outdoors and in harsh environments such as barns, commercial kitchen, farm,washing and the like.
| LED power: | 2x12W/ 2x18W/ 2x25W |
| Voltage: | 220-240V~ 50/60Hz |
| Lumen: | 3120lm/ 4680lm /6500lm |
| Color Temperature: | 4000K |
| Ra: | 80 |
| Beam angle | 120° |
| Lifetime: | 50,000h L80 |
| Ta | 35°C |
| IP rating | IP65 |
MOUNTING

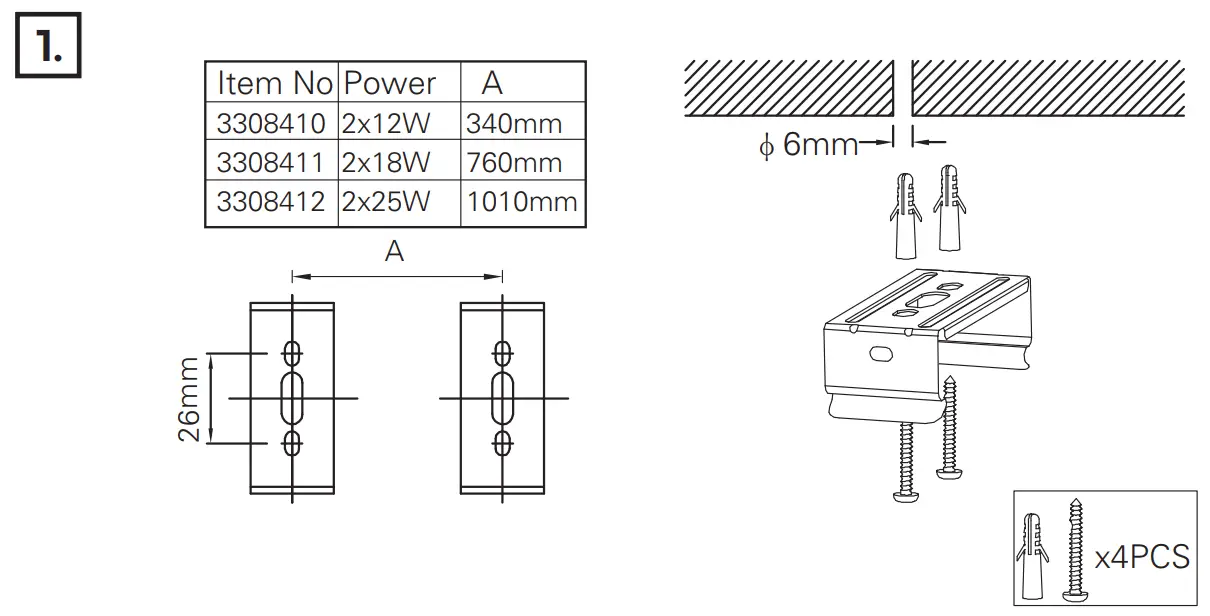

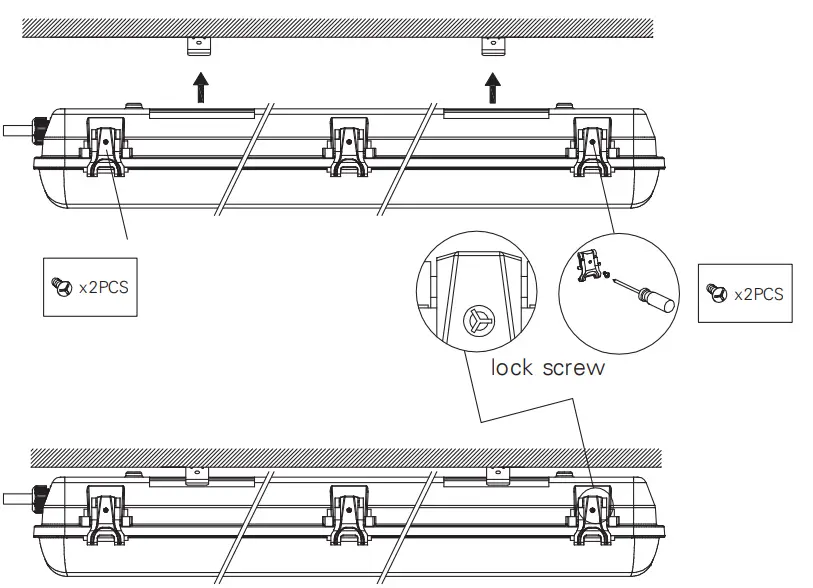

- Installation of fittings should only be done using the included mounting clips. (2 pcs)

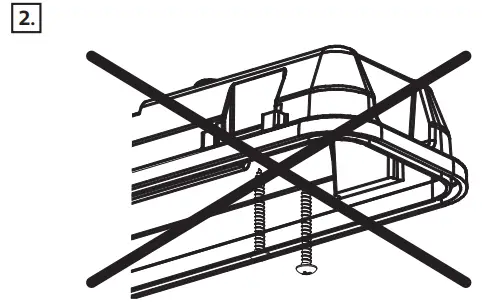

- . NEVER screw directly into the luminaire housing, the construction will deteriorate and IP level will not be maintained.

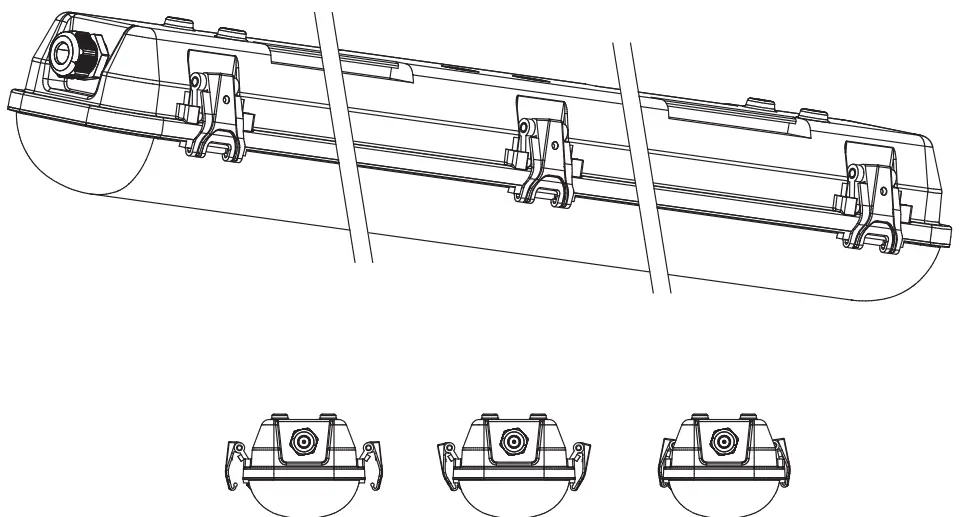

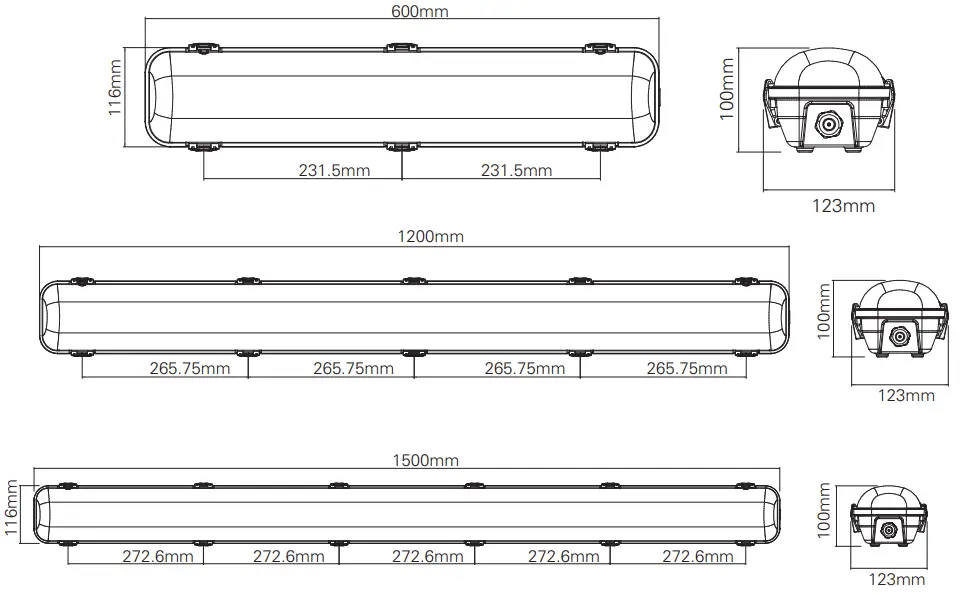

MEASURES
OPERATION

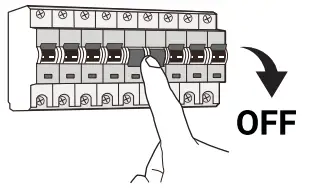

1. Turn off the power  | 2. |

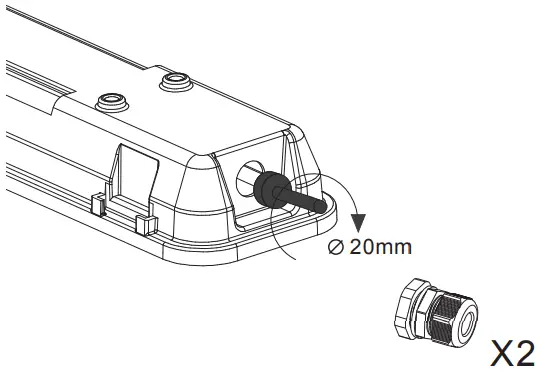

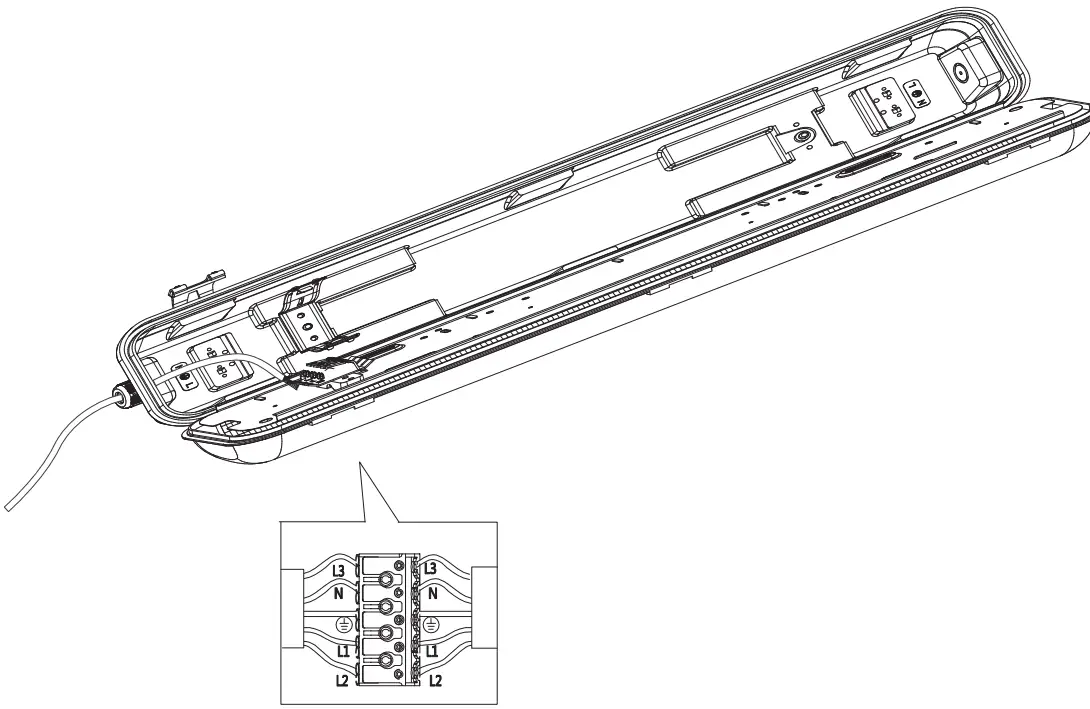

3. Through wire only  | 4. |
5. | 6. |

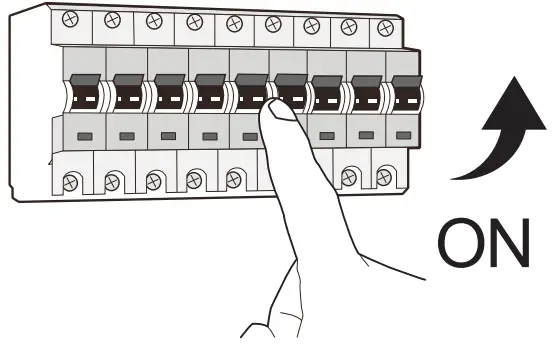

7. | 8. Turn on the power  |
Safety Notice
- Electrical installation should be done by registered electrician only.
- Never touch the lamp while luminaire is switched on.
- In any case of malfunction disconnect luminaire from supply immediately,don’t try to repair the luminaire yourself, repair should only be done by official service agent.
- The light source contained in this luminaire shall only be replaced by the manufacturer or his agent or a similar qualified person.
Namron AS- Nedre kalbakkvei 88B 1081 Oslo -Norway
