INSTRUCTION MANUAL
Namron UFO High Bay LED
3222226 UFO High Bay LED
100-240VAC -50/60Hz
LED power: 150W/240W
Voltage: 100-240VAC -50/60Hz
Lumen: 165001m/321001m
UGR(med reflector): <23
Lifetime: 54,000h L70
SDCM: 3
IP rate: IP65

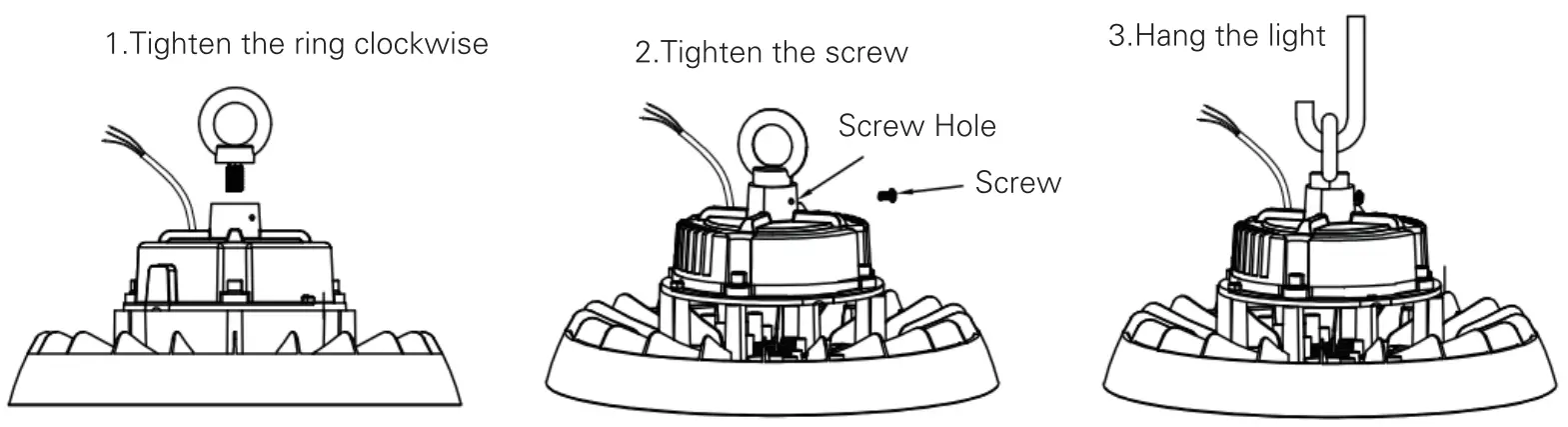

MOUNTING

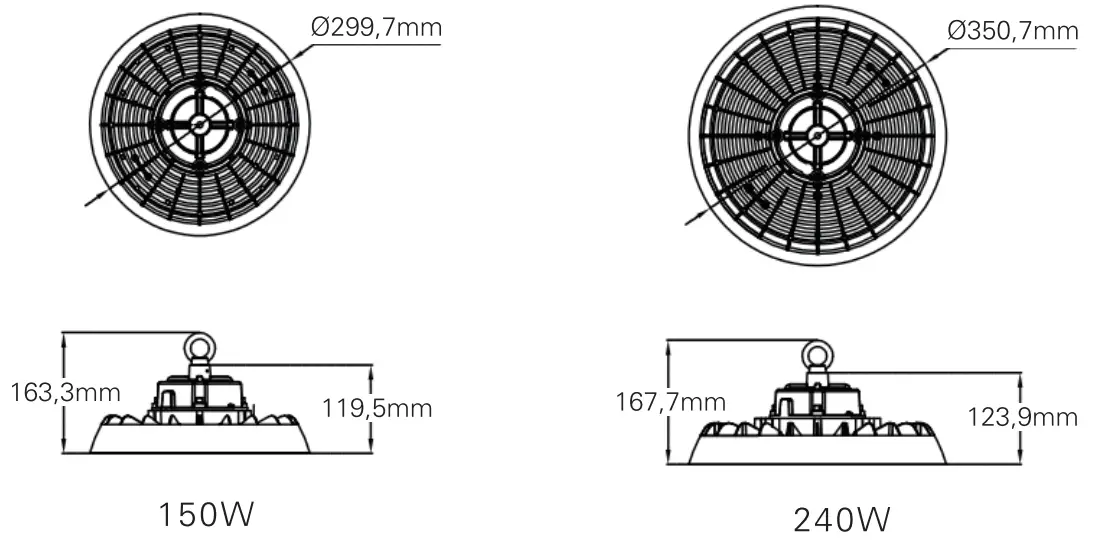

MEASURES
3222226/3222227
FOR INFORMATION
1. Installation must be performed by a registered electrician.
This product contains a light source of energy efficiency class: see table or label.
| EI-nr | procukt | Effekt(W) | Energieffektivitetsklasse for lys |
| 3222226 | UFO High Bay LED 150W | 150 | 150 |
| 3222227 | UFO High Bay LED 240W | 240 | 240 |
Namron AS-Nedre Kalbakkvei 88 B N-1081 Oslo-Norway
