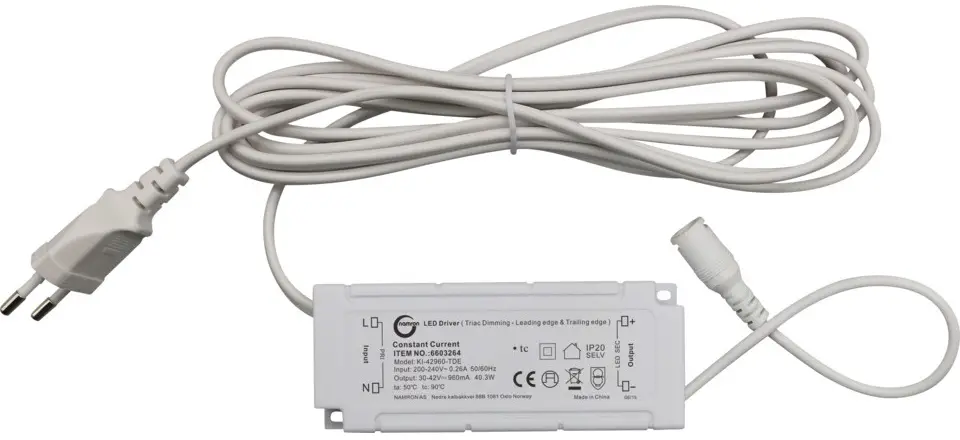

namron Driver Dimbar til LED Panel Instruction Manual
Specification
- Input voltage of driver: 220-240V~ 50/60Hz
- Output voltage of driver: 30-40V 700-900mA
30-38V 1000mA - Total power: Max 38W
- Dimmable: Yes
- Ta/Tc: 40°C/90°C
- Isolation class: II
- IP rating: IP20
- Over load protection. Over temperature protection.
- Short-circuit protection

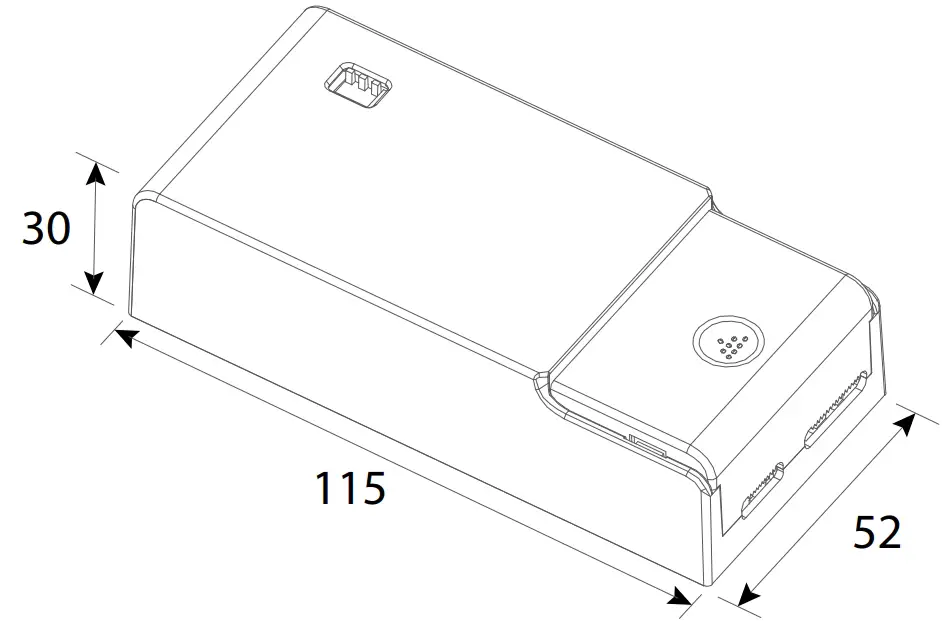

MEASURES

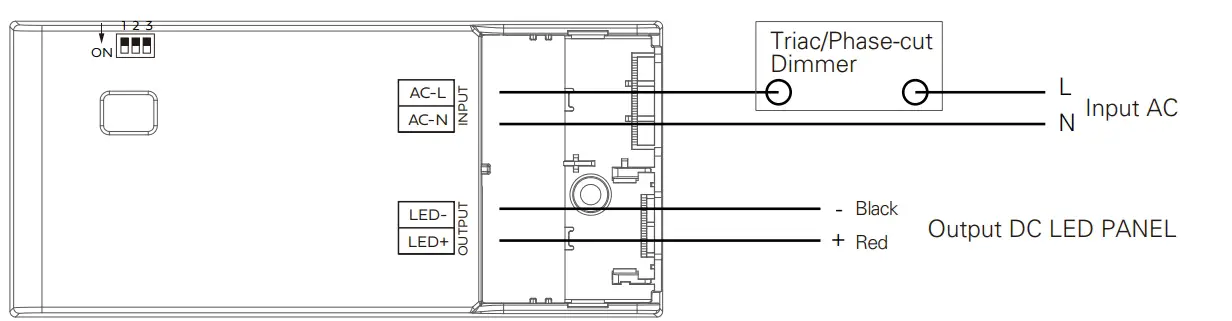

WIRING
Turn off power before installing.
Pout | Vo DC | lo DC | 1 | 2 | 3 |
26.6W | 30-40V | 700mA | – | – | – |
| 30.4W | 800mA | ON | – | – | |
34.2W | 900mA | – | ON | – | |
| 38W | 30-38V | 1000mA | ON | ON | – |
Namron AS
Nedre Kalbakkvei 88B, 1081 Oslo
NORWAY
