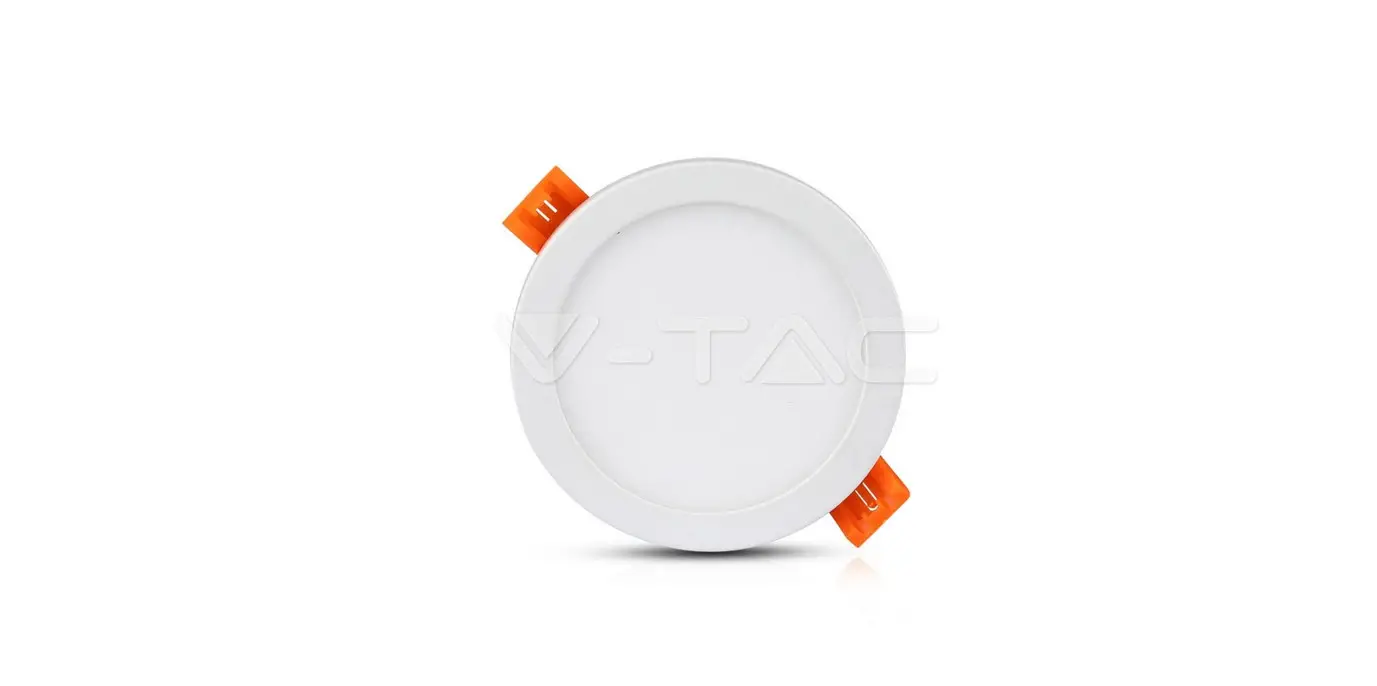

VT-888 LED Premium Panel
Instruction Manual
TECHNICAL DATA:
| Model | Watts | Lumens | BeamAngle | PF | CRI | Input Power | Dimension | Cutting Size |
| VT-888 | 8 | 800 | 120 | >0.9 | >80 | AC:85-265V,50/60Hz | ø100x8mm | 90mm |
| 90x90x8nnm | ||||||||
| VT-1515 | 15 | 1500 | 120 | >0.9 | >80 | AC:85-265V,50/60Hz | ø146x8mm | 130mm |
| 146x146x8mm | ||||||||
| VT-2222 | 22 | 2200 | 120 | >0.9 | >80 | AC:85-265V,50/60Hz | ø170x8mm | 155mm |
| 170x170x 8mm | ||||||||
| VT-2929 | 29 | 2900 | 120 | >0.9 | >80 | AC:85-265V,50/60Hz | ø220x8mm | 195mm |
| 220x220x 8mm |
WARNING!
- Please make sure to turn off the power before starting the installation.
- The light source of this luminaire is not replaceable, when the light source reaches its end of life the whole luminaire should be replaced.
- Install only by certified Electrician.
This marking indicates that this product should not be disposed of with other household wastes.
Caution, risk of electric shock.
INSTALLATION DIAGRAM:

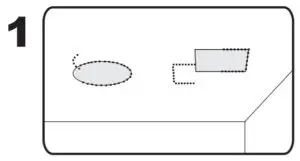

Step 1: Decide where you want to place the panel and cut a hole as per the cutout size provided.

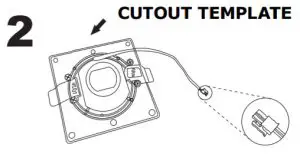

Step 2: Connect the Live and Neutral wires

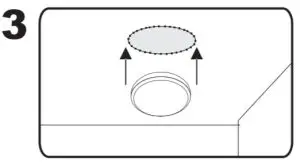

Step 3: Hold the two clips back against the panel light and push it into the hole. Allow the springs to pull the light up to the ceiling

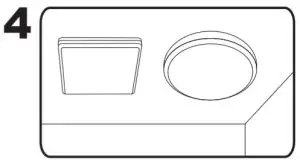

Step 4: Switch ON the power and test
INTRODUCTION & WARRANTY
Thank you for selecting and buying the V-TAC LED product. V-TAC will serve you the best. Please read these instructions carefully before starting the installation and keep this manual handy for future reference. If you have any other queries, please contact our dealer or local vendor from whom you have purchased the product. They are trained and ready to serve you at your best. The warranty is valid for 2 years from the date of purchase. The warranty does not apply to damage caused by incorrect installation or abnormal wear and tear. The company gives no warranty against damage to any surface due to incorrect removal and installation of the product. The products are suitable for 10-12 Hours of Daily operation. Usage of product for 24 hours a day would void the warranty. This product is warranted for manufacturing defects only.
! WARNING
- Install only by a certified electrician.
- Proper grounding should be ensured throughout the installation
INSTALLATION INSTRUCTION:
Step 1: Decide where you want to place the panel and cut a hole as per the cutout size provided.
Step 2: Connect the Live and Neutral wires
Step 3: Hold the two clips back against the panel light and push it into the hole. Allow the springs to pull the light up to the ceiling
Step 4: Switch ON the power and test
IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT, PLEASE REACH OUT TO US AT: [email protected]
FOR MORE PRODUCTS RANGE, INQUIRY PLEASE CONTACT OUR DISTRIBUTOR OR NEAREST
DEALERS. V-TAC EUROPE LTD. BULGARIA, PLOVDIV 4000, BUL.L.KARAVELOW 9B
