TV WALL MOUNT SUPPORT MURAL TV
INSTRUCTION MANUAL MANUEL D’INSTRUCTIONS

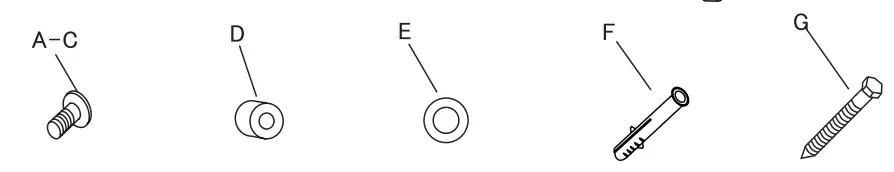

Hardware List
ID | Qty | Description |

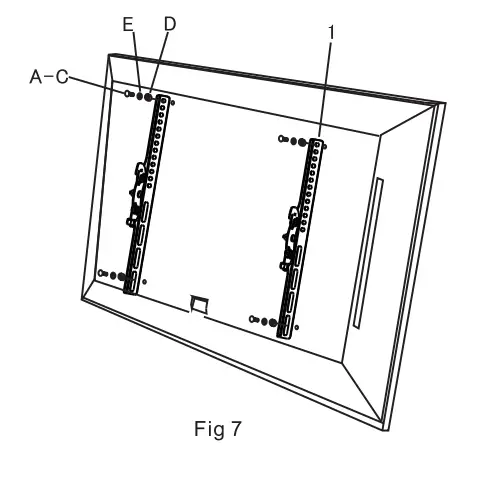

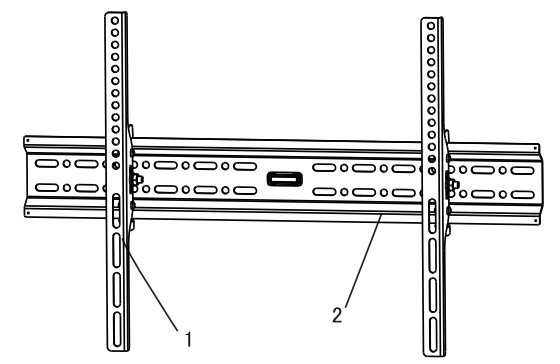

| 1 | 2 | Bracket/ Support |

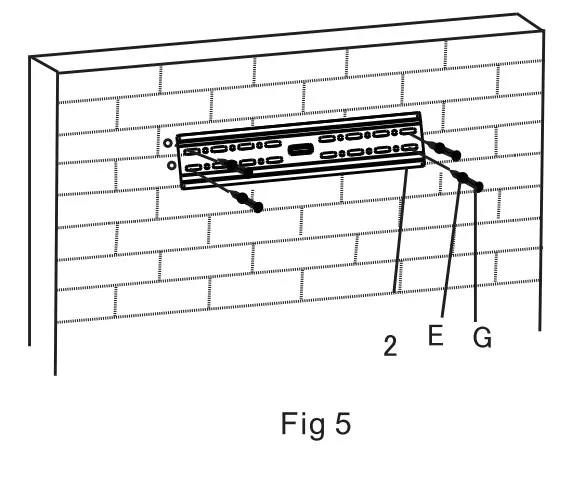

| 2 | 1 | Wall Mount/ Montage Mural |
| A | 4 | M4*20mm bolt/ boulon |
| B | 4 | M6*25mm bolt/ boulon |
| C | 4 | M8*25mm bolt/ boulon |
| D | 4 | (I)18X (1)8.5X10 spacer/ espaceur |
| E | 8 | M6 washer la rondelle |
| F | 4 | (1)6×40 Wall anchor ancrage mural |
| G | 4 | St6 X 50 bolt/ boulon |
