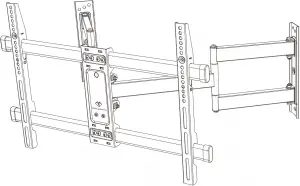

Large Corner TV Wall Mount
Instruction Manual V3.0

Model: PSCLF1

Thank you for choosing this Perlesmith product! At Perlesmith we strive to provide you with the best quality products and services in the industry. Please share your experience of our product with others on www.perlesmith.com/pages/reviews if you are satisfied. Should you have any issues, please don’t hesitate to contact us.
Technical Support:
1-800-556-6806 Mon-Fri 10am – 5pm (PST) (USA) (CAN)
Other Info:
[email protected] (US/CA/DE/UK/FR/IT/ES/AU)
Web Site: www.perlesmith.com

IMPORTANT SAFTY INFORMATION

Please carefully read all instructions before attempting installation. If you do not understand the instructions or have any concerns or questions, please contact our Technical Support line at 1-800-556-6806 or customer service at [email protected]

CAUTION: Avoid potential personal injuries and property damage!

Do not use this product for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity. We are not liable for damage or injury caused by improper mounting, incorrect assembly or inappropriate use.
This product is designed for use in wood stud, solid concrete, and concrete block walls – DO NOT install into drywall alone.
The wall must be capable of supporting five times the weight of the TV and mount combined.

Check the VESA Pattern of Your TV before the Installation

100 mm ≈ 4 in.
200 mm ≈ 7 7/8 in.
300 mm ≈ 11 3/4 in.
400 mm ≈ 15 3/4 in.
600 mm ≈ 23 6/10 in.

Minimum VESA pattern: 200mm/8 in.(W)x100mm/4 in.(H)

If your TV VESA is greater than 600×400 mm/23×16 in. or less than VESA 200x100mm/8x4in., this mount is NOT compatible.

If this mount is NOT compatible, please contact customer service at [email protected] to find a compatible mount.

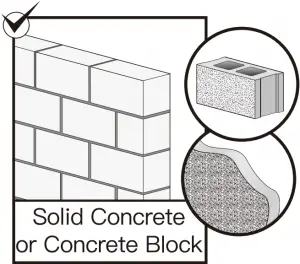

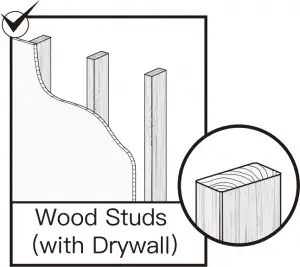

Verify Your Wall Construction

CAUTION

DO NOT install into drywall alone

If you are not sure the wall construction, please contact our product support line at 1-800-556-6806 or customer service at [email protected]

Tools Needed (Not included)

Stud Finder Tape Measure Pencil Drill Hammer

7/32 in.(5.5mm) Wood Drill 3/8 in.(10mm) Concrete Drill

1/2in.(13mm )Socket Wrench Screw Driver

Supplied Parts and Hardware

Warning: This product contains small items that could be a choking hazard if swallowed.

Before starting assembly, verify all parts are included and undamaged. Do not use damaged or defective parts. lf you require replacement parts, contact our Product Support line at 1-800-556-6806 or customer service at [email protected]

Please note: Not all hardware included in this package will be used.

Supplied Parts and Hardware for Step 1

TV Bracket 04 x2

06 Washers

[B]

x4
M6/M8

07 Spacers [if needed]

Note: The spacers are shown in accordance with the actual size

[C1] [C2]

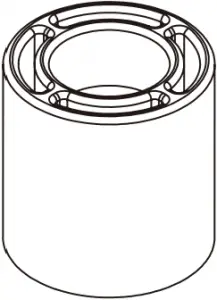

x8 Φ8.5x18x2.5mm x4 Φ 8.5x18x10mm [C3]

x4 Φ 8.5x18x22mm

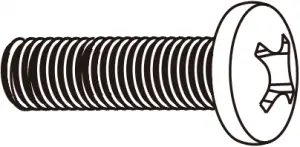

08 TV Bolts [Only one bolt size fits your TV]

Note: The bolts are shown in accordance with the actual size

[D1] [D2]

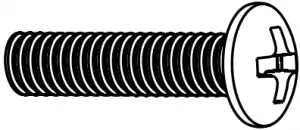

M6 x 15mm x4 M6 x 35mm x4

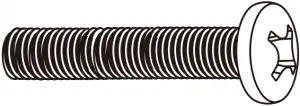

[E1] [E2] [E3]

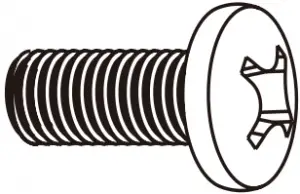

M8 x 25mm x4 M8 x 35mm x4 M8 x 50mm x4

Supplied Parts and Hardware for Step 2

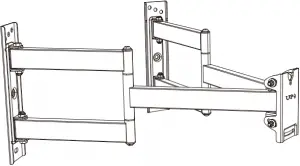

Arm and Wall Plate 01 x1 Wall Plate Template 05 x2

Level x1

Note: The lag screw is shown in accordance with the actual size

A1 x6 Lag Screws M8x65mm

A2 x6 Washers M8

A3 x6 Wall Anchors CAUTION! These anchors are for concrete or brick walls ONLY. DO NOT use them in drywall or wood studs.

Supplied Parts and Hardware for Step 3

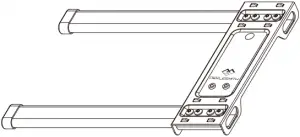

Front Support 02 x1 Arm Extension 03 x2

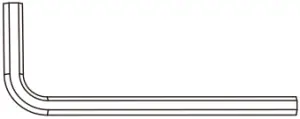

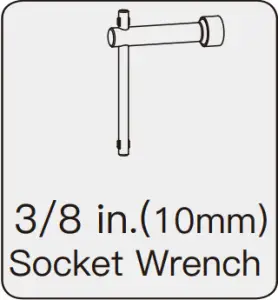

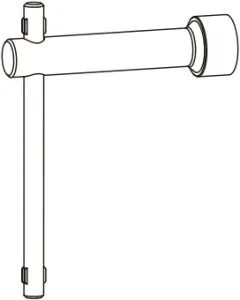

Allen Key 5/32 in.(4mm) Socket Wrench 3/8 in.(10mm)

Step 1 Secure the TV Brackets to TV

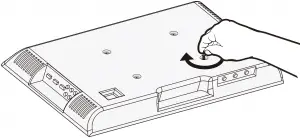

Select TV Bolts

Only one bolt size fits your TV.

M6 M8

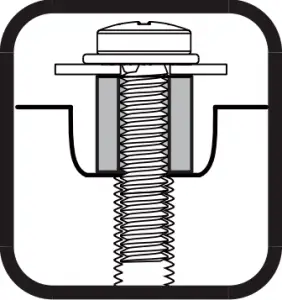

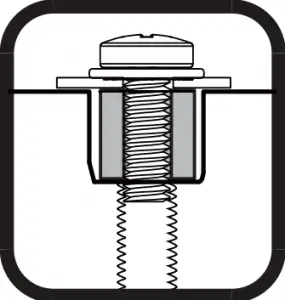

Bolt length: Verify adequate thread engagement with bolts or bolts/spacers combination. We recommend thread engagement by at least 5 turns.
-Too short will not hold the TV.

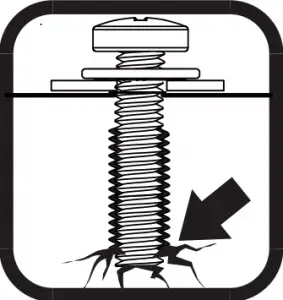

-Too long will damage the TV.

Too Short Too Long

Correct Correct

Note: If necessary, the spacers can be used in multi-layer. If the installation fails after trying various methods, please contact customer service at [email protected].

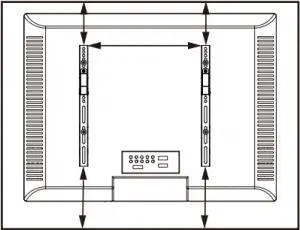

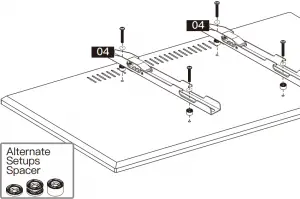

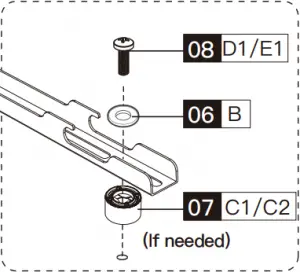

Option A (For Flat Back TV) - 1 — **Option A (For Flat Back TV)**

CAUTION: Ensure the TV brackets [04] are EQUALLY CENTERED on your TV AND securely fastened in place.
Please note: The bolt hole locations on your TV my very in accordance of the manufacturers design of the TV. We are only illustrating possible locations of the bolt holes.

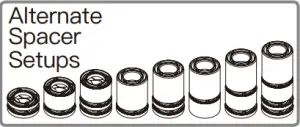

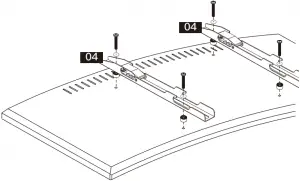

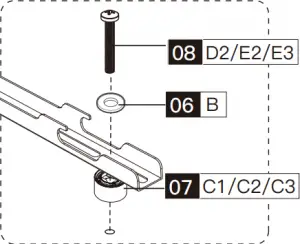

Option B (For Round Back TV)

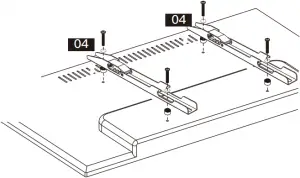

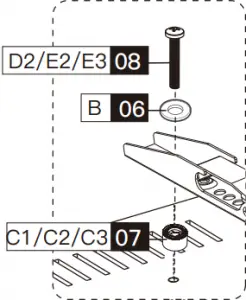

Option C (For TV with A “Bump”)

Spacers may be necessary for 2 holes ONLY.

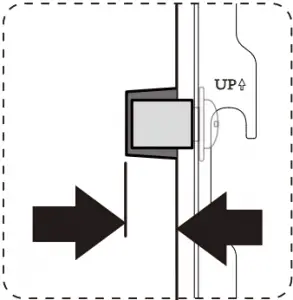

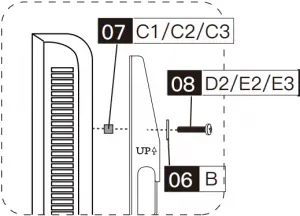

Option D

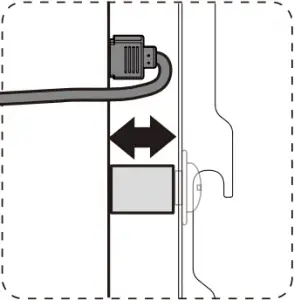

For cable interference or inset holes, use spacers 05 to create extra space between the TV and TV brackets

Step 2 Attach the Arm and Wall Plate [01] to Wall

For wood stud installation, follow STEP 2A
For concrete installation, follow STEP 2B

Step 2A Wood Stud Option

WARNING:

Avoid potential personal injury or property damage! DO NOT over-tighten the lag screws [A1]. Tighten the lag screws [A1] only until the washers [A2] are pulled firmly against the wall plate.

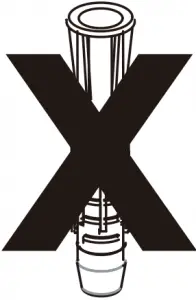

DO NOT USE ANCHOR [A3] FOR THIS STEP!
Ensure the arm and wall plate [01] is securely fastened to the wall before continuing to the next step.
Any material covering the wall must not exceed 5/8 in. (16 mm)
Nominal wood stud size: common 2 x 4 in. (51 x 102 mm) minimum 1½ x 3½ in. (38 x 89 mm)
Stud center must be verified

2A-1

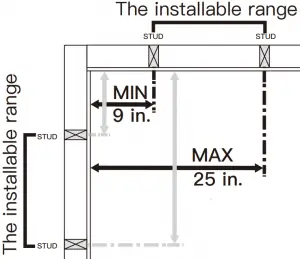

Please note: When using the PSCLF1 corner mounts. Find your stud locations, mark them and then lay the mount out on the floor configuring it to your stud locations before installing it. Making sure your TV will fit your desired location.

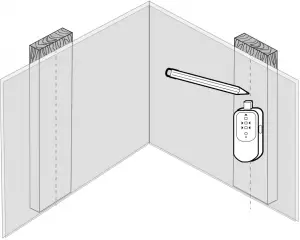

Use a stud finder (not included) to locate wood studs. Mark the edge and center locations.

2A-2

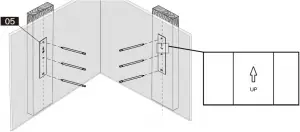

Position the wall plate template [05] at your desired height and line up the holes with your stud center line. Level the wall plate template [05] and mark the holes.

2A-3

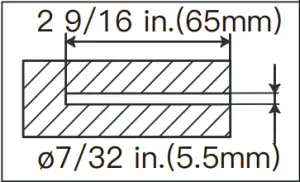

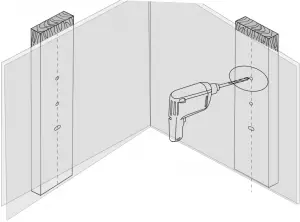

Drill 6 pilot holes using a 7/32 in.(5.5mm) diameter drill bit. Make sure the depth is not less than 2 9/16 in.(65mm).

2A-4

HEAVY! You may need assistance with this step.

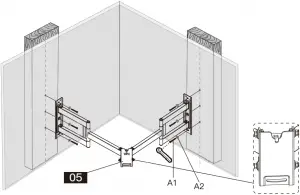

Install the arm and wall plate using lag screws [A1] and washer [A2]. Tighten the lag screws [A1] only until the washers [A2] are pulled firmly against the wall plate.

1/2 in.(13mm) Socket Wrench (Not lncluded)

Step 2B Solid Concrete or Concrete Block Option

WARNING:

Avoid potential personal injury or property damage! DO NOT over-tighten the lag screws [A1]. Tighten the lag screws [A1] only until the washers [A2] are pulled firmly against the wall plate.
Ensure the arm and wall plate [01] is securely fastened to the wall before continuing to the next step.
Any material covering the wall must not exceed 5/8 in. (16 mm)
Mount the arm and wall plate [01] directly onto the concrete surface
Minimum solid concrete thickness: 203 mm (8 in.)
Minimum concrete block size: 203 x 203 x 406 mm (8 x 8 x 16 in.)
Never drill into the mortar between blocks.

Wall Anchor A3

2B-1

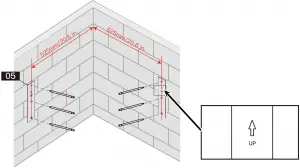

Position the wall plate template [05] at your desired height, level the wall plate template [05] and mark the pilot hole locations. (The distance between the center location and the corner of wall should be 525mm/20.6 in.)

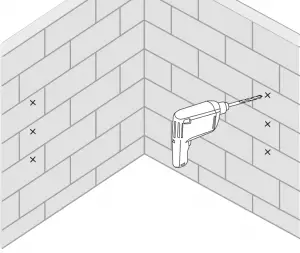

2B-2

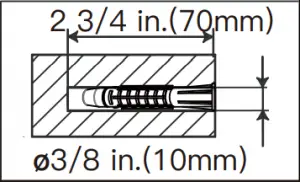

Drill 6 pilot holes using a 3/8 in.(10mm) diameter drill bit. Make sure the depth is not less than 2 3/4 in.(70mm). Never drill into the mortar between blocks.

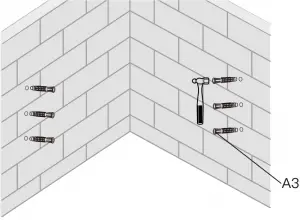

2B-3

Use the hammer to knock anchors [A3] into the wall. Be sure the anchors [A3] are seated flush with the concrete surface.

2B-4

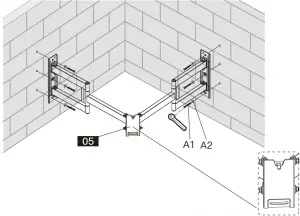

Install the arm and wall plate using lag screws [A1], washers [A2] and anchors [A3]. Tighten the lag screws [A1] only until the washers [A2] are pulled firmly against the wall plate. DO NOT over-tighten the lag screws [A1].

1/2 in.(13mm) Socket Wrench (Not lncluded)

HEAVY! You may need assistance with this step.

Step 3 Secure Front Support Assembly to the Arm and Wall Plate

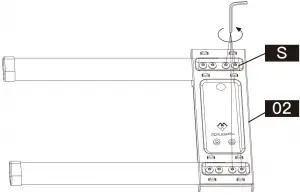

3-1

Remove the pre-assembed bolts [S] from the front support [02] and save them for the use in step 3-3.

Allen Key 5/32 in.(4mm)

3-2

Insert the arm extensions [03] into the front support [02]

3-3

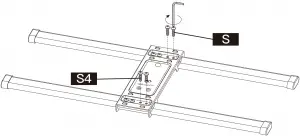

Fasten the bolts [S] removed from the front support [02] to secure the arm extensions [03] to the front support [02].

Allen Key 5/32 in.(4mm)

3-4

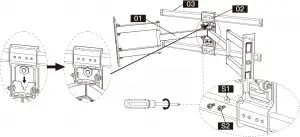

Hang the front support assembly to arm and wall plate [01]. Tighten the preassembled bolts [S2] and washers [S1] to secure the front support assembly to arm and wall plate [01].

Make sure the big button in front support [02] hangs on the hook of the arm and wall plate assembly [01].

Step 4 Secure the TV with Brackets to the Front Support Assembly

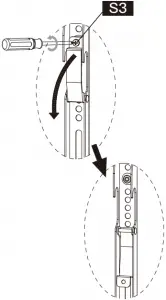

4-1. Remove the preassembled bolts [S3] on the TV brackets [04] using screwdriver and keep them for the use in 4-3.

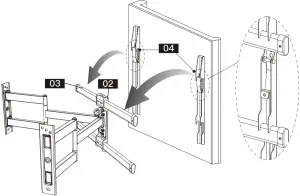

4-2. Hang the TV with TV brackets [04] to the front support assembly.

HEAVY! You may need assistance with this step.

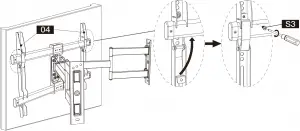

4-3. Tighten the bolts [S3] using screwdriver to the brackets to secure the TV to the front support assembly.

HEAVY! You may need assistance with this step.

Adjustments

Tilt Adjustment

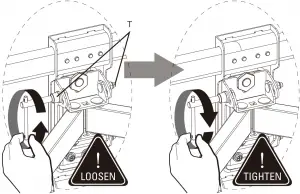

Loosen four tilt nuts [T] using socket wrench.
Adjust TV to your desired tilt angle.
Retighten four tilt nuts [T] using socket wrench to fix the tilt angle.

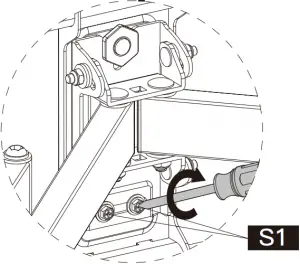

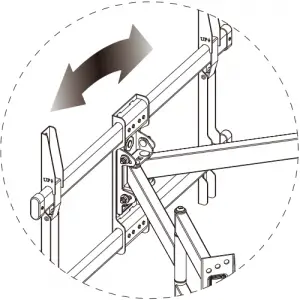

Level Adjustment

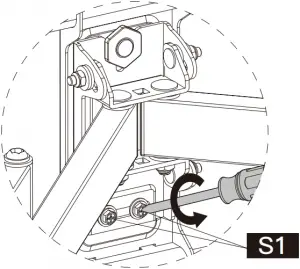

Loosen the two bolts [S1] on the rear of the front support.
Level your TV.

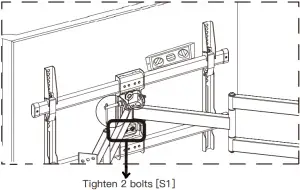

Retighten both bolts [S1] to hold TV in place.

Loosen 2 bolts [S1] Level the TV Tighten 2 bolts [S1]

Swivel Adjustment

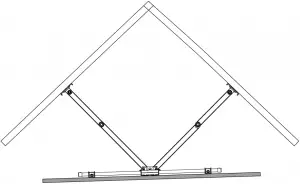

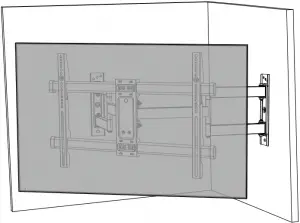

Middle Location

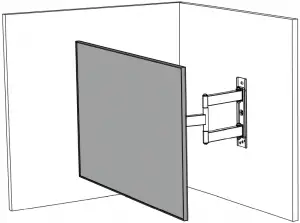

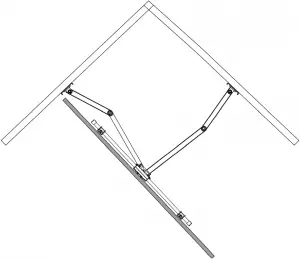

Left Side Swivel

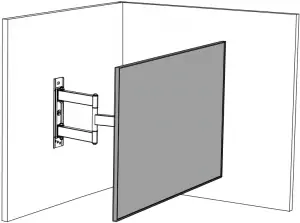

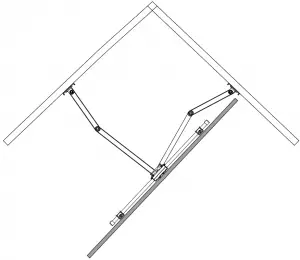

Right Side Swivel
