FSPD SERIES FOR EXTERNAL APPLICATIONS
BoltShield ™ Surge
Protection Devices

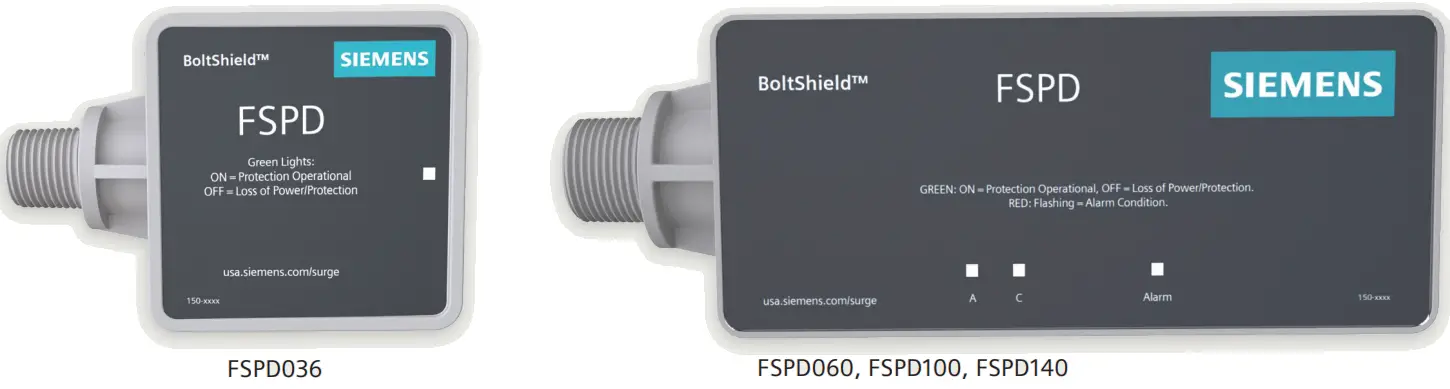

FSPD036 Boltshield FSPD Surge Protective Device
| Material ID | Surge Current Rating |
| FSPD036 | 36kA |
General Specifications
| UL Type Designation | Type 1 |
| UL 1449 I-nominal Rating | 10kA |
| UL 1449 Short Circuit Current Rating | 200kA |
Design Specifications
Custom MOV design for high energy handling in Cateogry C locations
Thermally protected MOVs
External parallel connected for mounting next to electrical gear
Reduced mode of protection (L1-N, L2-N)
Diagnostic and Status Monitoring Specifications
LED Protection Status Monitoring (Single LED Standard)
Enclosure
Polycarbonate 4.25” x 2.41” x 2.75”
Lid ultrasonically sealed
NEMA 4X
1/2 inch NPT Side Mount Nipple
Filtering
NO
Physical Specifications
| Humidity Range | 0-95% non-condensing |
| Operating Frequency | 50-60Hz |
| Operating Temperature | -35ºC to +85ºC |
| Typical Connection | 18” #12 AWG (pre-wired pig tails) |
| Material ID | Surge Current Rating |
| FSPD060 | 60kA |
| FSPD100 | 100kA |
| FSPD140 | 140kA |
General Specifications
| UL Type Designation | Type 2 |
| UL 1449 I-nominal Rating | 20kA |
| UL 1449 Short Circuit Current Rating | 200kA |
Design Specifications
Custom MOV design for high energy handling in Cateogry C locations
Thermally protected MOVs
External parallel connected for mounting next to electrical gear
All modes of protection (L-N, L-G, N-G)
Diagnostic and Status Monitoring Specifications
Phase Loss Monitoring (Standard)
Audible Alarm (Standard)
Form C Dry Contact, 240V, 2A (Standard)
3 GREEN LEDs – one for each Line disconnector
1 RED LED – flashes if fault condition:
GRM (Ground Reference Monitoring), N-G voltage > 20V detected.
Enclosure
Polycarbonate 7.95” x 3.06” x 2.75”
Lid screwed and gasketed
NEMA 4X
3/4 inch NPT Side Mount Nipple
Filtering
Standard (UL 1283)
Physical Specifications
| Humidity Range | 0-95% non-condensing |
| Operating Frequency | 50-60Hz |
| Operating Temperature | -40ºC to +85ºC |
| Typical Connection | 18” #12 AWG (pre-wired pig tails) |
Standards Compliance and Certifications
UL 1449 5th Edition: 2021, cULus, ANSI/IEEE C62.41.1-2002, C62.41.2-2002, C62.45-2002, NEC Article 285
ISO 9001:2014 Quality Management System, ISO 17025:2007 Laboratory Certification (UL DAP Program) Compliance with RoHS,
REACH & California Prop 65.
100% Quality Tested prior to shipping
| FSPD036 | Voltage Code | System Voltage | L-N | L-G | L-L | N-G | MCOV |
| A | 120/240V, 1Ø, 3W | 700 | – | 1200 | – | 150 | |
| FSPD060, FSPD100, FSPD140 | Voltage Code | System Voltage | L-N | L-G | L-L | L-L | MCOV |
| A | 120/240V, 1Ø, 3W | 700 | 700 | 1200 | 1200 | 150 |

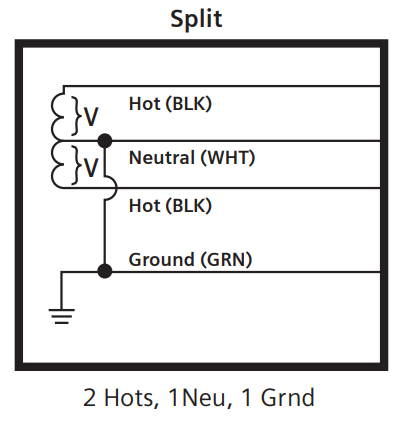

FSPD036 Wiring Configurations

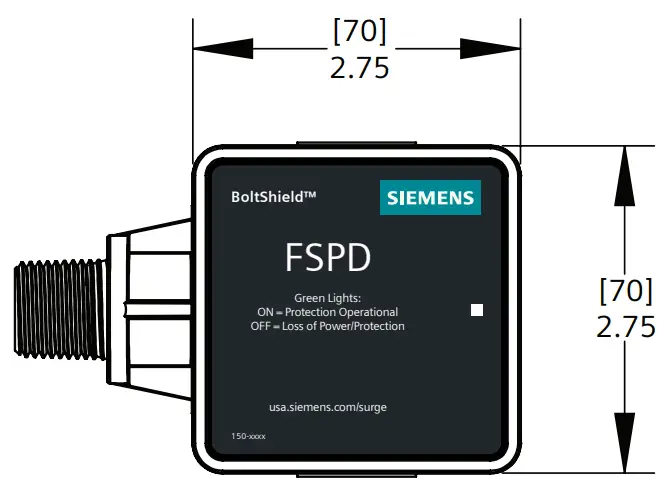

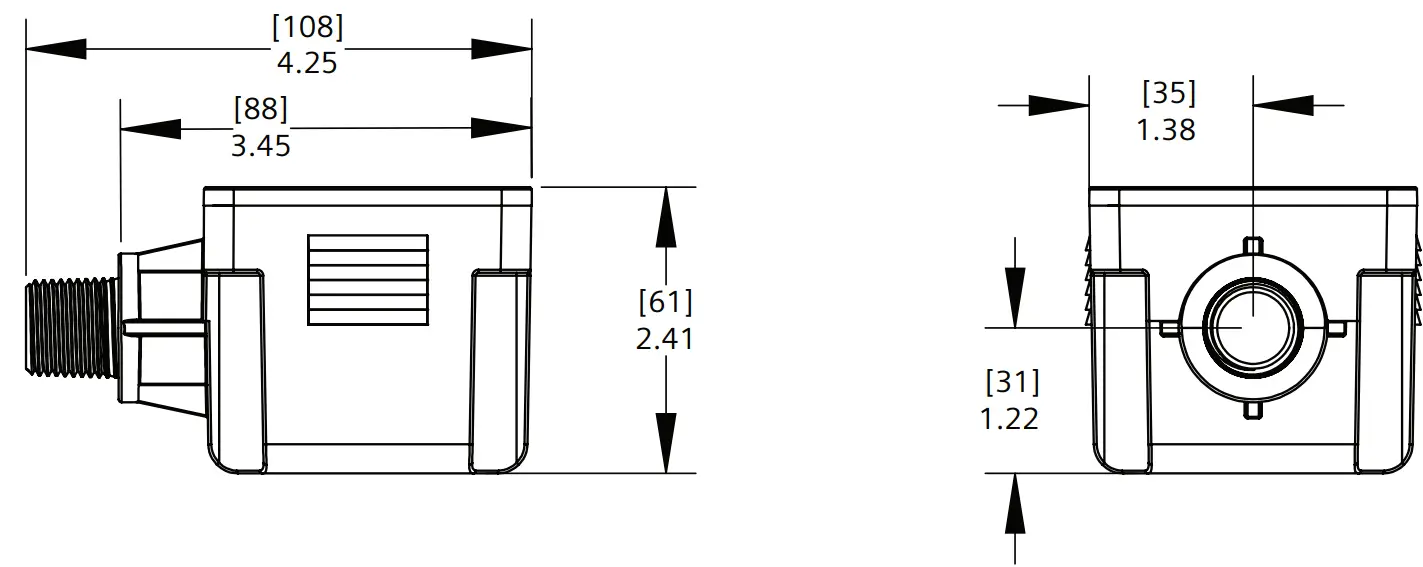

FSPD036 Product Diagram [in millimeters] and inches2.75
Size and Mechanical Specifications
| Dimensions | 4.25” x 2.41” x 2.75” |
| Weight | 0.46 lbs. |
| Enclosure Type | Polycarbonate NEMA 4X |
| Installation Type | Indoor/Outdoor |
| Mounting Method | Flush/Flange/Through-hole |

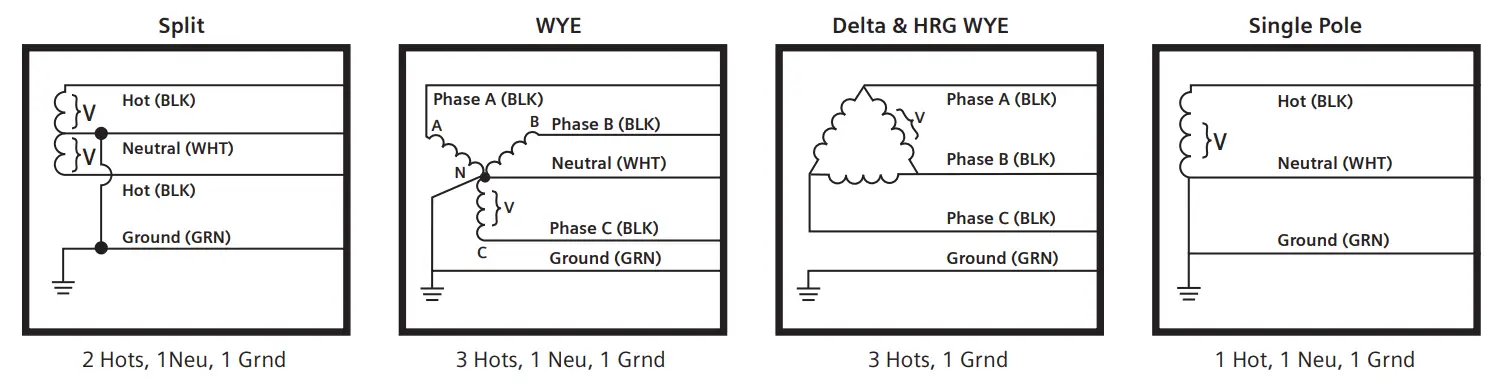

FSPD060, FSPD100, FSPD140 Wiring Configurations

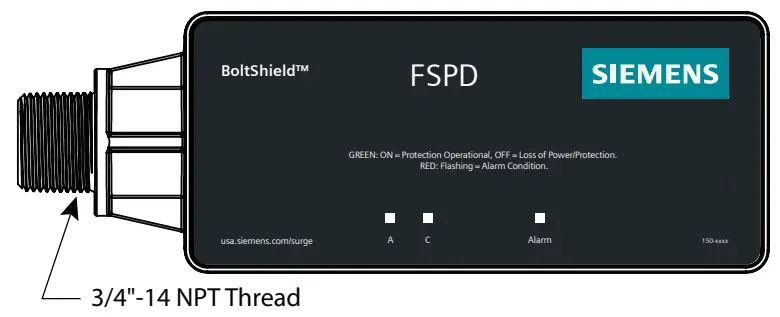

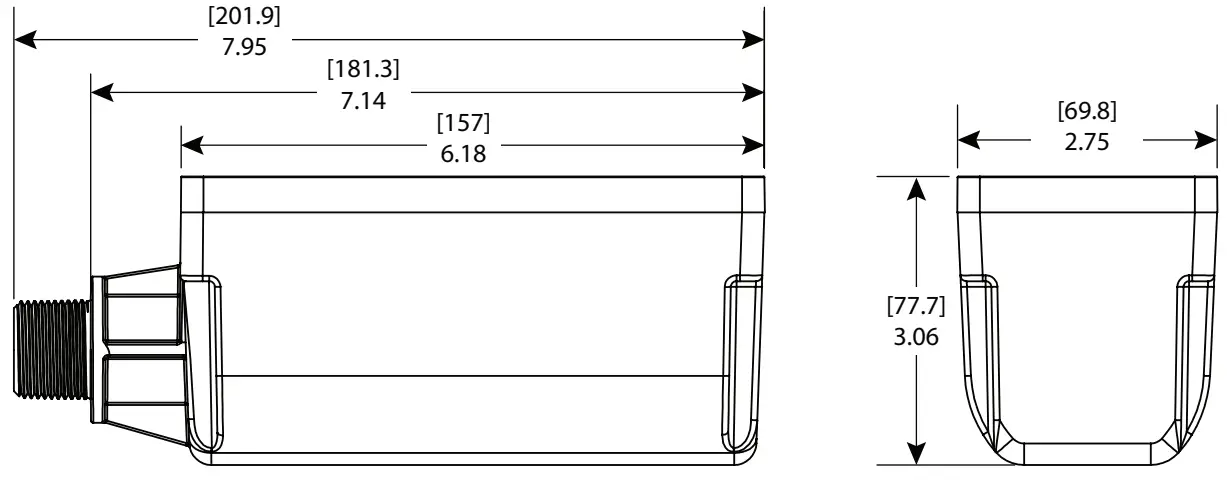

FSPD060, FSPD100, FSPD140 Product Diagram [in millimeters] and inches
Size and Mechanical Specifications
| Dimensions | 7.95” x 3.06” x 2.75” |
| Weight | 1.38 lbs. |
| Enclosure Type | Polycarbonate NEMA 4X |
| Installation Type | Indoor/Outdoor |
| Mounting Method | Flush/Flange/Through-hole |
Legal Manufacturer
Siemens Industry, Inc.
3617 Parkway Ln
Peachtree Corners, GA 30092
United States of America
Telephone: +1 (800) 333-7421
www.usa.siemens.com/surge
Order No. RPFL-FSPD-0223
© 08.2022, Siemens Industry, Inc.
This document contains a general description of available technical options only, and its effectiveness will be subject to specific variables including field conditions and project parameters. Siemens does not make representations, warranties, or assurances as to the accuracy or completeness of the content contained herein. Siemens reserves the right to modify the technology and product specifications in its sole discretion without advance notice.
