Ruko F11 GIM2 Drone with 4K Cmera User Guide
Safety instructions
Please read the instructions before flying and refer to the user manual for details.
Download the “RUKO DRONE” app.

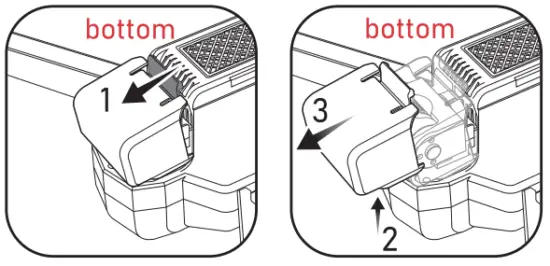

Go outdoor, place the drone in an flat and open space with a radius of more than 30ft. Always keep the GPS mode on, always keep the camera facing forward. Before take off please remove the gimbal cover gently to avoid causing damaging the camera.
- Open the gimbal cover buckle.
- Pull up the cover to unlock it, and then take it off gently. Replace the cover after flying, to protect the camera when not in use.
Flight preparation
Step 1: Turn on the controller
Power on the controller, lift up the antenna to receive signal.
Step 2: Turn on the drone
Remove the gimbal cover gently, place the drone on a level surface. power on the drone. All lights blinking red. Drone and remote controller connects successfully, all lights flashing white and blue then turn to flashing white and pink.
Note: This connect process takes around 40 seconds.
Step 3: Connect the app

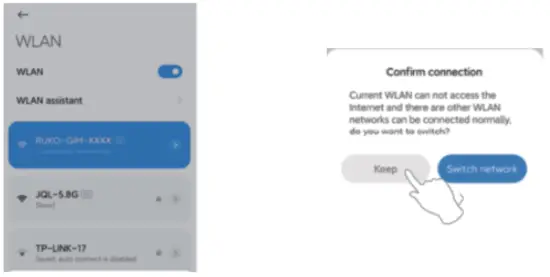

Open the phone’s WiFi list, connect the drone’s WiFi which names “RUKO-GIM-XXXX”, open the “RUKO DRONE” app.
Stpe 4: Complete Compass Calibration

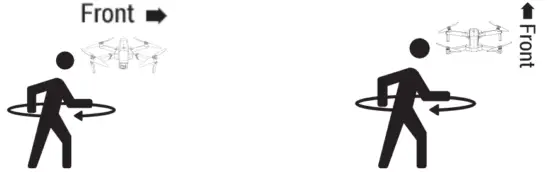

- Pick up the drone and hold it levelly, rotate the drone in one full circle (3601, until hear a “beep” sound reminder. Hold the drone vertically with camera facing to the sky, rotating a full circle (360°), there are two “beep” sound reminder.
- Put the drone back on a level surface, front and back lights turn to white and blue flashing.Once the lights switch to all solid, the drone is ready to fly. App drone status: Compass Calibration okay-waiting for GPS signal-ready to fly.
When it is needed to manually trigger the compass calibration to adapt to the enviroment, please push the joystick to 1 & 11 o’clock position, follow the above steps to rotate the drone. To trigger the Gyroscope Calibration, please push the joystick to 11 & 1 o’clock position, drone auto-complete the process.
Stpe 5: Start and Stop the Motors

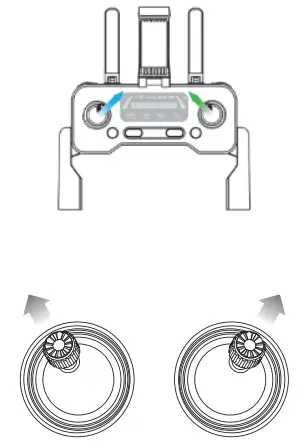

- Push the joysticks into 5 & 7 o’colock position, motors start.
- Push theThrottle Joystick up to get the drone take off, or you can press
in the app to take off. Push the joysticks into 5&7o’cotock position again, motors stop.
Note: The motors will stop running if no operation after 20 seconds.
in the app to take off. Push the joysticks into 5&7o’cotock position again, motors stop.
Step 6: 3 Ways to land the drone
- Press the RTH button
, drone will return to the Home Point. - Press the land button
on the app, the drone will land directly. - Keep pulling Throttle Joystick down until the drone lands and motors stop.
, drone will return to the Home Point.

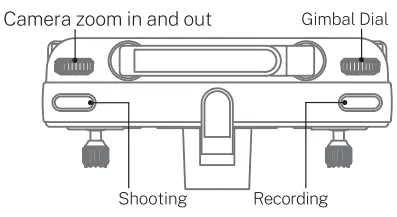

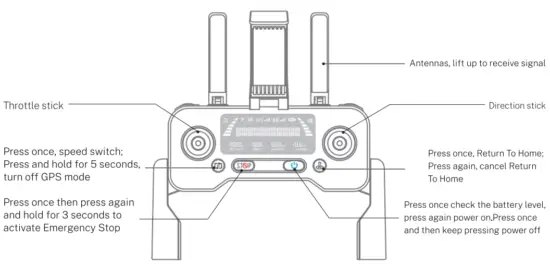

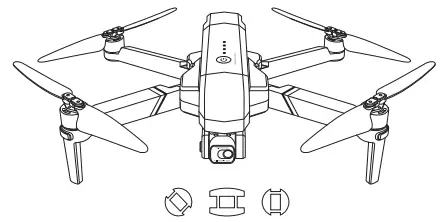

on the app, the drone will land directly.Product description
Common Problems and Solutions
| Questions | Reason | Solution |
| The motors don’t turn on | Weak GPS signal drone is not qualified to fly. | Take the drone to an outdoor open area. |
| The product has minor scraches | Every drone has been tested before shipping. | To ensure the quality, all drones have been tested before shipping. There might be slight inevitable blemishes for minor quantity, but it is guaranteed that all drones are 100% brand new. |
| Video freezes | There is interference around. | Fly the drone in an open area, to avoid tall structures, trees and the living areas with WIFI signal interference. |
| The WIFI didn’t stay connected. | Set the drone phone auto-connect with the drone’s WIFI “RUKO-GIM-X XXX X”. forget other network. | |
| App can’t display the drone camera | The phone isn’t connected to the drone’s WIFI. | Open the phone WIFI list connect the drone’s WIFI which names “RUKO-GIM-XXXXX”. |
| App access promission isn’t allowed | Re-install the app, allow all the app access permission required. | |
| The control signal was interupted | Lift up the remote controller antenna, point it to the drone. | |
| Phone setting blocks the connection. | Turn off VPN if there any. | |
| For Android phone, pay attention to the reminder when connecting the WWI, detail refer to manual | ||
| Some certain phones can’t connect with the drone. | ||
| Gimbal is not working | The drone was placed on an unlevel surface. | Place the drone to a level surface and restart. |
| The drone tilt angel too large caused it’s calibration been interupted. | ||
| Drone always move to left orright, can’t fly stabily Drone flies in circle and uncontrollable | Enviroment has impacted the drone compass. | Manually initiate the compass calibration, and fly in an open area |
| Low air flow interference. | Fly in a higher altitude. | |
| The app keep showing GPS signal weak | Neaby GPS signal is weak or there are interference around | Move to an open outdoor area to fly. |
| Drone flies wobblily | Propellers deformation. | Replace the propellers. |
| Response to remote control delayed | The control signal was interupted | Lift up the remote controller antenna, point it to the drone. |
| Fly in an outdoor enviroment without interference around. | ||
| Fly in a higher altitude to avoid other object’s interference. | ||
| Suddenly falls | The battery is loose and loses power. | Make the battery tight to ensure good contact. |
| Battery and Controller can’t be charged or takes a long time | The charger be used to charge is not compatible. | Use a charger which’s output currency is 5V/3A. |
| APP reminds distance limited | Max control distance limitation. | The drone reaches the max control distance. |
| The drone is in beginner mode. | Refer to manual to get the drone out of beginner mode. |
Contact us
If you have any questions about this product, please contact Ruko by sending a message to [email protected]
+1 (626) 215-4337( Available from 6 pm to 3 am)
