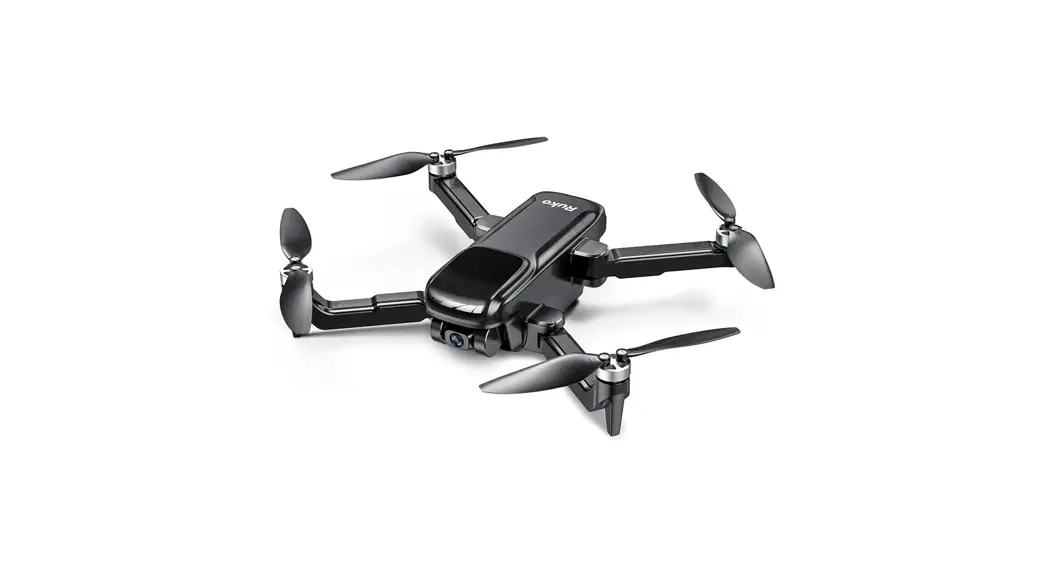

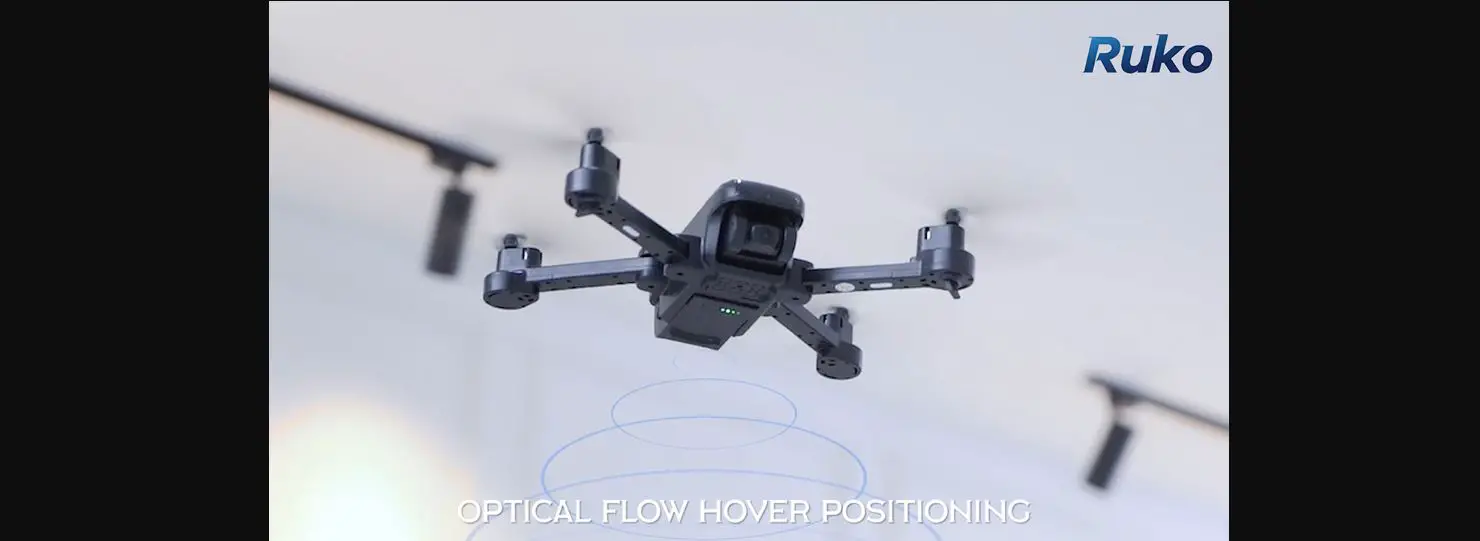

Ruko U11 Pro GPS Drone with 4K UHD Camera
Contents hide

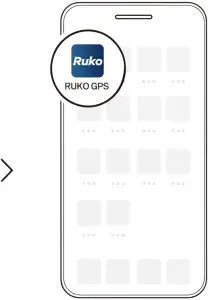

Download App
 |  |
 | |
 | |
 | |
 |

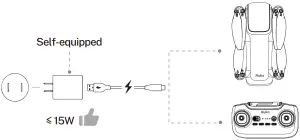

Charge the Batteries

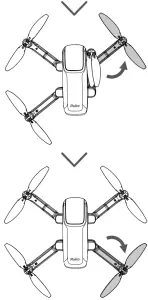

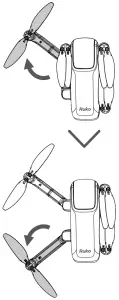

Unfold the antenna

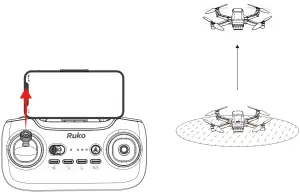

Install the phone holder

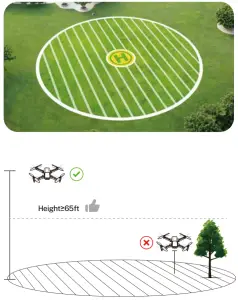

Select an Open Area
- Remove the sponge sheet, then install the battery.
- Press and hold the button until the Aircraft plays startup sound.
- Push the button to power on the Transmitter.

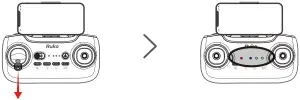

Pair the Transmitter with the Aircraft
- Push down the left stick and the remote controller plays a “beep” sound.
- Once successfully paired, only red light will stay on and blue light is flashing.

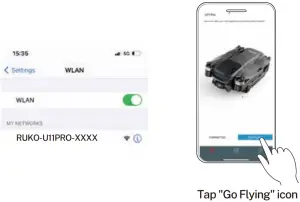

Connect to Wi-Fi
Connect the mobile device to the Aircraft’s Wi-Fi and enter the App operation page. Please refer to User Manual (page 25) for more details.

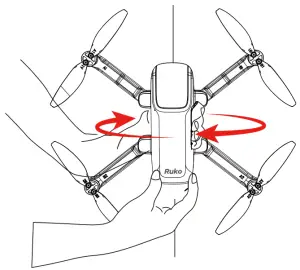

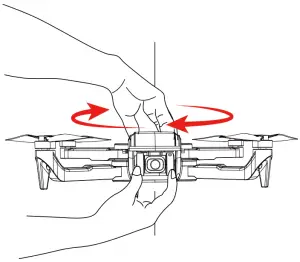

Calibrate the Compass
- Rotate the aircraft horizontally 360° until the controller plays a “beep” sound.
(About 3 turns)
- Rotate the aircraft vertically 360° the controller plays a “beep” sound .
(About 3 turns)
Calibrate the Gyroscope
- Push the right stick to 5 o’clock position until the controller plays a “beep” sound.
(About 2 seconds)

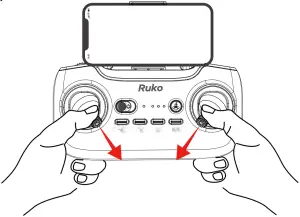

Start the Motors
- Push joysticks to 5 & 7 o’clock position.
(About 2 seconds)
Take off
- Push up the left joysticks.

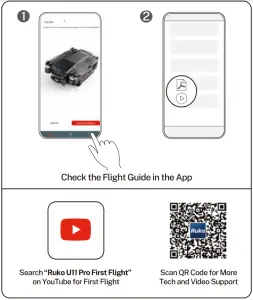

NEW TO FLYING DRONES?
CONTACT US FOR MORE TECH SUPPORT
[email protected]
(+1) 626-215-4337 ( Available from 6pm to 3am PST)
Common Problems and Solutions
Question | Reason | Solutions |
| Wi-Fi can’t be found or connected | Your phone doesn’t support dual-band Wi-Fi | Change to another phone which supports dual-band Wi-Fi |
| Your phone has a high-security system and treats it as unsafe Wi-Fi, refuse to connect | For android phones, please wait for seconds after connecting with the drone’ s Wi-Fi,if there is any, make sure your phone treats it as safe Wi-Fi to connect it. | |
| Wi-Fi still can’t find after turn on the power | The Wi-Fi connect speed depends on reaction speed of the phone, please try to refresh the page | |
| GPS signal can not be searched | The drone flies indoors (not recommended) | Recommend to fly the drone outdoors |
| There is signal interference around, such as tall buildings and trees | Go to the another open-air area to fly the drone | |
| Pictures and videos can not be saved in SD card | The card memory is full | Delete the contents of the SD card |
| Use other formats and unsuitable SD card | Format the memory card and select FAT32 as the file system at the same time | |
| Choose the SD card memory is 32G or less, and the speed is over Class 10 | ||
| The drone cannot return to home or drift | The GPS mode was turned off | Please check the GPS lights on remote control whether is off |
| Please check it whether has GPS signal notification of closing on APP | ||
| Turn on GPS mode when flying outdoors, Smart RTH and low battery RTH can be used | ||
| The drone can’t take off after unlocking | The compass is not calibrated correctly | Please operate compass calibrate again |
| Do not search GPS signals successfully | Please go to an open area to fly it | |
| Search GPS signal again | ||
| It does not switch to the indoor mode if you are indoor | Turn off GPS mode and switch to indoor mode(not recommended) | |
| Can’t take off after replacing propeller or flip over when taking off | The propellers are installed incorrectly | Please install the propellers according to the marks in the drone arm |
| The drone will rise automatically | The default altitude settings of Smart RTH and Low RTH is 20 meters | Notice: The drone will automatically rise to 20 meters to return and then land When below the default altitude |
| The drone flies unstablely | Fly the drone in a windy weather | Adjust to high-speed mode to fly the drone |
| The drone does not do a right calibration | Do not fly the drone under windy weather | |
| Put the drone horizontally on the ground first | ||
| Turned off GPS mode, Flying altitude was lower | Follow the steps of the User Manual to do the calibration | |
| Flight altitude greater than than 9 ft, less than 9 ft affected by air currents, It is ecommended to fly outdoors in GPS mode with good GPS signal | ||
| There is no picture on the APP | It does not connect to the Wi-Fi successfully | Connect to Wi-Fi Successfully, complete network settings (Refer to page 3 of DISCLAIMER & SAFETY GUIDELINES) |
| Image transmission got stuck | There has signal interference in the flight environment | It is recommended to fly in an open area with little wireless signal interference |
| The device runs too many programs to reduce the performance of the mobile device Signal direction is not aligned | Close other running program of the mobile device to get the best performance of the mobile device |
