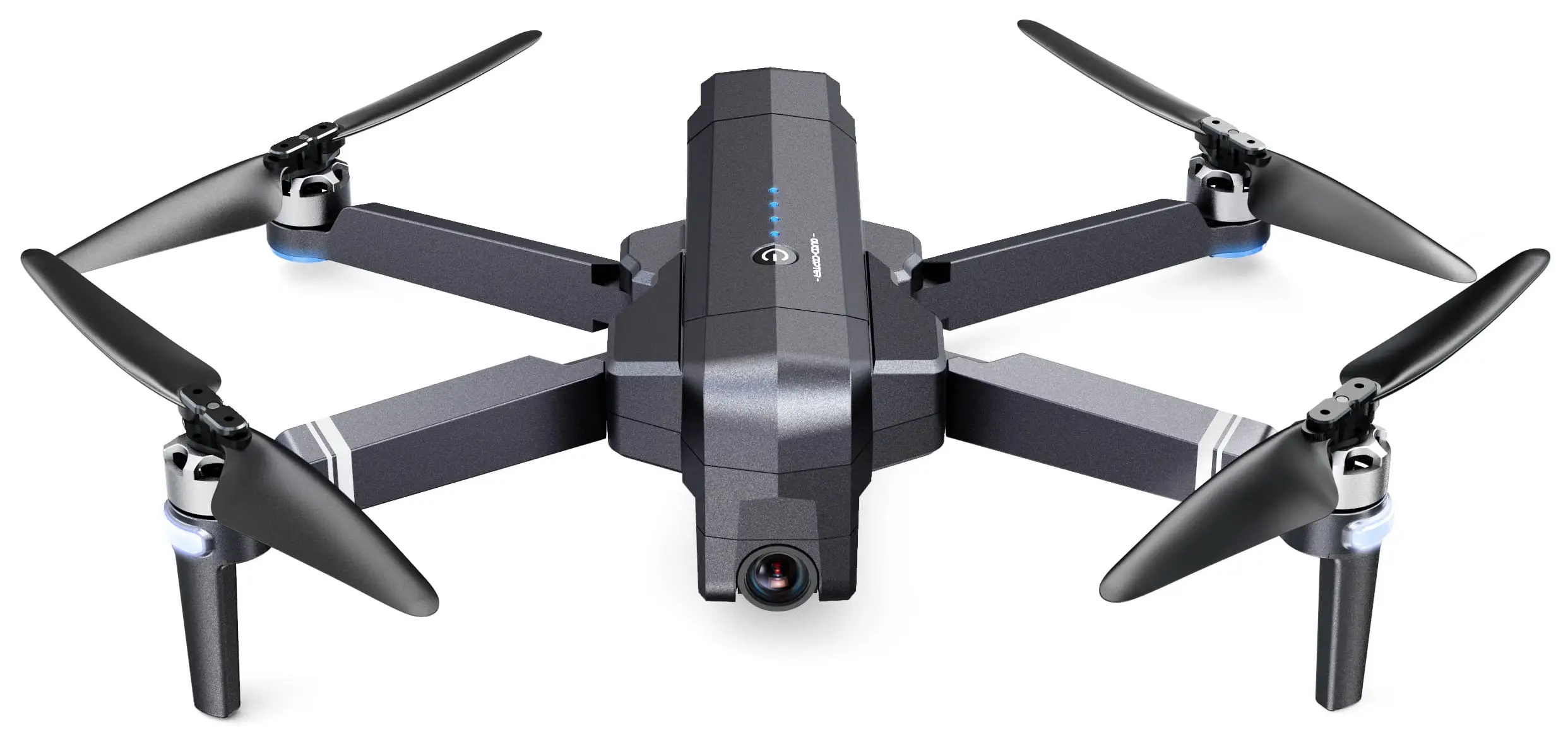

Ruko F11PRO Drones Camera

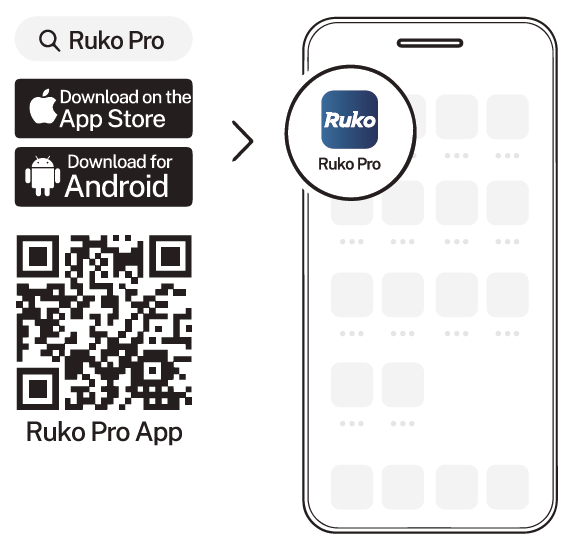

Download App

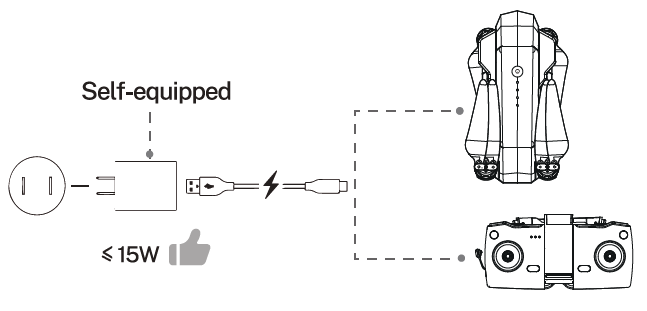

Charge the Batteries

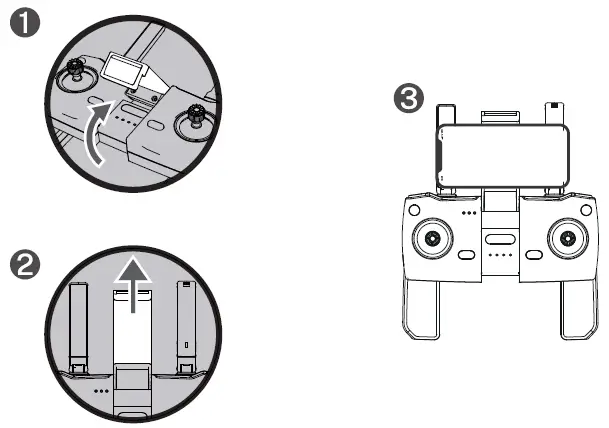

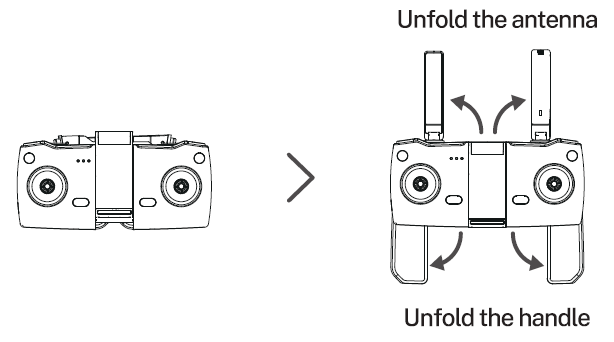

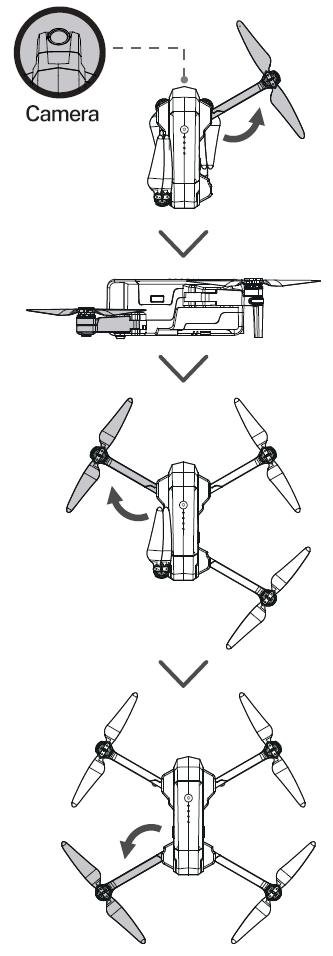

Unfold the Arms

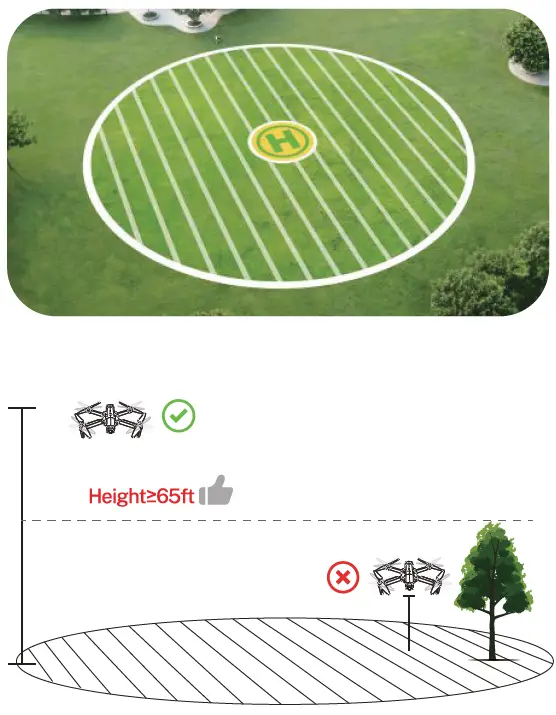

Select an Open Flight

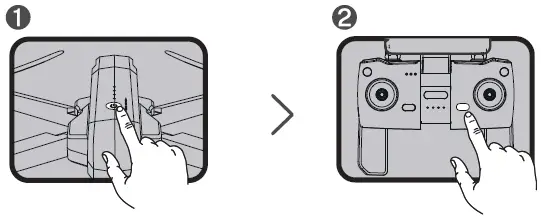

- Press and hold the button until the Aircraft plays startup sound.
- Short-press to power on the Transmitter.

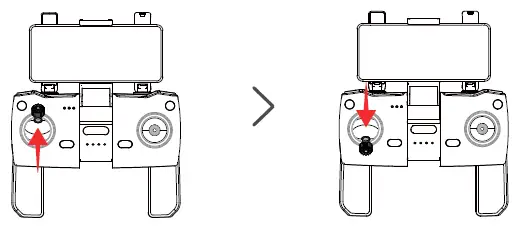

Pair the Transmitter with the Aircraft
- Push up the left stick and the Transmitter plays a sound “di”.
- Push down the left stick and the Transmitter plays another sound “di”.
Once successfully paired, white light will stay on.

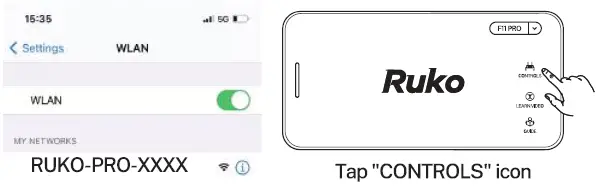

Connect to Wi-Fi
Connect the mobile device to the Aircraft’s Wi-Fi and enter the App operation page. Please refer to User Manual (page 36) for more details.
Calibrate the Compass
- Rotate the aircraft horizontally 360°. ( About 1-2 turns)
- Rotate the aircraft vertically 360°. ( About 1-2 turns)

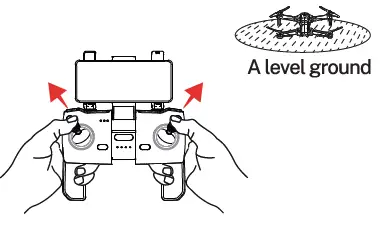

Calibrate the Gyroscope
- Push joysticks to 11 & 1 o’clock position.( About 2 seconds)
Start the Motors
- Push joysticks to 5 & 7 o’clock position. ( About 2 seconds)

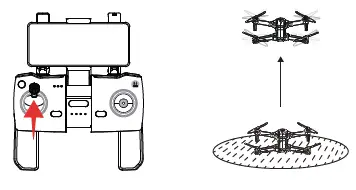

Takeoff
Push up the left stick or press the “Auto Takeoff” button.
NEW TO FLYING DRONES
CONTACT US FOR MORE TECH SUPPORT
Printed in China.
Common Problems and Solutions
| Question | Reason | Solutions |
|
The motors cannot be started | Weak GPS signal | Turn on the Aircraft in an open area with strong GPS signal |
| The red light stays on | The Aircraft has low battery. Please charge the battery in time | |
| The pink light stays on | The compass is not calibrated. Please refer to the “Calibration Before Flight” section of the user manual | |
| The left and right joysticks are not in place | Push the left and right joysticks simultaneously to 5 o’clock and 7 o’clock for 2 seconds | |
|
Unstable flight | Flying too low, affected by Aircraft airflow | Please fly the Aircraft above 9.84ft(3 meters) |
|
The gyroscope is not calibrated | Place the Aircraft on a horizontal surface and conduct gyroscope/horizon- tal calibration. Please refer to the “Calibration Before Flight” section of the user manual | |
| The propellers become deformed and incomplete | Replace the propellers with new ones | |
| GPS signal is unstable. Flying near buildings and in obstructed places | Please fly the Aircraft in an open area free of obstacles within the circle of radius 32.81 ft(10 meters) | |
|
The product has slight marks |
We tested all Aircraft before shipping | In order to give you the best experience, we tested functions of all Aircraft before shipping. Therefore, it is inevitable that there will be slight traces. However, it can be guaranteed that all Aircraft are 100% brand new |
|
Out of control. spinning around on its own, abnormal sound | The Transmitter signal is interfered or the Aircraft exceeds the range of remote control | Please fly the Aircraft outdoors without interfer ence. and ensure that it is within a controllable range |
| Compass interfer ence | Please manually land the drone in time and calibrate the compass. Please make sure to fly away from the buildings, trees, power lines, and signal towers | |
| The propellers become deformed and incomplete | Replace the propellers with new ones | |
|
The camera is tilted/Gimbal is not working/ Can’t adjust the camera angle | The drone was placed on an unlevel surface such as grass and sand and so on | Place the drone on landing pad or cardboard horizontally, and ensure a gap between the camera and the surface |
| The drone was placed on the surface which transfer samll vibration, such as hollow wooden floor, desk and so on | Place the drone on a solid level ground | |
| Keep touching the camera and g mbal or holding the drone before all set | Never touch the camera when the power is on, place the drone on a level ground until the gimbal complete self-check | |
| The compass is in calibrating | After complete the compass calibration, place the drone on a level ground | |
|
Short battery life | I Flying in windy weather | Flying in windy weather will accelerate power loss |
| Flying in cold weather | In low temperatures. the chemical reaction of the lithium battery is slowed down and the energy cannot be fully released | |
| The battery is not fully charged | Fully charged with the correct USB charger before flying |
|
Video freezes, image transmission distance is short | The Aircraft is out of Wi-Fi range | Fly the Aircraft within the range of the Wi-Fi |
| WiFi image transmission signal interference | Fly the Aircraft in an unobstructed open area free of buildings, high-voltage wires and signal towers | |
| The transmitter and the . phone are not mobile at the pointed direction of the drone | Point the Transmitter and the mobile device at the flying direction of the Aircraft to . . . maintain the strongest signal connection | |
| Phone performance freezes | Close unused apps running in the background to maintain the best performance of the phone | |
| Video is not clear | if use APP storage, the pixels are 192Qx72QP | Insert the memory card and store the video on the memory card |
|
App does not show what the drone’s camera is taking | The phone is not connected to the drone’s Wi-Fi | Connect the drone’s Wi-Fi: Ruko-GIM-****** on the phone |
| The phone operating system version is too low | The required device opera! ng system to work with the app is Android 6.0 and above, IOS 10.02 and above | |
| Certain phones’ setting prevent the app from working normally | Set the phone to airplane mode | |
| The VPN app blocks the connection between the phone and the drone | Turn off the VPN | |
| Didn’t keep the drone’s network when trying to connect the drone’s WiFi | Please do keep the drone’s W1F1 connected when the P,ho_ne pop-up reminder that This network has no internet access |
| APP crashes or functions abnormally | Wrong app downloaded | Download the correct App |
| A few mobile phone versions are old and incompatible with APP | Provide mobile phone version and model, we will adapt and solve it | |
| Phone cannot connect to the drone’s Wi-Fi | It will take longer time for certain phone to connect with the drone’s Wi-Fi for the first time | Try several times or restart the phone |
| The drone’s WiFi name is not displayed in the list | WiFi has not been activated | The WiFi will be available when the drone and the transmitter connected, which take around 40 seconds |
|
GPS signal is weak | Turning on the drone indoors | GPS signals cannot be found indoors. Please search for GPS signals in an open place outdoors |
| Under the tree, next to the building, in an obstructed place | Please stay away from obstacles for more than 32.81 feet(10 meters), and search for GPS signals in an open area | |
| Unable to return home, drifting and flying away | GPS signal was turned off during the flight | Please don’t turn off GPS suddenly during outdoor flights. Switch back to GPS mode in time |
|
Cannot charge battery/Cannot fully charge the battery | Using an inferior charger or charging the computer w th unstable voltage output | Use a mobile USB charger that ensures constant stable voltage output(5V) and amperage output(2-3A) |
| Using inferior charging cables | Please use the original factory charging cable to charge |
Ruka Tech Support
https://rukotoy.com/support-drones.
This User Manual is subject to change without notice.
- You can check the recently updated version of the “User Manual” on Ruko’s official website https://rukotoy.com/support-drones.
- If you have any questions or suggestions about the User Manual, please contact us via the following email: [email protected].
- Ruka is a trademark of Shenzhen Ruike Innovation Technology Co., Ltd Copyright 2022 Ruka All Rights Reserved.
