Z5i
MINI-ITX CASE
User Guide
| Product Specifications | |
| Model | Z5i |
| Part Number | GC-MKGW1-Z5I |
| Dimensions (DxWxH) | 307.5 x 190 x 417.5mm |
| Motherboard Compatibility | Mini-ITX |
| Power Supply Compatibility | SFX |
| 2.5″ Drive Bay | 2 |
| 2.5’73.5″ Drive Bay (Convertible) | 1 |
| Front Panel Ports | 2x USB 3.0 lx USB 3.1 Type-C |
| Max GPU Length | ≤330mm ≤230mm (w/ HDD) |
| Max GPU Slot Size | 3x PCIe |
| Max CPU Cooler Height | ≤7Omm |
| Side Panels | 4mm Tempered Glass |
| Warranty | 2 Years |
| Cooling Compatibility | |
| Fans | (Rear) 2x 120mm / 140mm |
| A10 / Radiator | (Rear) 240mm / 280mm |
| Package Contents | |
| Z5i Mini-ITX Case PCIe 3.0 Extension Cable Accessory Pack User Guide | |
Accessory Pack Contents

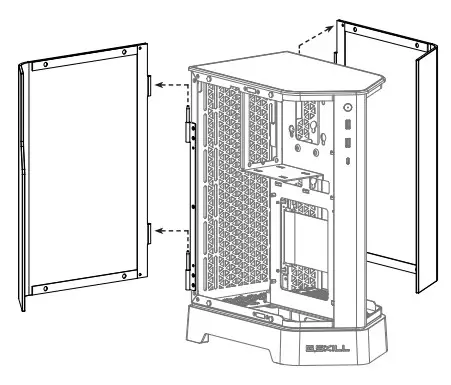

Removing Side Panels

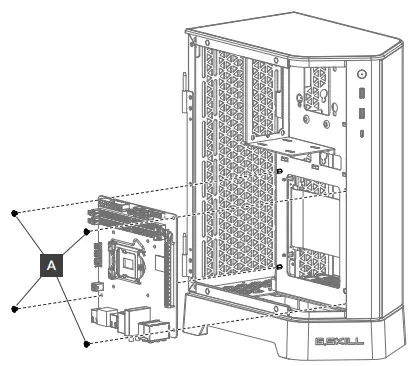

Installing the Motherboard

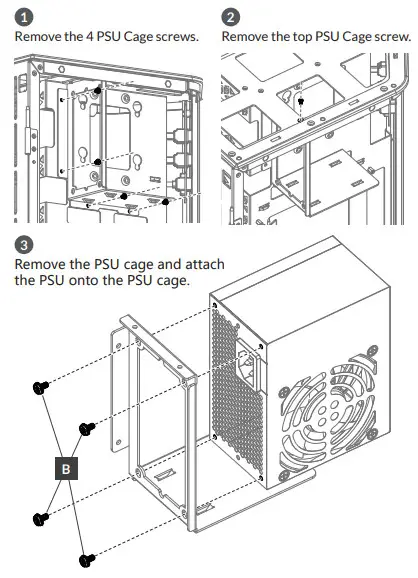

Installing PSU
Installing SSDs

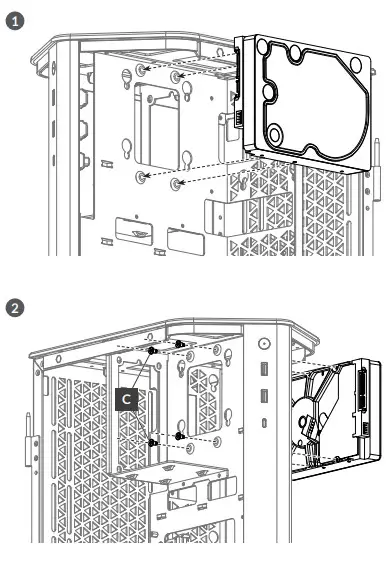

Installing HDD

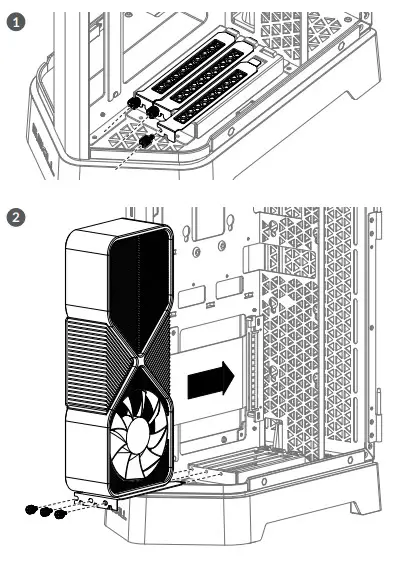

Installing the GPU

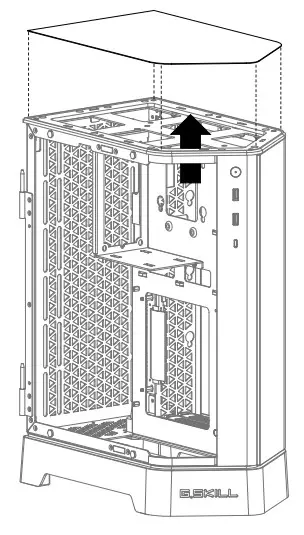

Removing Top Dust Filter
Push from the bottom to detach the dust filter.

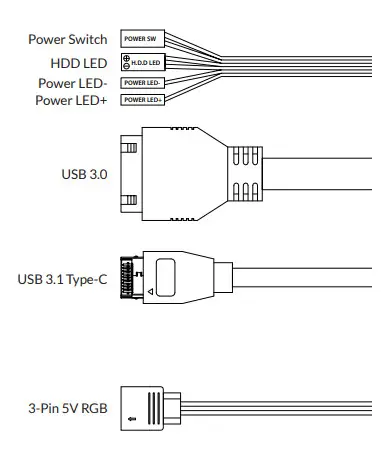

Connectors
Refer to your motherboard manual for the front panel and 3-pin 5V RGB header locations and pin-outs.
Technical Support
International: [email protected]
North/South America: [email protected]
Europe: [email protected]
Copyright © 2021 G.SKILL International Enterprise Co., Ltd. All rights reserved.
G.SKILL logo is a registered trademark in the United States and/or other countries. All other trademarks are the
property of their respective owners.
