systemair VKK-200 Horizontal Ducts Back Draft Damper Instructions
Description

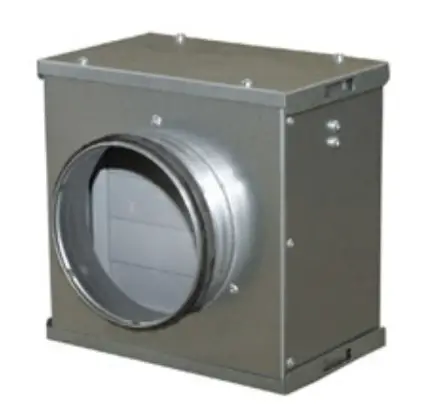

Back draft damper for installation in horizontal ducts. The profiled vanes produce a strong upward force which reduces the air resistance. This means that the vanes opens fully at low air velocities as well. The box is manufactured from galvanised sheet steel. The damper inside the box is manufactured in weather-resistant and shock-proof nylon material. The robust construction ensures that the vanes will not become deformed or loose. Air velocity should not exceed 12 m/s.

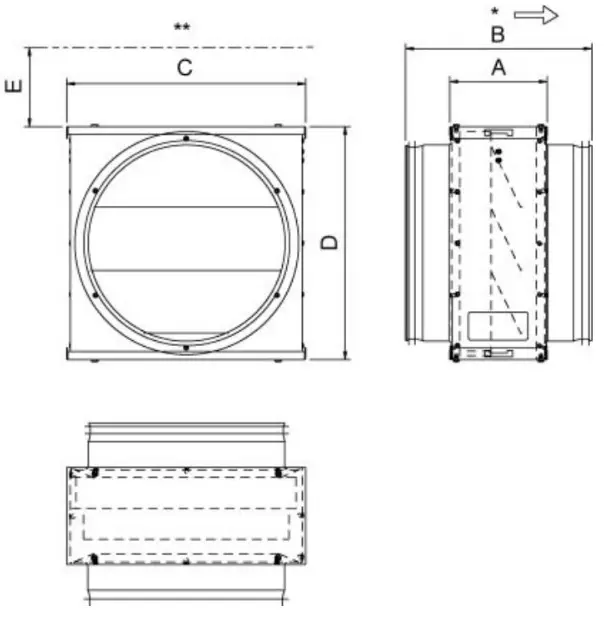

Dimensions
| 0 | A | B | C | D | E | |
| VKK 100 | 100 | 123 | 199 | 205 | 200 | 201 |
| VKK 125 | 125 | 123 | 199 | 205 | 200 | 201 |
| VKK 160 | 160 | 123 | 199 | 205 | 200 | 201 |
| VKK 200 | 200 | 123 | 199 | 302 | 300 | 297 |
| VKK 250 | 250 | 123 | 239 | 302 | 300 | 297 |
| VKK 315 | 315 | 123 | 239 | 350 | 345 | 345 |
| VKK 400 | 400 | 123 | 259 | 454 | 450 | 450 |
* Airflow
** Free area
Name: VKK-125 BACK DRAFT DAMPER | Item no.: 1624
Document type: Product card | Document date: 2019-05-15 | Generated by: Online catalogue

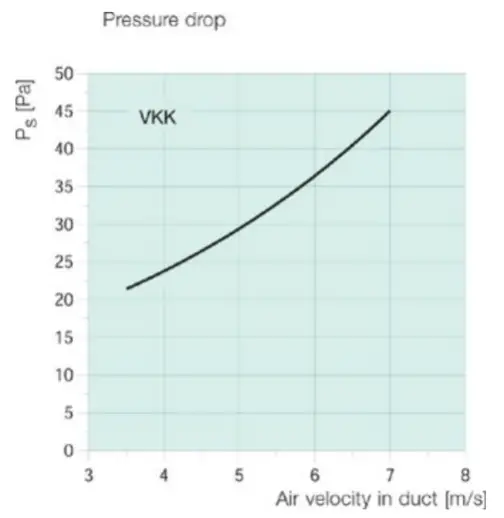

Diagram
