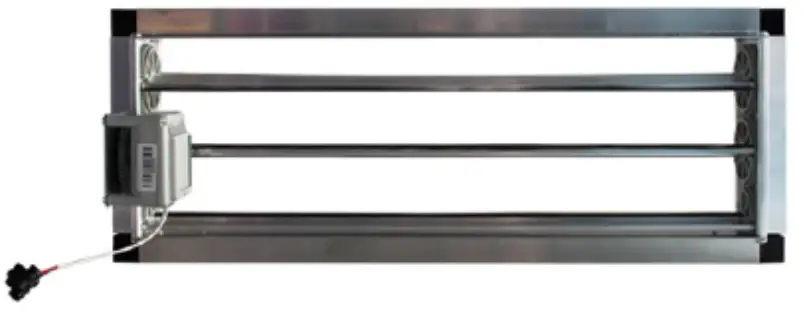

AIRZONE CPRC Motorized Rectangular Duct Damper -

Contents hide

1 MOTORIZED RECTANGULAR DUCT DAMPER

2 COMPATIBLE ACCESSORIES

3 INSTALLATION

4 Documents / Resources

5 Related Posts

MOTORIZED RECTANGULAR DUCT DAMPER

This Airzone motorized element, when inserted in a rectangular air distribution duct, controls the airflow to the zone it serves, by regulating the opening and closing of its row of motorized slats, depending on the thermal demand of the zone to be heated or cooled.
Made of aluminum, it has a PVC sealing rubber.

PVC souple.

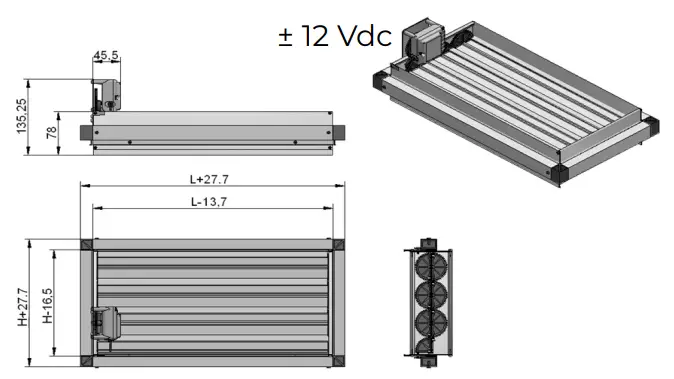

AIRZONE CPRC Motorized Rectangular Duct Damper - DUCT DAMPER

COMPATIBLE ACCESSORIES

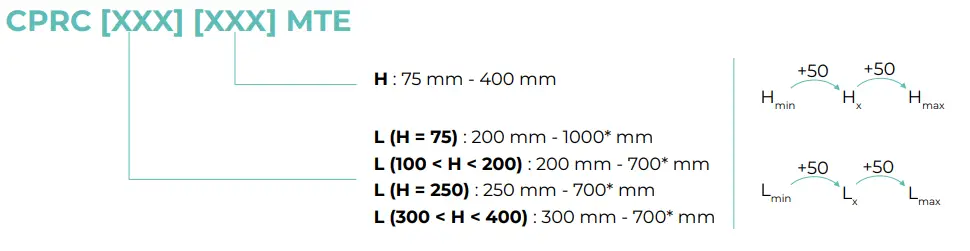

AIRZONE CPRC Motorized Rectangular Duct Damper - DUCT DAMPER1

EJ. CPRC [010020] MTE

CPRC 100 x 200 mm motorized damper

*For larger sizes (>700 mm), combinations of dampers will be supplied.

Motor / Moteur

L (mm)

Ak (m 2 )	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000
75	0.01	0.02	0.02	0.02	0.03	0.03	0.03	0.03	0.04	0.04	0.04	0.05	0.05	0.05	0.05	0.06
100	0.02	0.02	0.03	0.03	0.04	0.04	0.04	0.05	0.05	0.06
150	0.03	0.04	0.04	0.05	0.06	0.06	0.07	0.08	0.08	0.09
200	0.04	0.05	0.06	0.07	0.08	0.09	0.10	0.11	0.12	0.13
250	0.06	0.07	0.08	0.09	0.10	0.11	0.13	0.14	0.15	0.16
300		0.08	0.10	0.11	0.12	0.14	0.15	0.17	0.18	0.19
350		0.10	0.11	0.13	0.15	0.16	0.18	0.20	0.21	0.23
400		0.11	0.13	0.15	0.17	0.19	0.21	0.22	0.24	0.26

Ak : effective area

v (m/s)

Ak (m2)	2.5		5.0		7.5
Ak (m2)	Q (m3/h)	ΔP (Pa)	Q (m3/h)	ΔP (Pa)	Q (m3/h)	ΔP (Pa)
0.01	90	5.62	180	22.49	270	50.60
0.02	180	3.76	360	15.04	540	33.85
0.03	270	2.97	540	11.89	810	26.76
0.04	360	2.52	720	10.07	1080	22.65
0.05	450	2.21	900	8.85	1350	19.90
0.06	540	1.99	1080	7.96	1620	17.91
0.07	630	1.82	1260	7.28	1890	16.38
0.08	720	1.69	1440	6.74	2160	15.17
0.09	810	1.57	1620	6.30	2430	14.17
0.10	900	1.48	1800	5.93	2700	13.34
0.11	990	1.40	1980	5.61	2970	12.63
0.12	1080	1.34	2160	5.34	3240	12.02
0.13	1170	1.28	2340	5.10	3510	11.48
0.14	1260	1.22	2520	4.89	3780	11.01
0.15	1350	1.18	2700	4.70	4050	10.58
0.16	1440	1.13	2880	4.54	4320	10.21
0.17	1530	1.10	3060	4.39	4590	9.87
0.18	1620	1.06	3240	4.25	4860	9.56
0.19	1710	1.03	3420	4.12	5130	9.28
0.20	1800	1.00	3600	4.01	5400	9.02
0.21	1890	0.98	3780	3.90	5670	8.78
0.22	1980	0.95	3960	3.81	5940	8.56
0.23	2070	0.93	4140	3.72	6210	8.36
0.24	2160	0.91	4320	3.63	6480	8.18
0.25	2250	0.89	4500	3.56	6750	8.00
0.26	2340	0.87	4680	3.49	7020	7.84

INSTALLATION

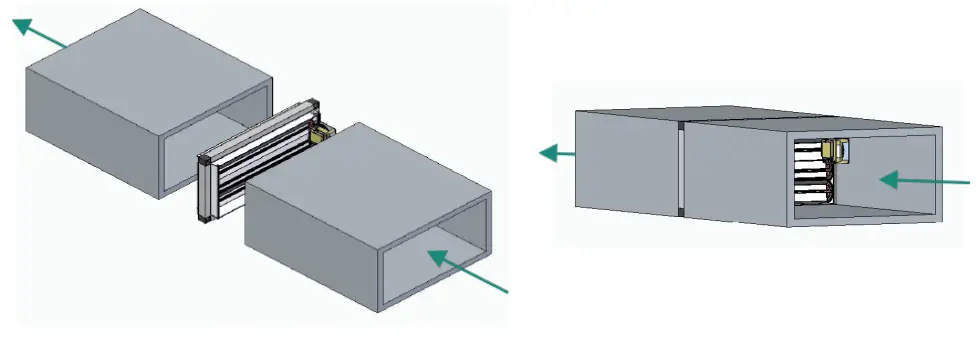

Insert the damper between two duct sections to regulate the airflow to the zone. Position the damper as shown in the diagram taking into account the direction of airflow.

AIRZONE CPRC Motorized Rectangular Duct Damper - DUCT DAMPER2
