929003055601 Hue Cher Ceiling Light
Warnings
Always make sure the luminaire is detached from the mains socket
Always make sure the DC cable is detached from the power supply
Staring at the operating light source may cause eye injury
| # | Disassemble/dismantle steps | Tools needed |
| a | Remove the diffuser (1) by pulling. | – |
| b | Disconnect the earthing wire from the reflector (9 )by loosening the screw | CROSSHEAD SCREWDRIVER PZ |
| C | Remove the reflector (9) from the base (12) by unscrewing screws (7) | TORXHEAD SCREW DRIVER no |
| d | Remove flat cable from the LIGHT SOURCE – LED STRIP [2] and LIGHT SOURCE – HUE CONNECT [6] | – |
| e | Remove low voltage wires of LIGHT SOURCE – HUE CONNECT (6) | FLATHEAD SCREWDRIVER OR WAGO TOOL #2065 |
| f | Remove wires out of the terminal blocks (10) | FLATHEAD SCREWDRIVER |
| g | Remove the CONTROL GEAR- PSU (4) from the reflector (9) by unscrewing screws (3) | TORXHEAD SCREW DRIVER no |
| h | Remove the LIGHT SOURCE – HUE CONNECT (6) from the reflector (9) by unscrewing screws (5) | TORXHEAD SCREW DRIVER no |
| i | Remove light strip (2) acc. to instruction: 442295215544 L2 Removal and Test Instruction Flex LED strip | See instruction. |
| SKU | Color | Country |
| 929003055601 | BLACK | EU |

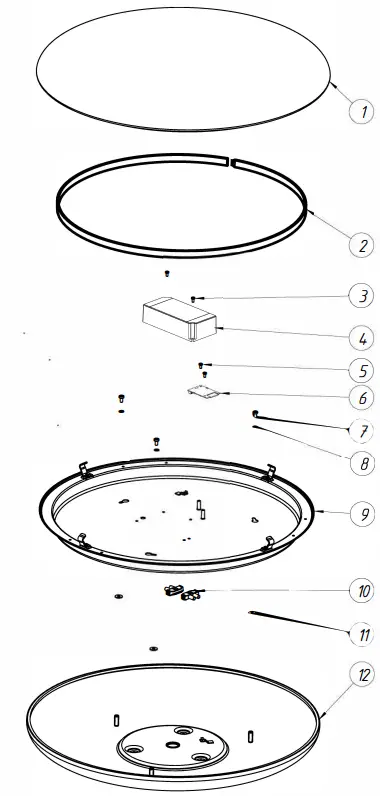

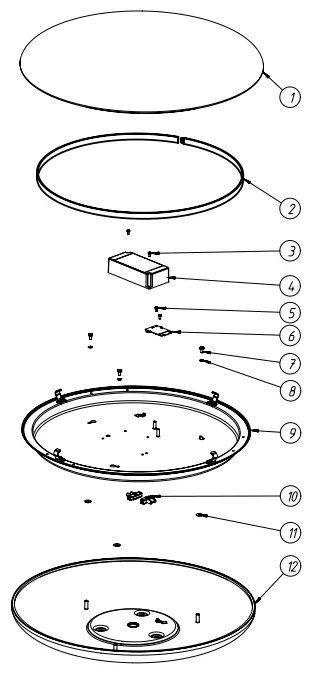

| # | COMPONENT | QTY |
| 1 | DIFFUSER | 1 |
| 2 | LIGHT SOURCE – LED STRIP | 1 |
| 3 | SCREW | 2 |
| 4 | CONTROL GEAR – PSU | 1 |
| 5 | SCREW | 2 |
| 6 | LIGHT SOURCE – HUE CONNECT | 1 |
| 7 | SCREW | 3 |
| 8 | WASHER | 3 |
| 9 | REFLECTOR | 1 |
| 10 | TERMINAL BLOCK | 2 |
| 11 | WASHER | 3 |
| 12 | BASE | 1 |
