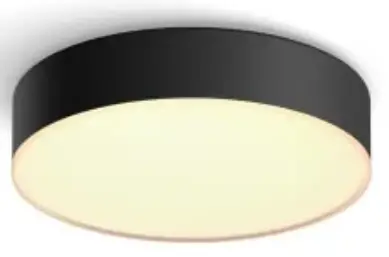

PHILIPS 4115830P6 Hue LED Ceiling Light
Warnings
Always make sure the luminaire is detached from the mains socket Always make sure the DC cable is detached from the power supply Staring at the operating light source may cause eye injury

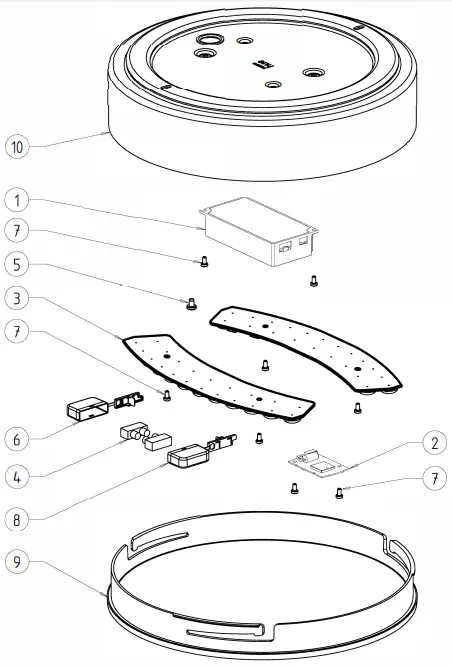

PRODUCT OVERVIEWS
| # | Disassemble/dismantle steps | Tools needed |
| A | Rotate the diffuser [9] by hand counter clockwise until it unsnap.Lift the diffuser up to remove it from the base [10] | – |
| b | Remove terminal block [4] by unscrewing wires of the control gear – psu [1],remove cover N [6] and cover L [8] | FLATHEAD SCREWDRIVER |
| C | Remove low voltage wires of Control gear – psu [1] from Light source – hue connect [2] | _ |
| D | Unplug wires from light source-hue connect [2 | FLATEHEAD SCREWDRIVER OR WAGO TOOL #2065 |
| E | Unplug wires from light source-led modules [3] | WAGO TOOL #2060 |
| F | Unscrew 2 screws [7] and remove light source-hue connect [2 | TORXHEAD SCREW DRIVER no |
| G | Unscrew 2 screws [7] and remove light source-led modules [3] | TORXHEAD SCREW DRIVER no |
| H | Unscrew 2 screws [7] and remove light Control gear – psu [l] | TORXHEAD SCREW DRIVER no |
| I | Unscrew and remove 1 screw [5] | CROSS HEAD SCREWDRIVER PZ |
| # 1 | COMPONENT Control gear – psu | QTY 1 |
| 2 3 | Light source – hue connect Light source -led module | 1 2 |
| 4 | Terminal block | 2 |
| 5 | Screw | 1 |
| 6 | Cover N | 1 |
| 7 | Screws | 8 |
| 8 | Cover L | 1 |
| 9 | Diffuser | 1 |
| 10 | Base | 1 |
| SKU 9150059964 | Color 01 White | Country EU/UK |
| 9150059965 | 01 Black | EU/UK |
| STATUS | DESCRIPTION | DESIGN ID 01 | 2021-06-1 |
| Enrave S ceiling lamp white/black lxlOW 24V,Disassembly instruction | DOC 12NC | ||
| NAME Pa Ku | LOCAL PART ID | SH. 1 A3-L | |
| CHECKED | DATE 2021-06-11 |
