VKK-100 BACK DRAFT DAMPER
Item no. 1623
Document type: Product card
Document date: 2019-05-15
Generated by: Systemair Online Catalogue
Description

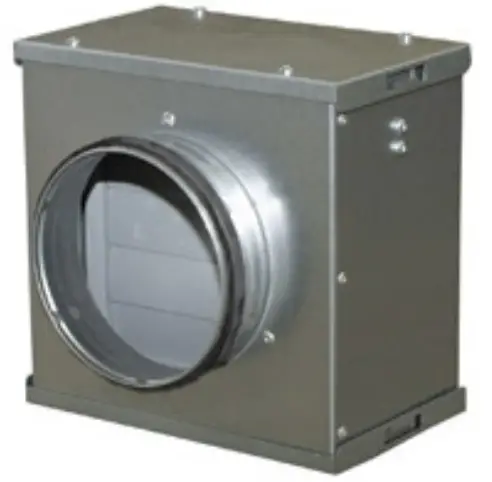

Back draft damper for installation in horizontal ducts. The profiled vanes produce a strong upward force which reduces the air resistance. This means that the vanes opens fully at low air velocities as well. The box is manufactured from galvanised sheet steel. The damper inside the box is manufactured in weather-resistant and shock-proof nylon material. The robust construction ensures that the vanes will not become deformed or loose. Air velocity should not exceed 12 m/s.

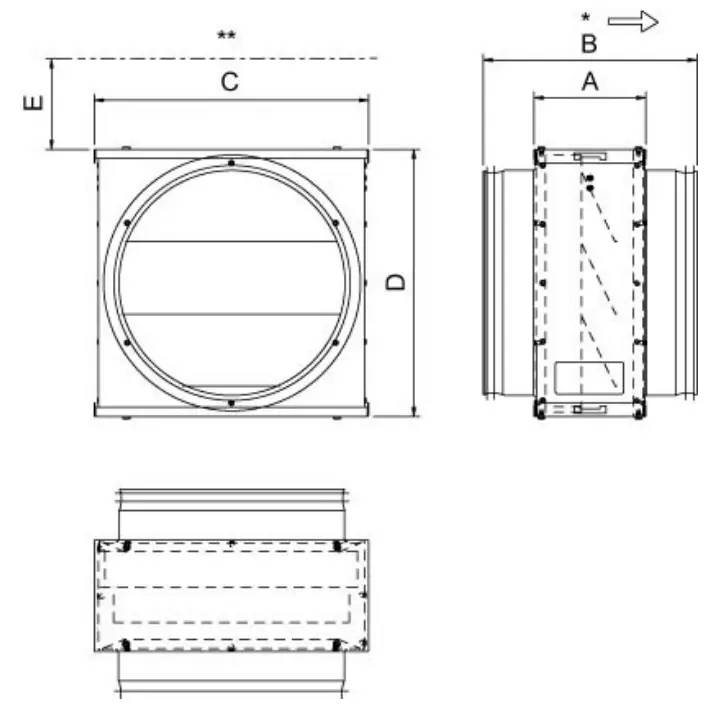

Dimensions
| 0 | A | B | C | D | E | ||
| VKK | 100 | 100 | 123 | 199 | 205 | 200 | 201 |
| VKK | 125 | 125 | 123 | 199 | 205 | 200 | 201 |
| VKK | 160 | 160 | 123 | 199 | 205 | 200 | 201 |
| VKK | 200 | 200 | 123 | 199 | 302 | 300 | 297 |
| VKK | 250 | 250 | 123 | 239 | 302 | 300 | 297 |
| VKK | 315 | 315 | 123 | 239 | 350 | 345 | 345 |
| VKK | 400 | 400 | 123 | 259 | 454 | 450 | 450 |
* Airflow
** Free area

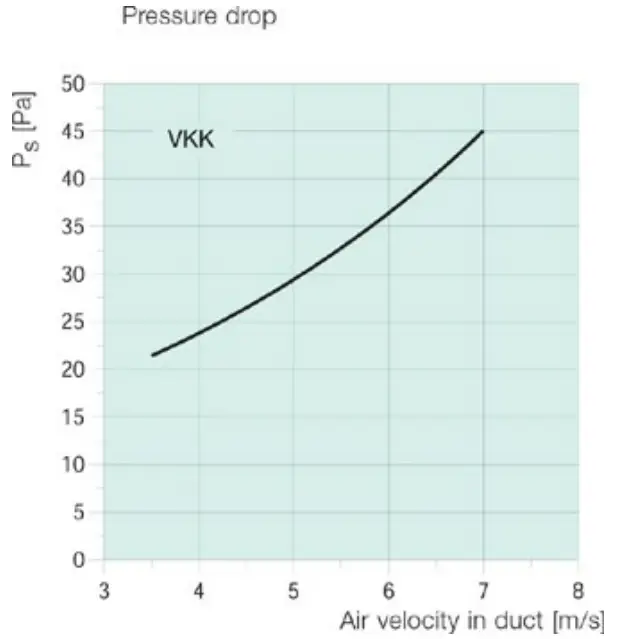

Diagram
Name: VKK-100 BACK DRAFT DAMPER
Item no.: 1623 Document type: Product card
Document date: 2019-05-15
Generated by: Online catalogue
