Champion 92001i-df-eu Dual Fuel Inverter Generator User Guide

CHAMPION 92001I-DF-EU Dual Fuel Inverter Generator User Guide

Installation

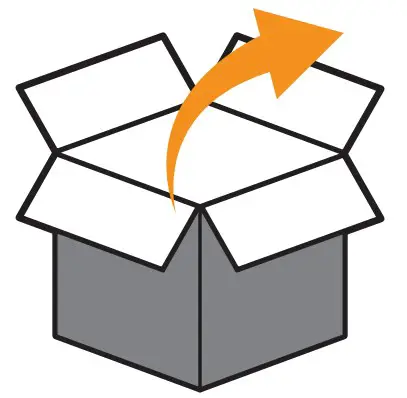

1. Open shipping carton. Assembly > Unboxing.

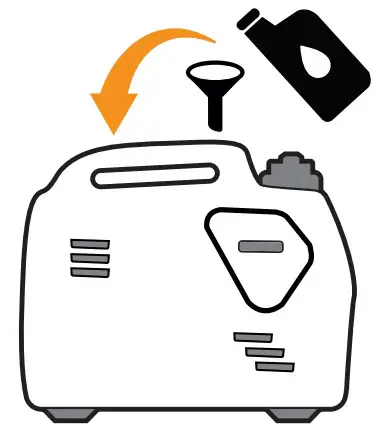

2. Add oil.  Assembly > Add Engine Oil .Add Engine Oil Recommended: 10W-30, up to 20.3 fl. oz. (600 ml) DO NOT overfill

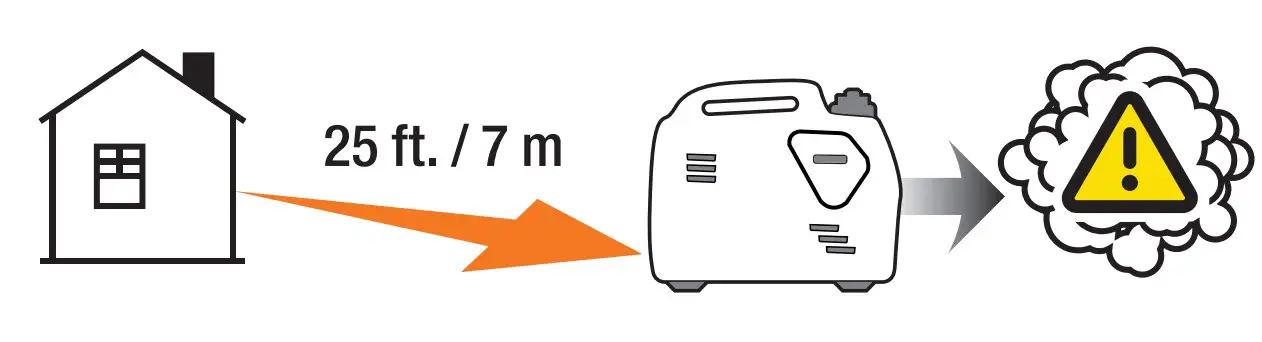

3. Move the generator outdoors
   Move generator to an open, outdoor area. Point exhaust away. NEVER run generator close or inside any building, garages, sheds, compartments or vehicles.

   Keep all objects at least 5 feet (1.5 m) from generator. Heat from the muffler and exhaust gas can ignite combustible materials

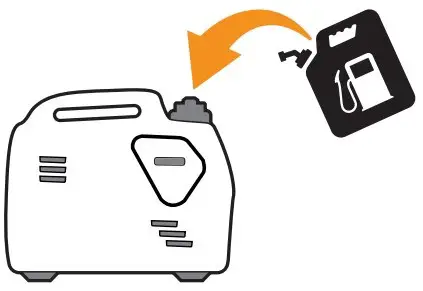

4. Add fuel. Assembly > Add E5 or E10 Fuel
   DO NOT use E15 or E85

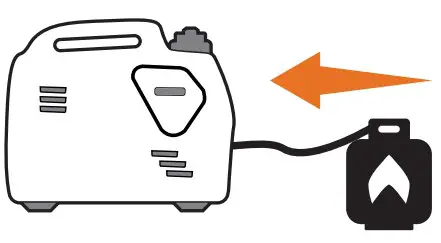

   Connect propane cylinder.  Assembly > Add Fuel: Propane (LPG)

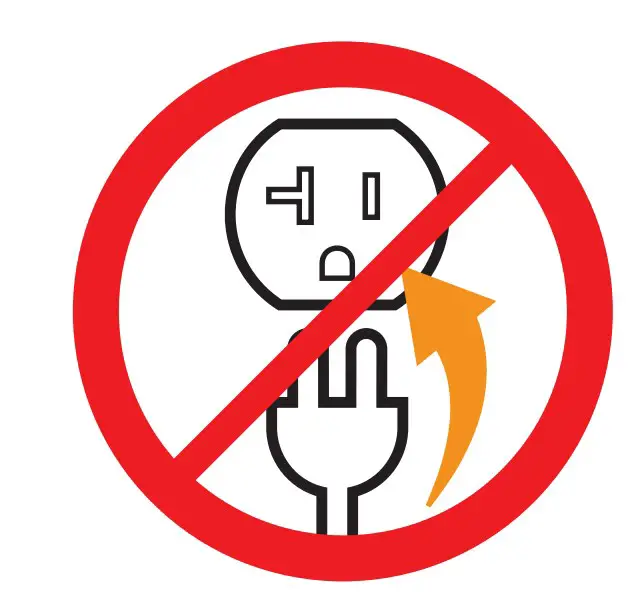

5. DO NOT plug in any electrical devices.
   NEVER START OR STOP THE GENERATOR WITH ELECTRICAL DEVICES CONNECTED OR TURNED ON!

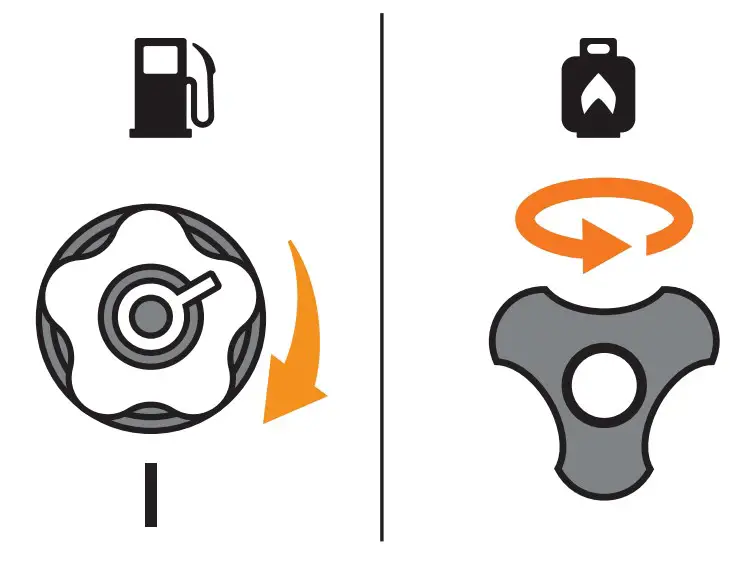

6. For Petrol Operation
   Turn the fuel cap vent lever to the “ON” (|) position.
   For Propane Operation
   Open the propane tank valve.

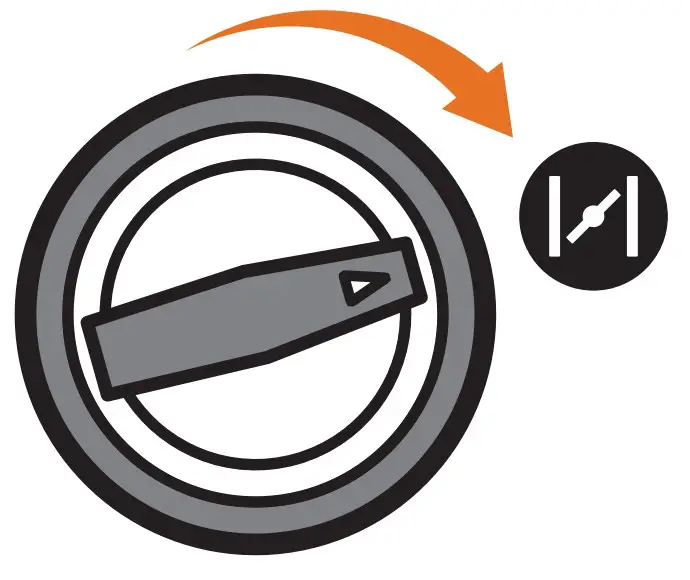

7. Turn the dial to the “CHOKE” position.

8. For Petrol Operation

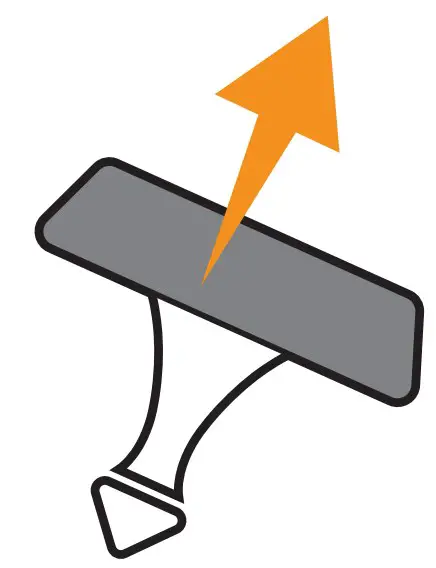

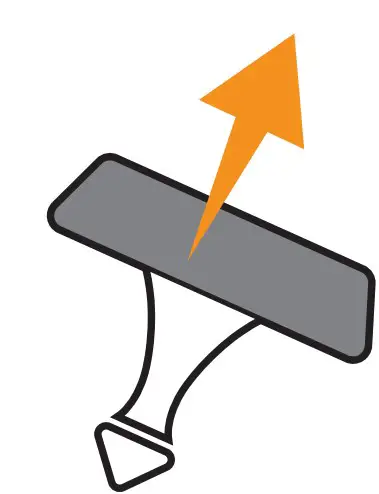

   Pull the recoil to start the engine.
   For Propane Operation
   Pull the recoil 2-3 times to prime the engine.

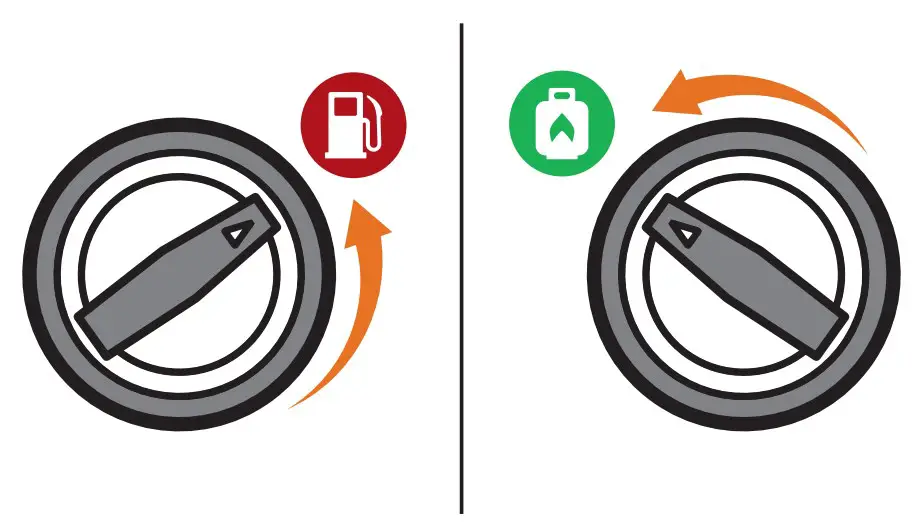

9. For Petrol Operation
   Turn the dial to the Petrol “RUN” position
   For Propane Operation
   Turn the dial to the Propane “RUN” position.

10. Pull the recoil to start the engine.

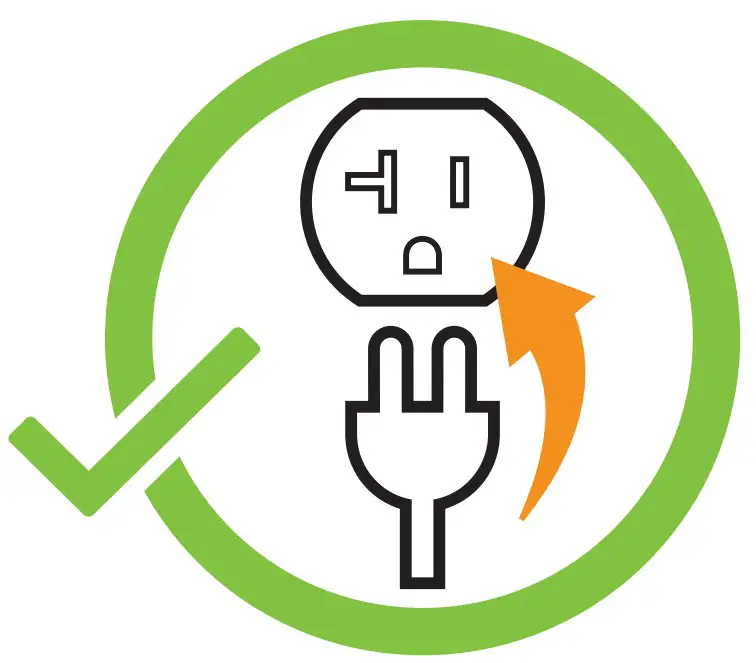

11. Plug in. Operation > Connecting Electrical Loads.
