IMI TA TA-PILOT-R High Performing Differential Pressure Controller

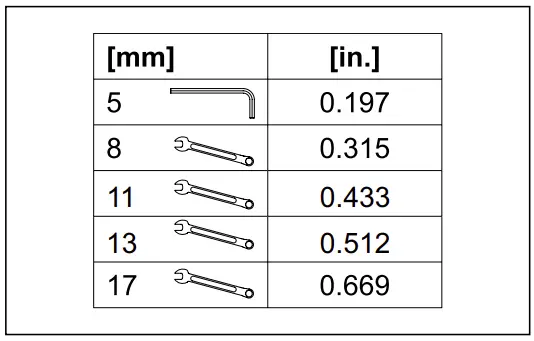

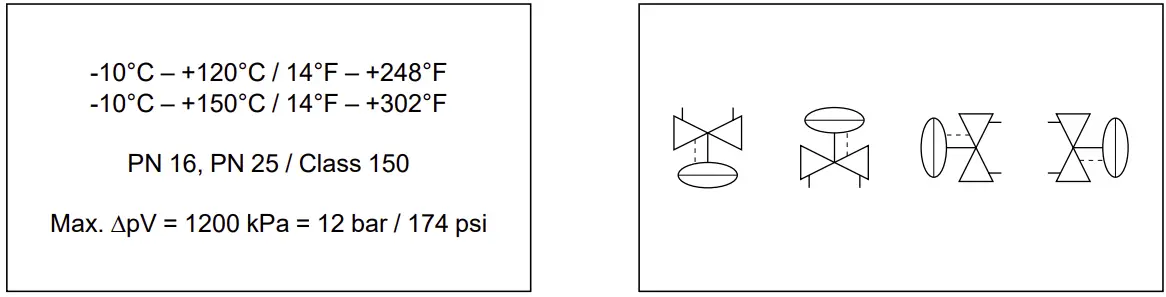

Installation Instructions
DN Size | 65 2 1/2” | 80 3” | 100 4” | 125 5” | 150 6” | 200 8” | |
Sp [kPa] / [psi] | ΔH = 0-400 kPa / 0-58 psi | 45 / 6.5 | |||||
| ΔH = 400-1200 kPa / 58-174 psi | 65 / 9.4 | ||||||
Kvmin / Cvmin | 4 / 5 | ||||||
| Kvm / Cvm | 75 / 87 | 110 / 127 | 180 / 208 | 270 / 312 | 400 / 462 | 600 / 694 | |
qmax [m3 /h] / [gpm] | 53 / 233 | 78 / 343 | 127 / 559 | 191 / 841 | 283 / 1246 | 424 / 1867 | |
Sp = Sealing pressure, the increase of ΔpL in kPa (psi) when a Δp controller controls ΔpL from Kvmin (Cvmin) down to zero flow
Kvmin (Cvmin) = m3 /h (gpm) at a pressure drop of 1 bar (1 psi) and minimum opening corresponding to the p-band.
Kvm (Cvm) = m3 /h (gpm) at a pressure drop of 1 bar (1 psi) and maximum opening corresponding to the p-band.
qmax = The maximum recommended flow through a Δp controller.
ΔH = Available differential pressure.

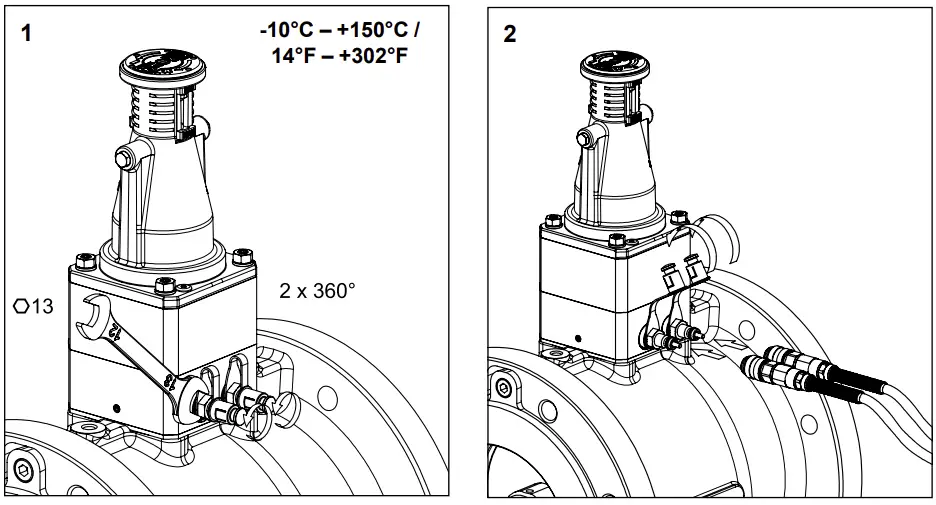

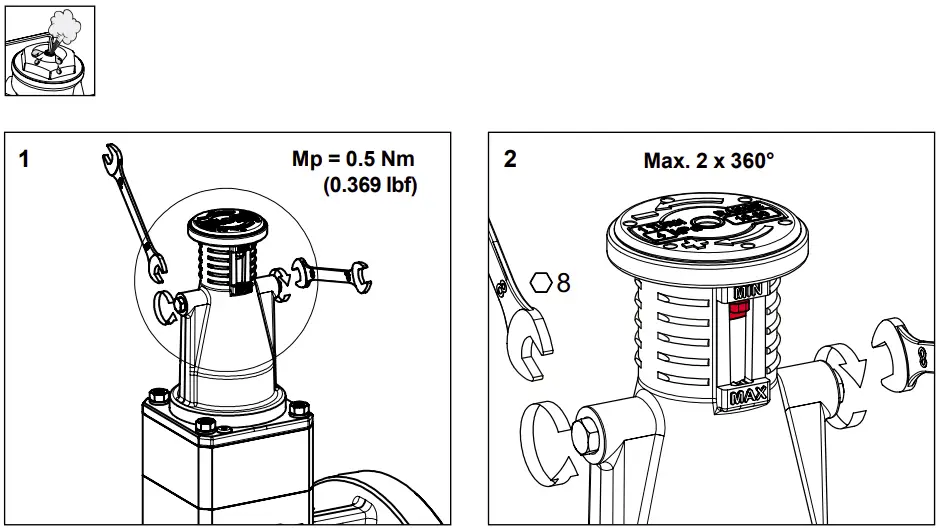

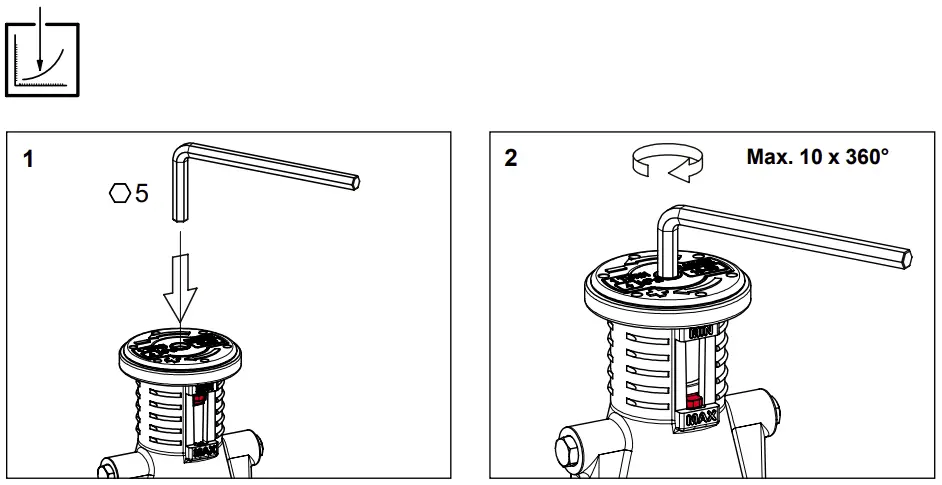

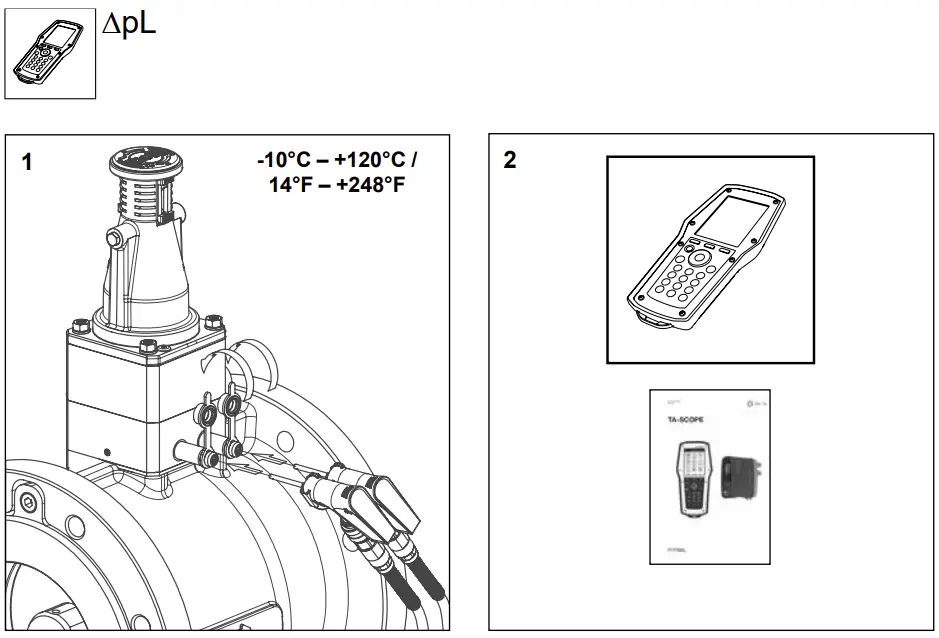

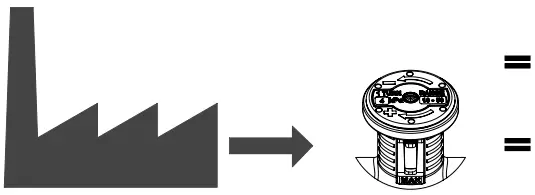

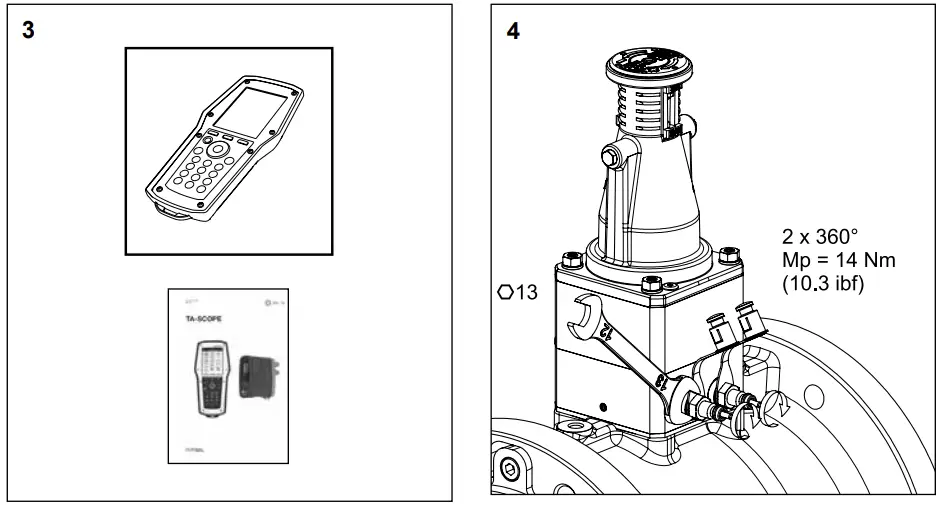

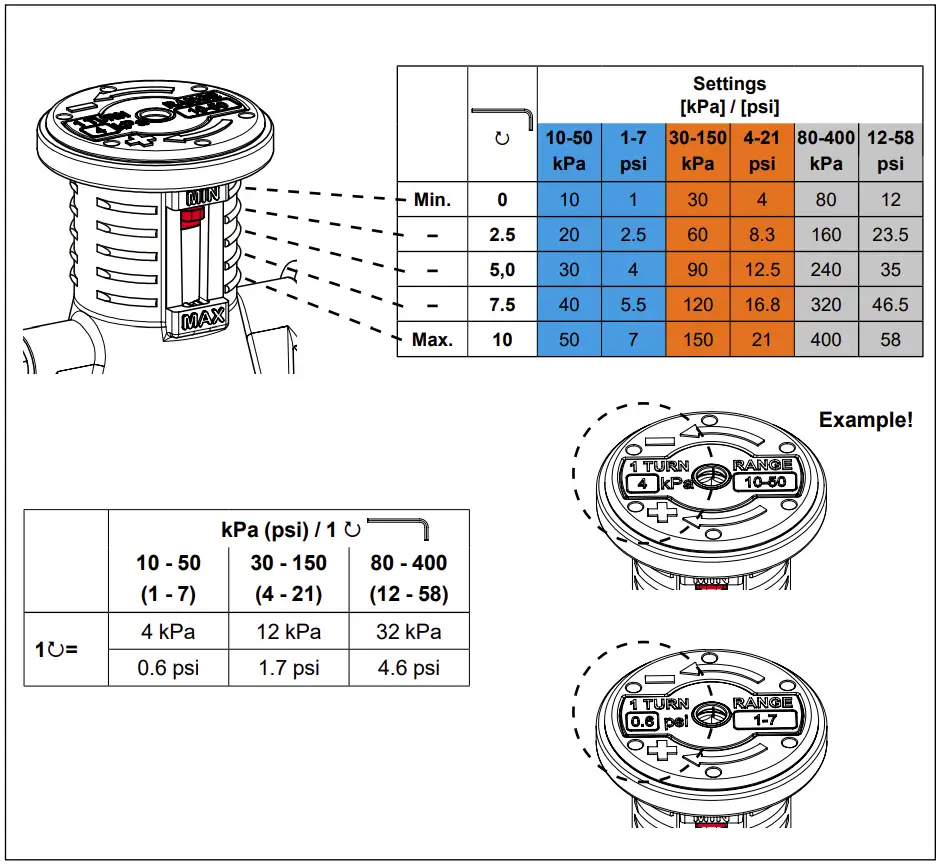

 | 10-50 | 30-150 | 80-400 | kPa |
| 10 | 30 | 80 | ||
| 1 – 7 | 4 – 21 | 2 – 58 | psi | |
| 1 | 4 | 12 |

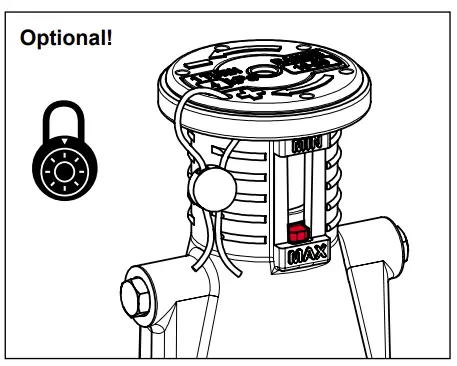

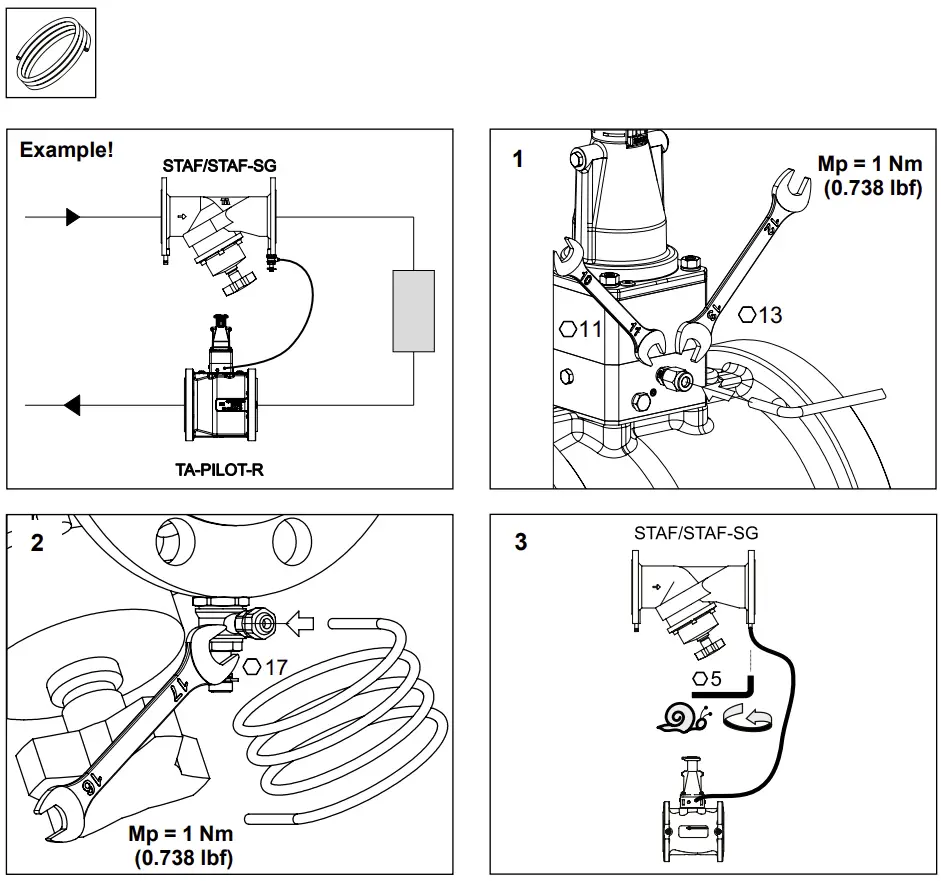

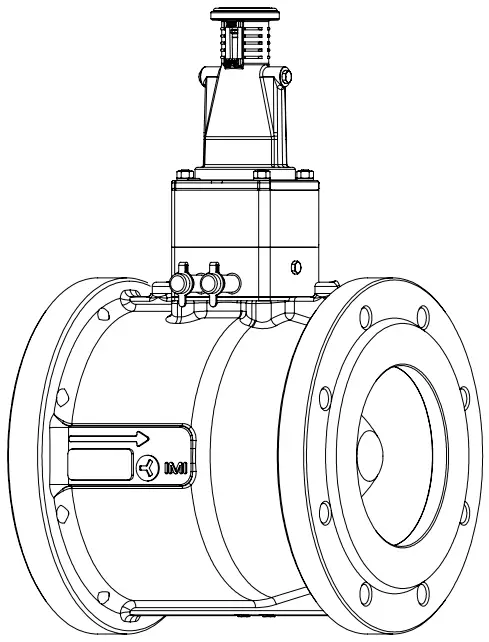

 | DN | 65 | 80 | 100 | 125 | 150 | 200 |

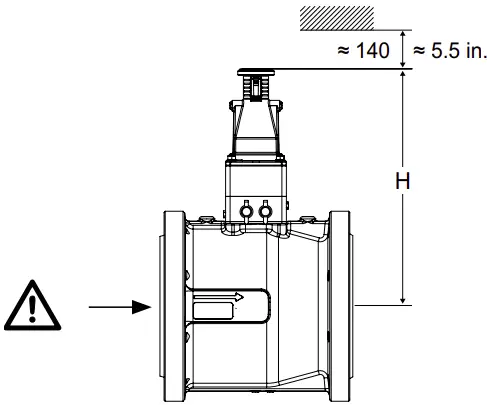

| H [mm] | 274 | 281 | 303 | 313 | 331 | 361 | |
| Size | 2 1/2” | 3” | 4” | 5” | 6” | 8” | |
| H [in.] | 10.7 | 11.1 | 11.9 | 12.3 | 13 | 14.2 |
We reserve the right to introduce technical alterations without prior notice.
