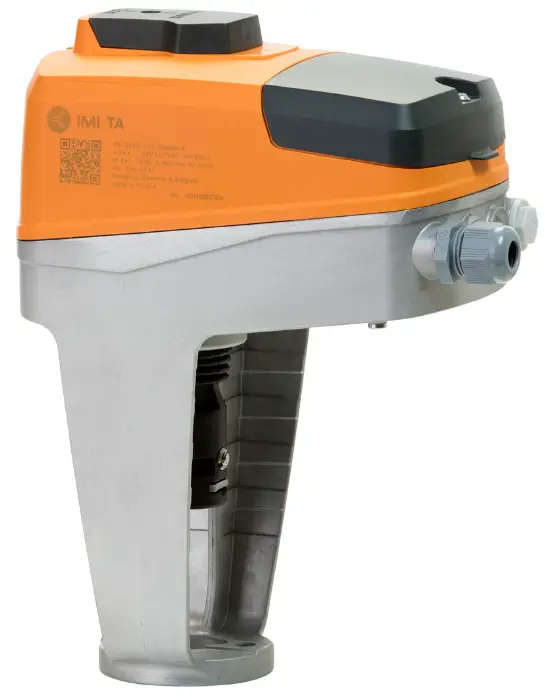

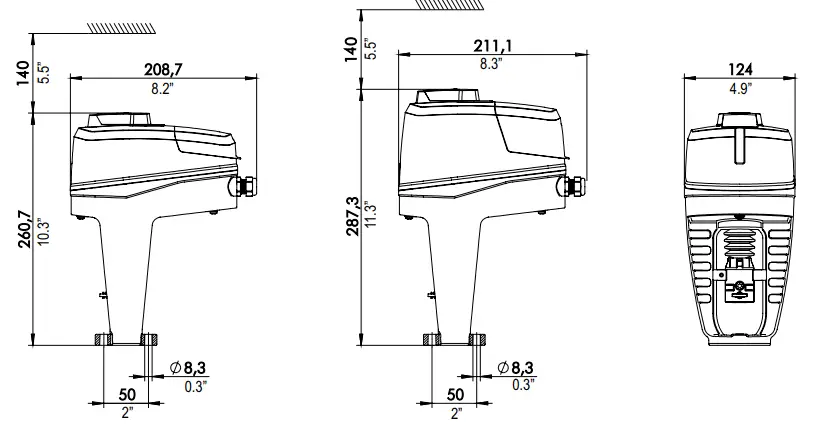

IMI Hydronic Engineering TA-Slider 750 IMI TA Actuator

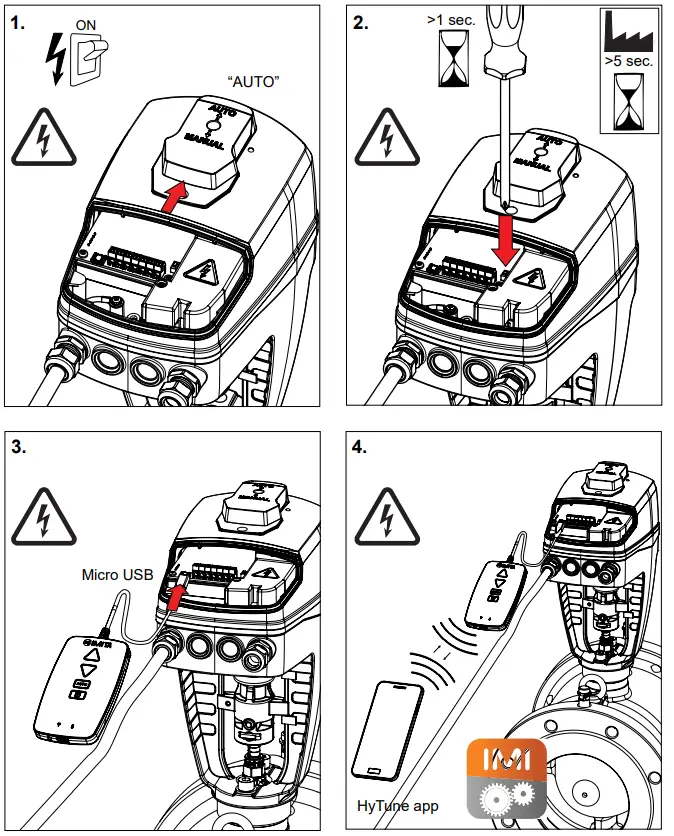

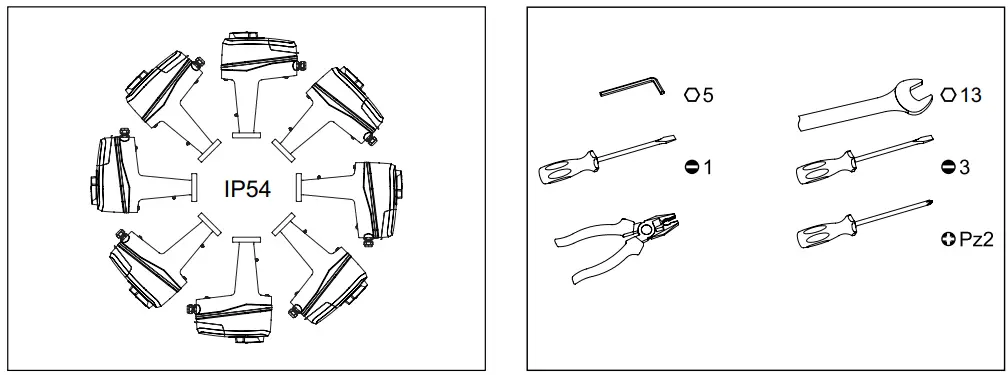

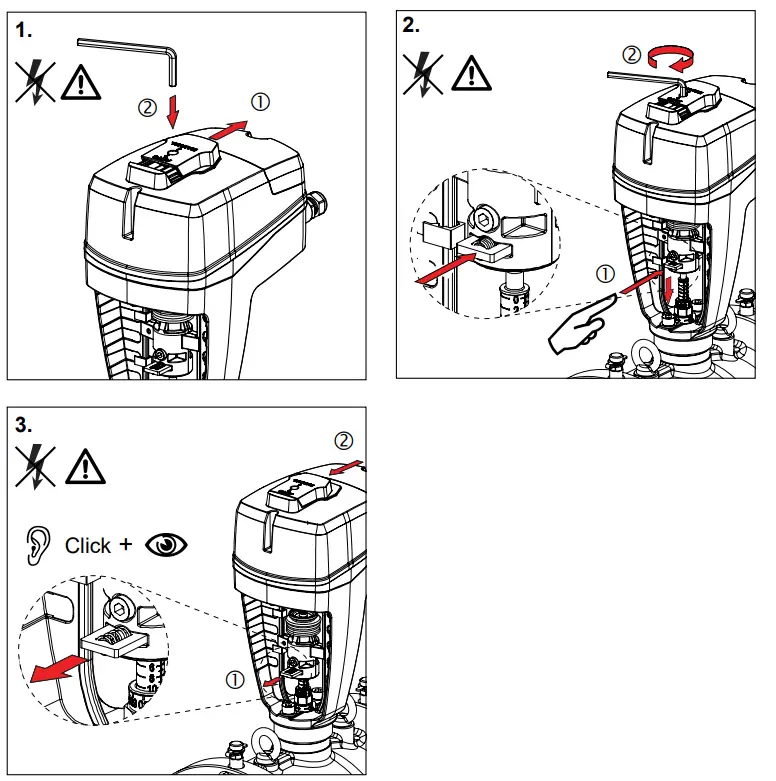

Quick start

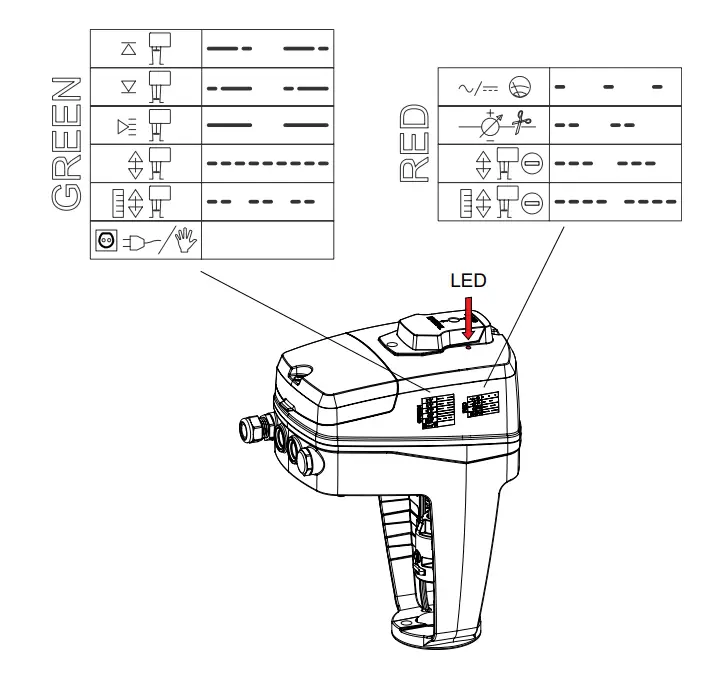

LED
TA-Slider 750/1250 Plus

• 0°C – +50°C 32°F – +122°F (5-95%RH, non-condensing)
• 0°C – +120°C 32°F – +248°F
• -20°C – +70°C -4°F – +158°F (5-95%RH, non-condensing)
• Input signal: 0-10 VDC
• Output signal: 0-10 VDC
• Speed: 3 s/mm (3, 4, 6, 8, 12 or 16 s/mm)
• 76.2 s/in (76.2, 101.6, 152.4, 203.2, 304.8 or 406.4 s/in)
• Characteristic: Linear

TA-Slider 750/1250
TA-Slider 750/1250 Plus

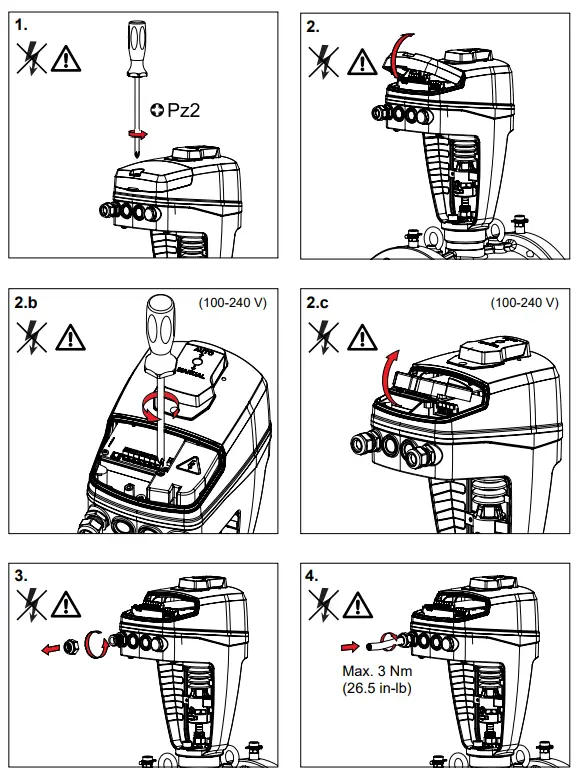

• Protection class I: H05VV-F or similar
• Protection class III: LiYY or similar
• Wire cross-section: 0.25-2.0 mm2
• (30 AWG-14 AWG)
• L = 100 mm (3.94 in.)
• Grouding wire L = 120 mm (4.72 in.)




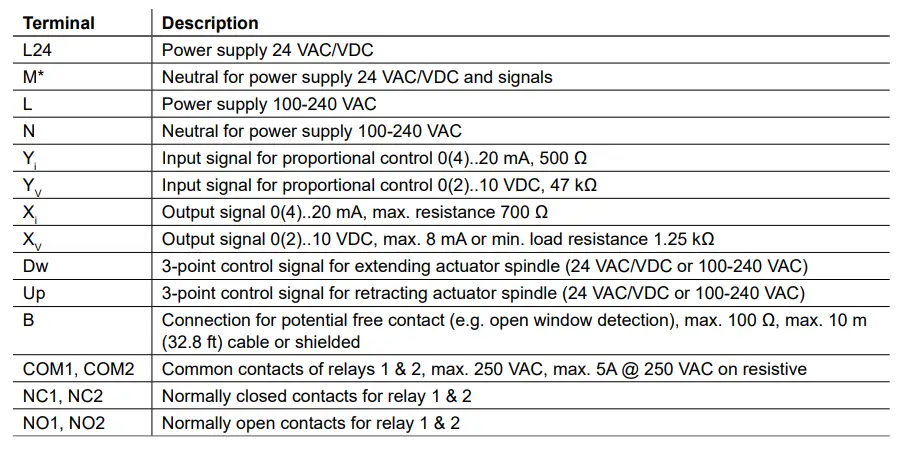

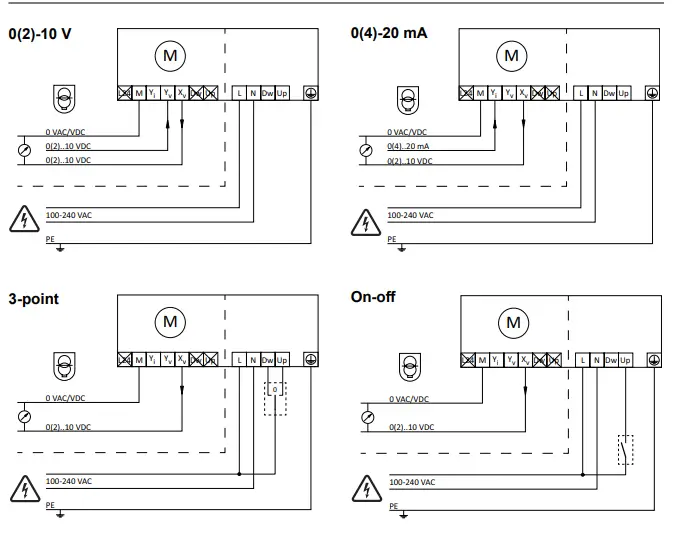

100-240 V

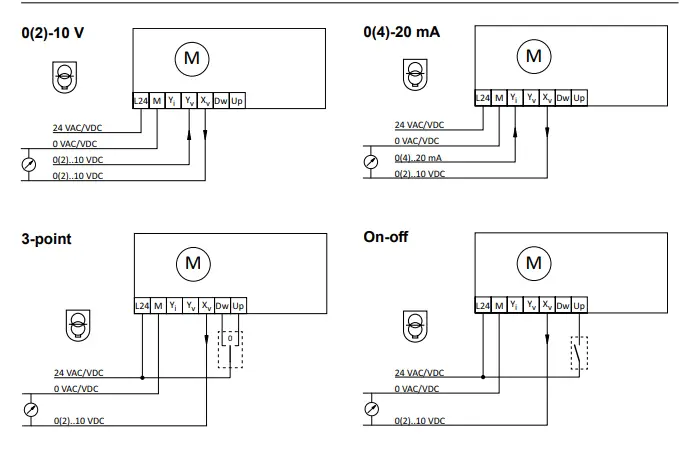

24 V

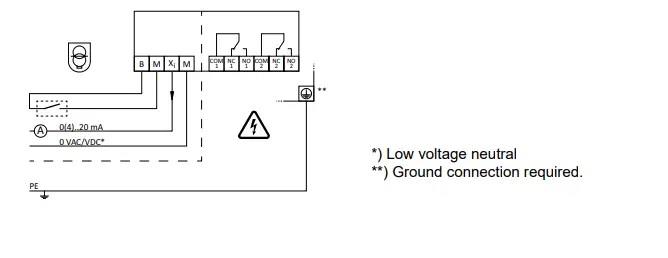

Relay (TA-Slider 750/1250 Plus)

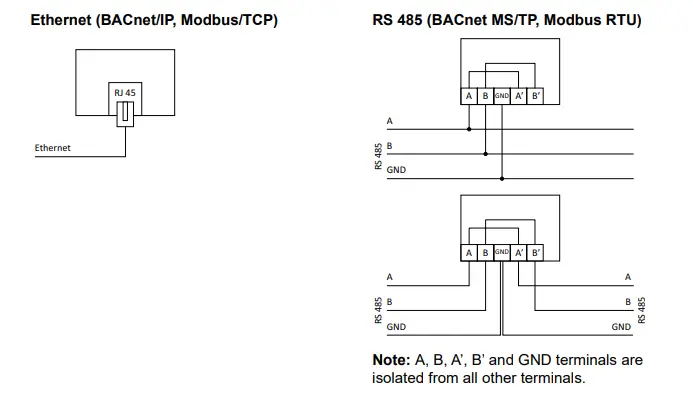

BUS (TA-Slider 750/1250 Plus)
