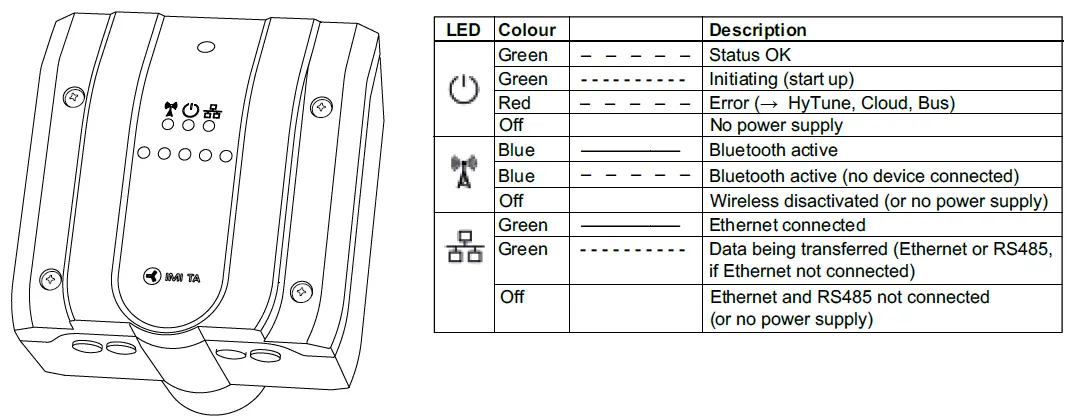

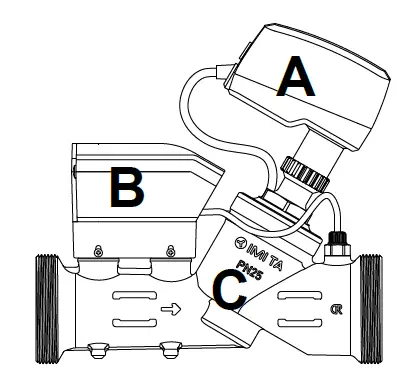

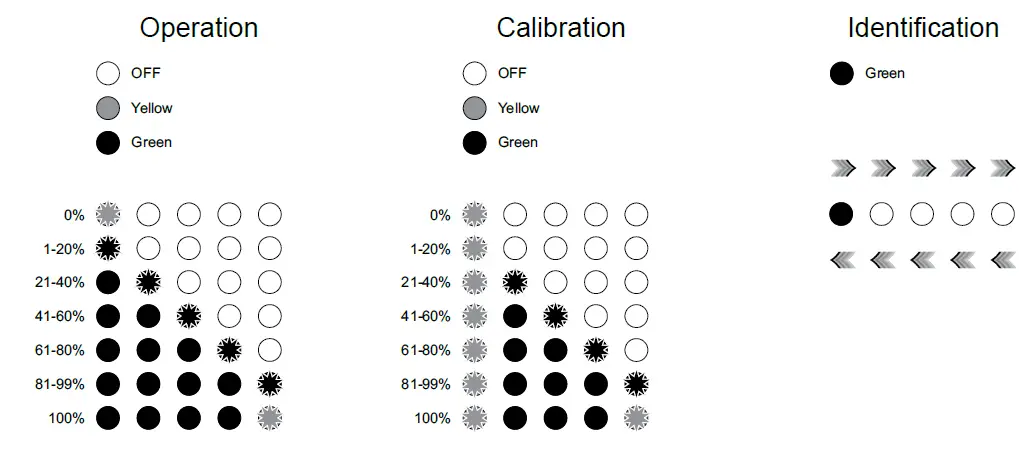

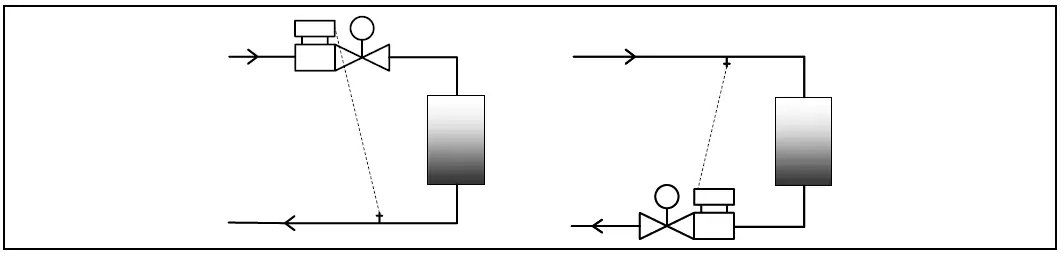

IMI hydronic Engineering DN 20-50 TA-Smart

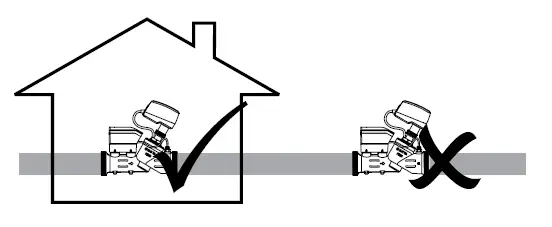

- Intendent use: For measuring and control in heating and cooling systems.
- The water quality requirements described in VDI2035 should be respected
- TA-Smart can be cleansed with a damped cloth and a lenient cleaning agent.
- Insulated wires and cables shall retard flame propagation with a flammability RATING of UL 2556 VW-1 or equivalent.
24 VAC/VDC operating only with safety isolating transformer according EN 61558-2-6

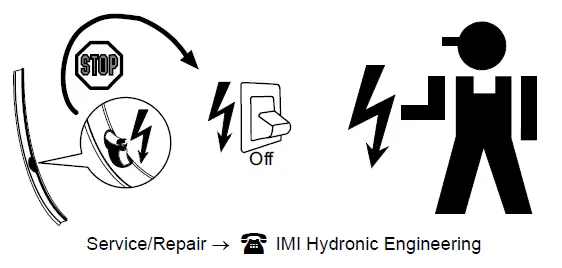

If the TA-Smart is used in any other application than specified by IMI Hydronic Engineering the protection provided by the equipment may be impaired
Technical specifications valid at an altitude of max. 2000 m.
- Input signal: 0-10 VDC
- Output signal: 0-10 VDC
- Control mode: Flow
- Flow setting: qnom
- Media: H2O
- Characteristic: EQ
B BACnet MS/TP, BACnet IP, Modbus RTU, Modbus TCP
Proportional: 0(2)-10 VDC 47 k 0(4)-20 mA, 500
Power supply 24 VAC +6%/-10%, 50/60 Hz ±15% 24 VDC +15%/-10%
Power consumption
- Operating (DN 20-50) < 5.6 VA (VAC); < 4.0 W (VDC)
- Standby < 3.3 VA (VAC); < 1.9 W (VDC)

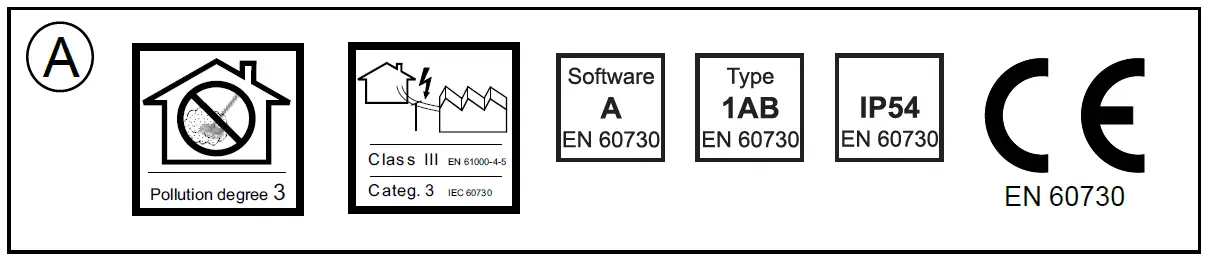

EN 61010
Contains Transmitter
Module FCC ID: X8WBC840M

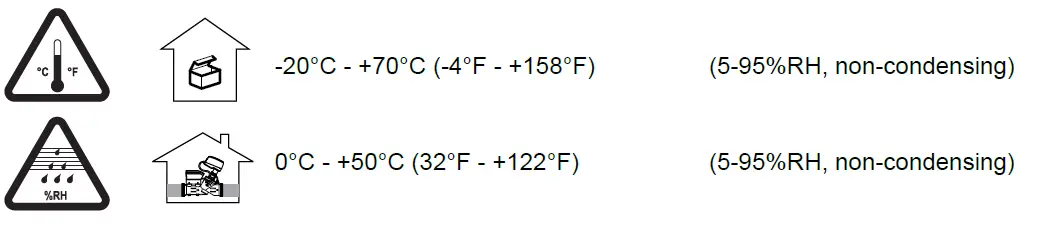

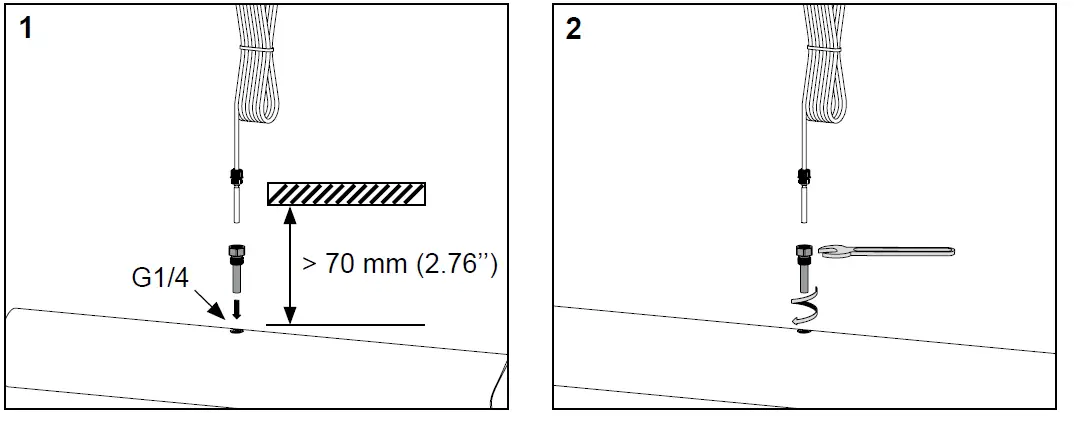

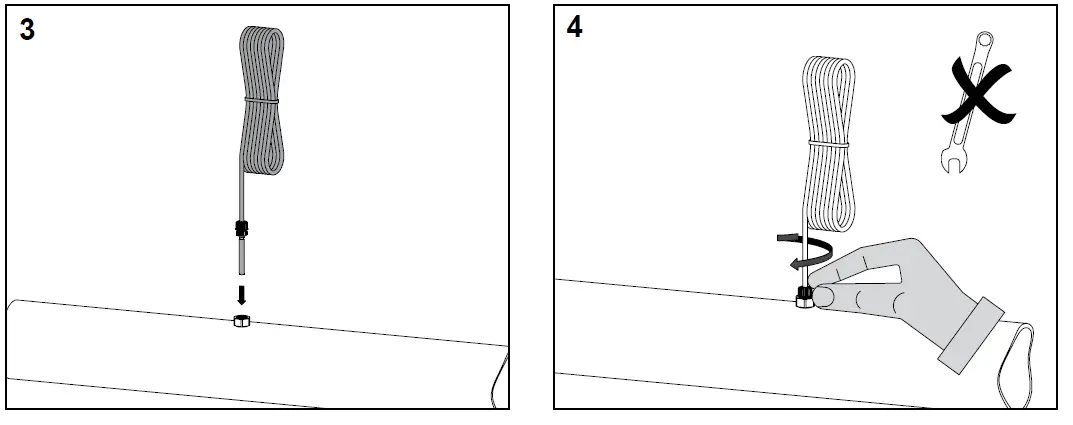

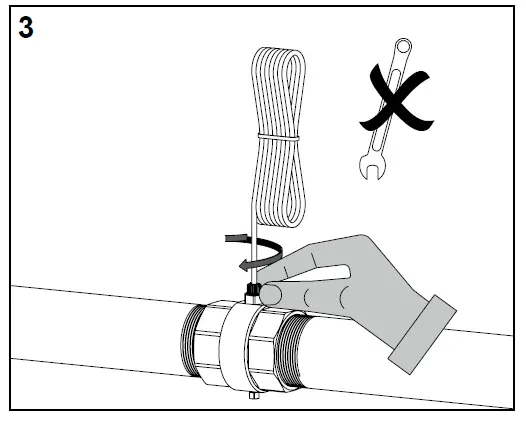

- 10°C – +110°C (14°F – +230°F) Water and water-glycol mixtures (0-57%).

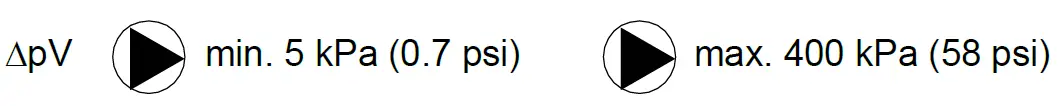

PN 25 (362 psi)

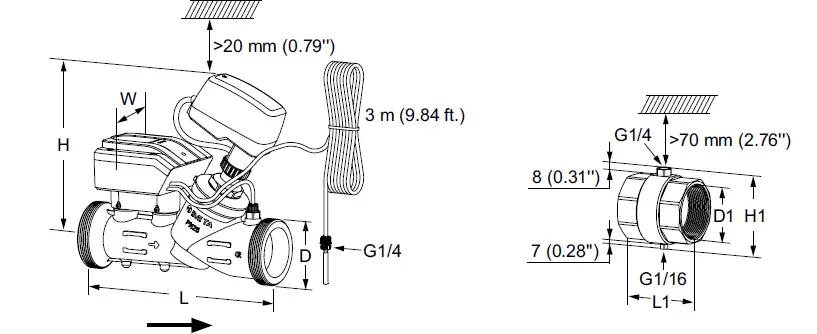

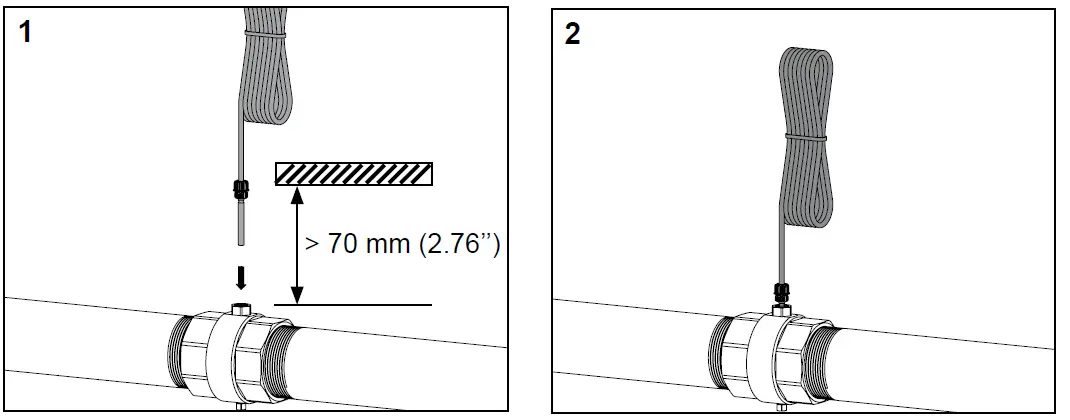

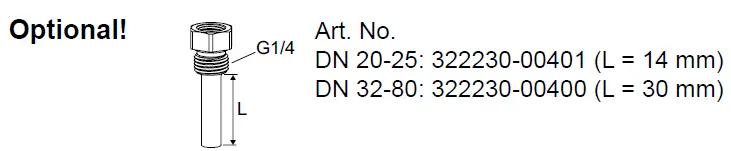

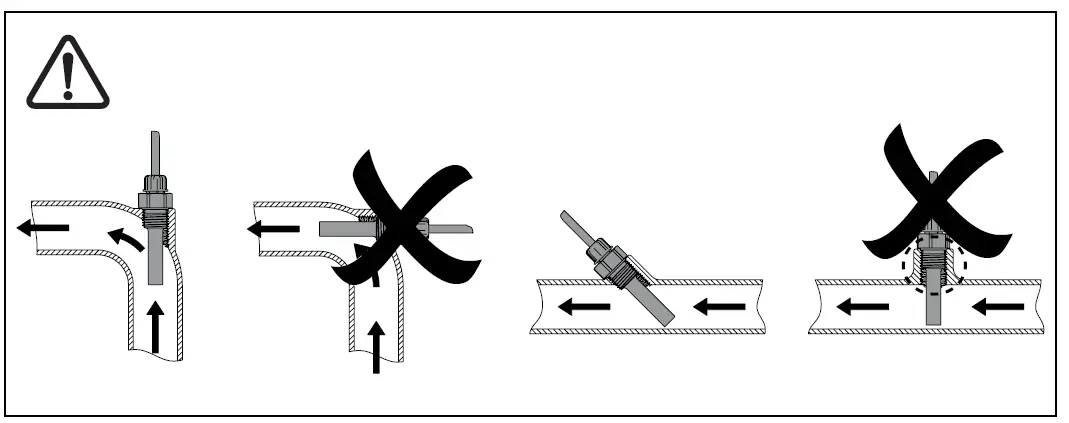

| ISO | ||||
| DN | D | L [mm] | H [mm] | W [mm] |
| 20 | G1 | 180 | 174 | 97 |
| 25 | G1 1/4 | 187 | 174 | 97 |
| 32 | G1 1/2 | 226 | 223 | 97 |
| 40 | G2 | 232 | 227 | 97 |
| 50 | G2 1/2 | 245 | 235 | 97 |
| Size | D | L [in] | H [in] | W [in] |
| 3/4” | G1 | 7.09 | 6.85 | 3.82 |
| 1” | G1 /4 | 7.36 | 6.85 | 3.82 |
| 1 1/4” | G1 1/2 | 8.90 | 8.78 | 3.82 |
| 1 1/2” | G2 | 9.13 | 8.94 | 3.82 |
| 2” | G2 1/2 | 9.65 | 9.25 | 3.82 |
| ISO | NPT | ||||
| D1 | L1 [mm] | H1 [mm] | D1 | L1 [mm] | H1 [mm] |
| G3/4 | 60 | 56 | 3/4” | 55 | 56 |
| G1 | 62 | 61 | 1” | 64 | 61 |
| G1 1/4 | 70 | 71 | 1 1/4” | 66 | 70 |
| G1 1/2 | 70 | 77 | 1 1/2” | 67 | 76 |
| G2 | 78 | 89 | 2” | 68 | 89 |
| D1 | L1 [in] | H1 [in] | |||
| 3/4” | 2.17 | 2.20 | |||
| 1” | 2.52 | 2.40 | |||
| 1 1/4” | 2.60 | 2.76 | |||
| 1 1/2” | 2.64 | 2.99 | |||
| 2” | 2.68 | 3.50 | |||

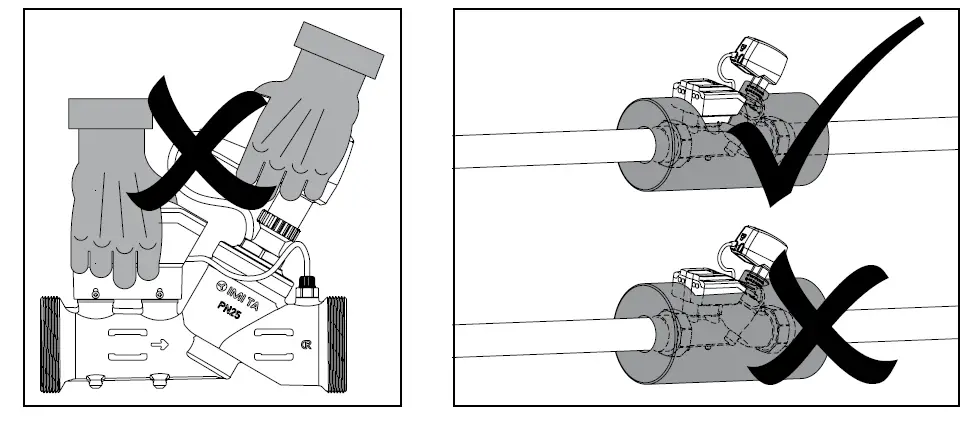

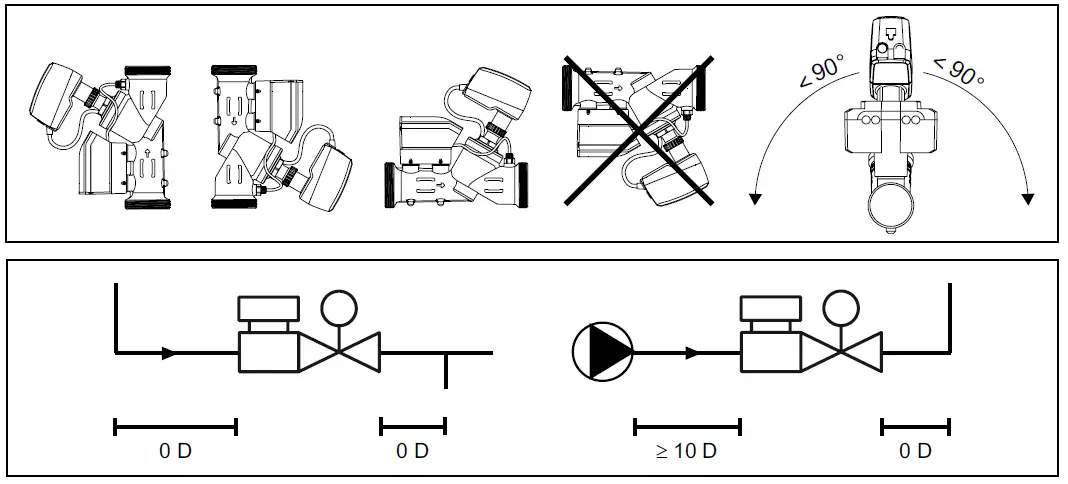

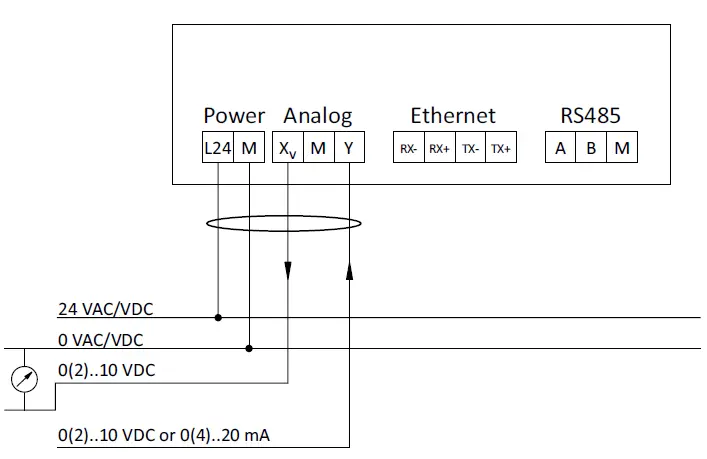

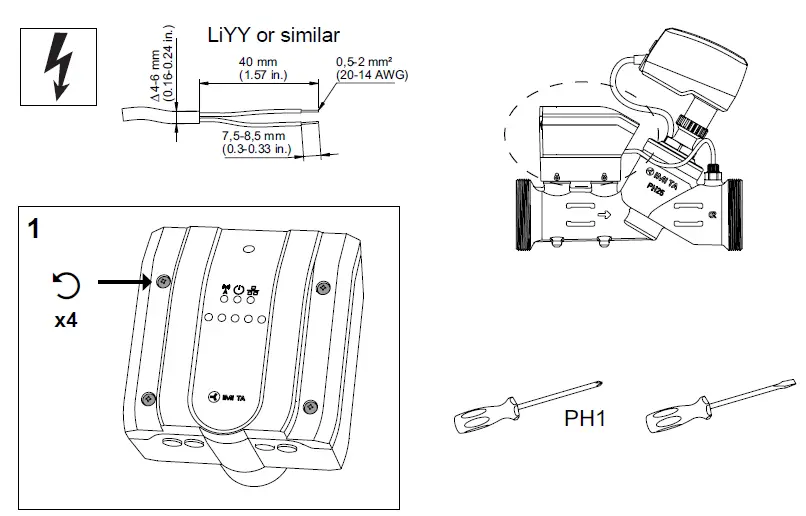

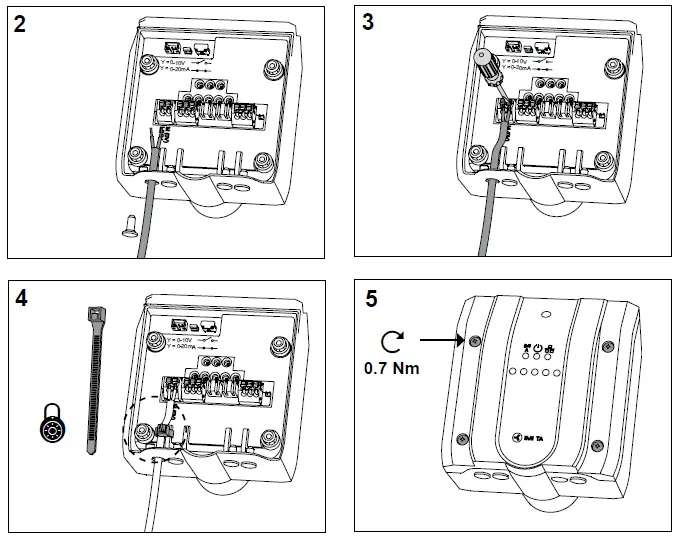

Wiring Diagram
| Terminal | Description |
| L24 | Power supply 24 VAC/VDC |
| M* | Neutral for power supply 24 VAC/VDC and signals |
| XV | Output signal 0(2)-10 VDC, max. 8 mA or min. load resistance 1.25 kΩ |
| M (0V)* | Neutral for signal |
| Y | Input signal 0(2)-10 VDC, 47 kΩ or Input signal 0(4)-20 mA, 500 Ω (selectable by jumper XX) |
| Ethernet | |
| RX – | Ethernet connector wire position 6 |
| RX + | Ethernet connector wire position 3 |
| TX – | Ethernet connector wire position 2 |
| TX + | Ethernet connector wire position 1 |
| RS485 | |
| A | RS485 Data + |
| B | RS485 Data – |
| M (0V)* | Neutral for signal |
- USB Only for IMI use
- Serial Debug Only for IMI use
All M terminals are internally connected.
24 VAC/VDC operating only with safety isolating transformer according EN 61558-2-6

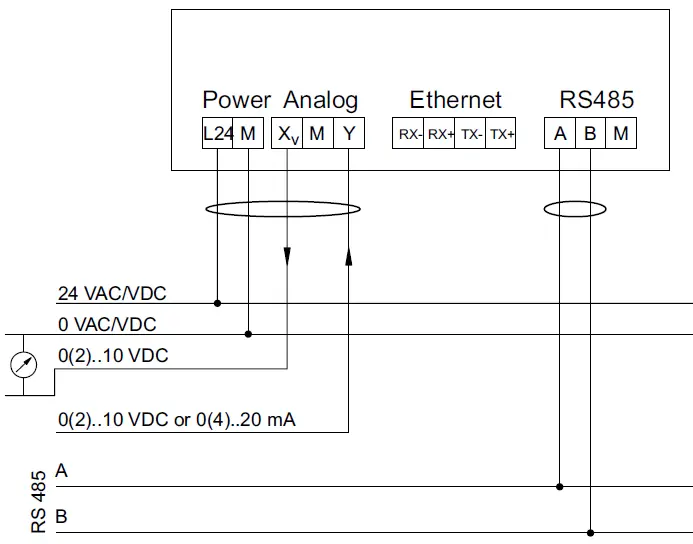

Standard
Modbus RTU / BACnet MS/TP
Note:
- A, B and M terminals are NOT isolated from all other terminals.
- GND (M – 0V) is common to power supply, analog signals and RS 485.
- In case of AC power supply, L24 and M should be connected to the same phase for each TA-Smart.
- GND (0V) of RS 485 should be connected to 0 VAC/VDC on the controller side.
- GND (0V) of analog input/output should be connected to 0 VAC/VDC on the controller side.
Modbus TCP / BACnet IP
Note: Ethernet cable shall be Cat 5e or Cat 6 cable. Wire color indication is for T568B pinout.

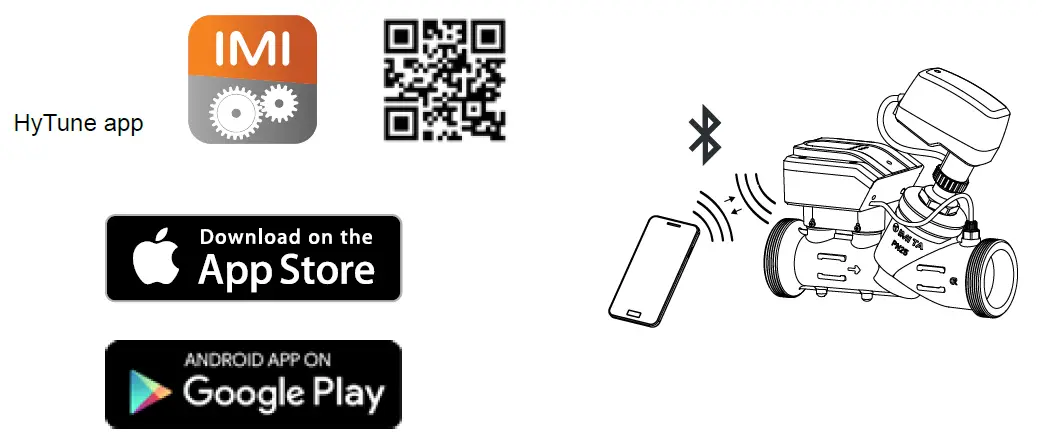

HyTune app
For setting of control parameters use HyTune app
