Iman Helium 15 Electric Guitar Amplifier Instruction Manual

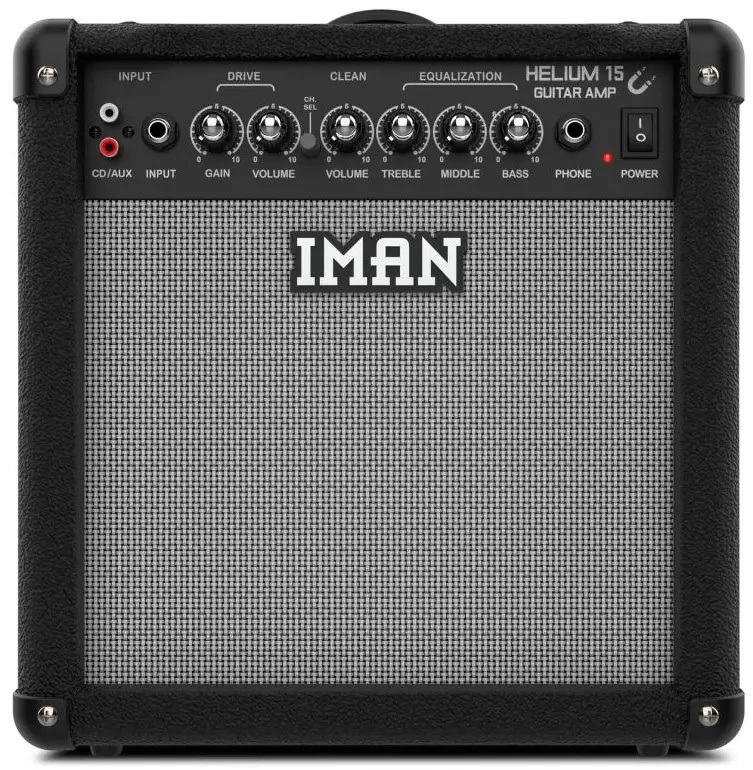

IMAN Helium 15 Electric Guitar Amplifier

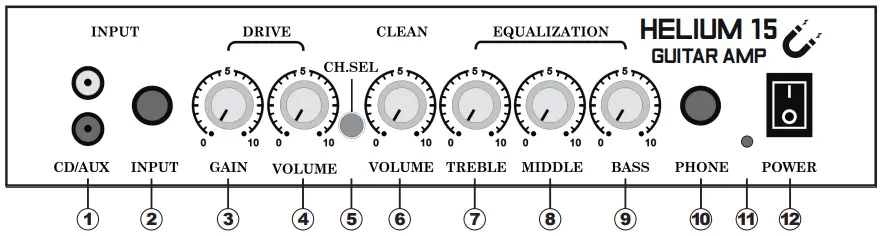

CONTROL AND OPERATION CONTROLES Y FUNCIONAMIENTO

1. CD/AUX: Input jack for a CD player or MP3
2. INPUT: Input jack for guitar
3. GAIN: Gain control of the drive channel
4. VOLUME: Volume control of drive channel
5. CH.SEL: Channel select switch (Clean/Overdrive)
6. VOLUME: Volume control for the clean channel
7. TREBLE: Treble control
8. MIDDLE: Mid-range control
9. BASS: Bass control
10. PHONE: Phone jack (speaker is off when plug in)
11. LED: Power indicator lamp
12. POWER: Power switch

POINTS FOR ATTENTION

• Please read the manual carefully before using it. Make clear the function of the switch, button, and knob.
• Pulls a plug out of an outlet when long time not using it.
• When failures in the machinery, please send it to the appointed maintenance department to be under-repaired.
• The information is subject to change without notice.
