Imi Ta 15-50 Stap Differential Pressure Controllers Instruction Manual

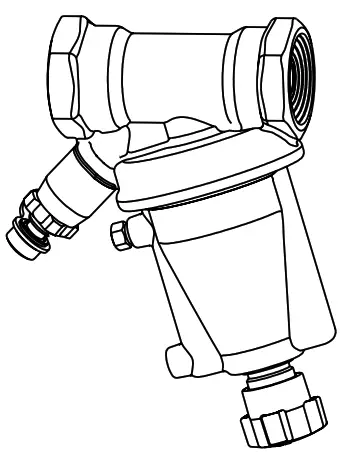

STAP (DN 15-50)
Exchange of handwheel
Byte av ratt
307 963-07
Instruction Manual

15-50 Stap Differential Pressure Controllers

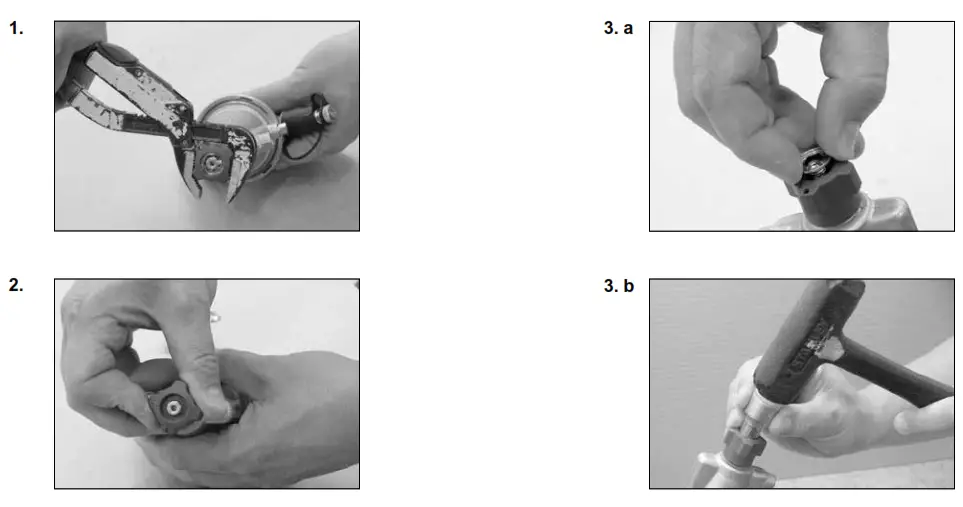

1. Open the valve until the handwheel comes loose (pass the stop) and remove the handwheel.
2. Place the new handwheel and close the valve completely with the handwheel.
3. Place the new lock washer (a) and fasten it by using a cylindrical tool, e.g. a socket or similar (b). Be careful not to damage the handwheel.
4. Open the valve fully until stops, then close the valve 1/4 turn.

We reserve the right to introduce technical alterations without previous notice.
