CRUX SWRVL-54 Radio Replacement with Steering Wheel Control Owner’s Manual
PRODUCT FEATURES
- Retains factory features in select Volvo vehicles while functioning with an aftermarket radio.
- Retains Steering Wheel Controls via built-in, pre-programmed interface
- Supports amplified and non-amplified systems.
- EIA color coded wiring for easy installation.

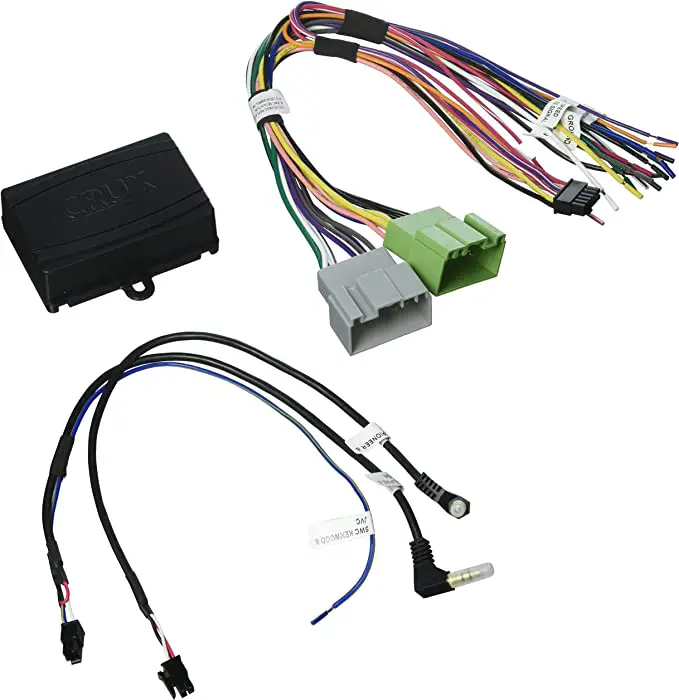

PARTS INCLUDED

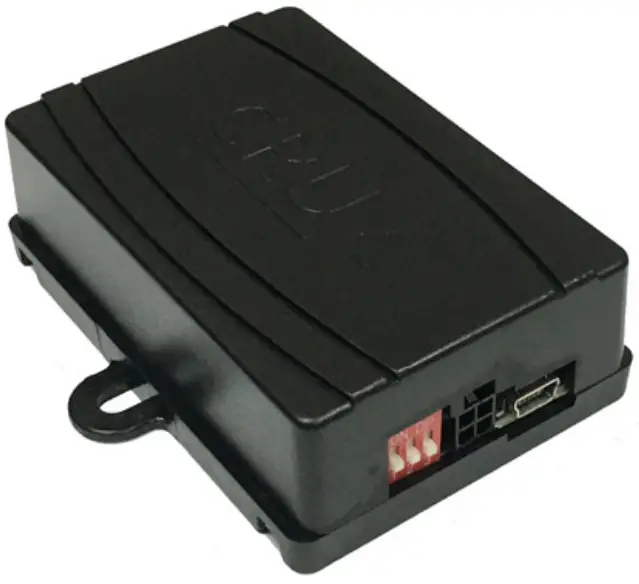

- SWRVL-54 Module
- SWRVL-54 Harness

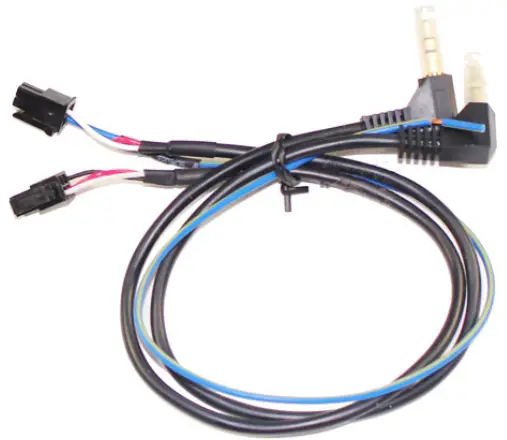

- SWC Cables

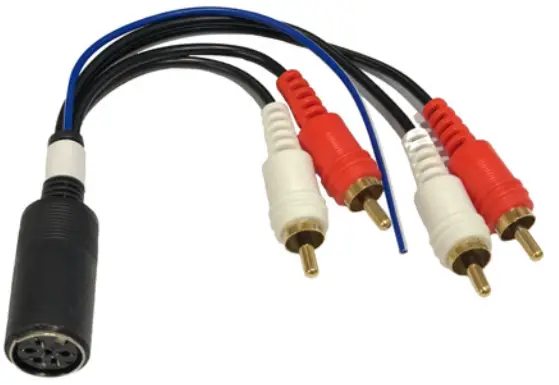

- Amp Retention Harness

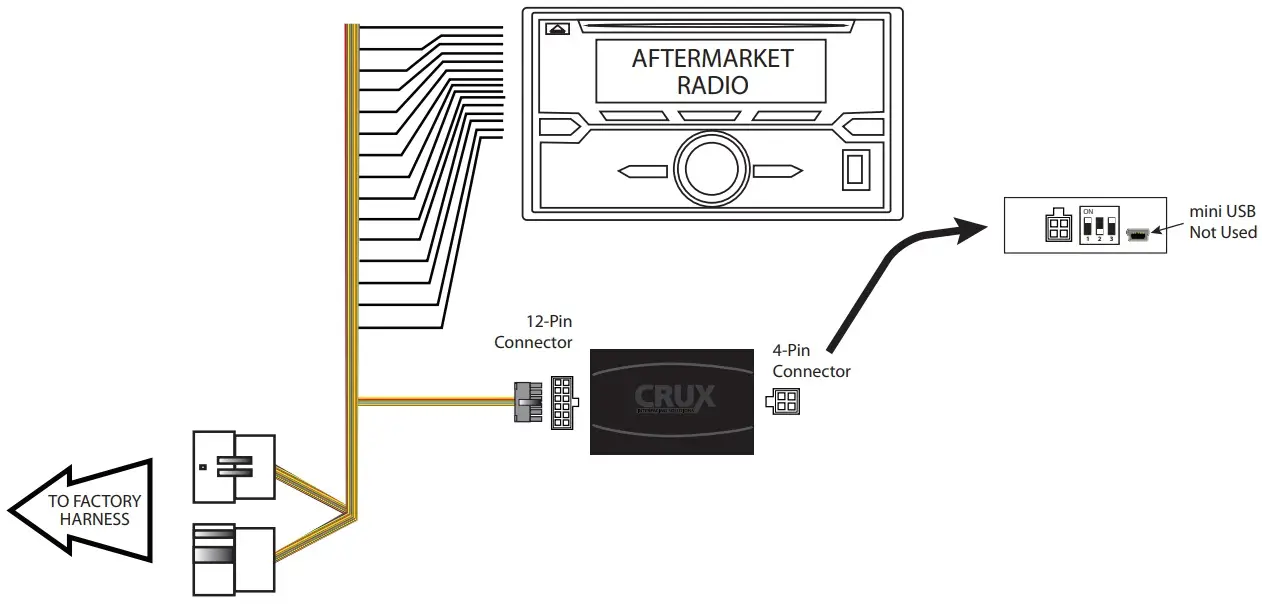

INSTALLATION DIAGRAM
- Reverse (100mA Max): Red/White
- Illumination (100mA Max): Orange
- Antenna Power: Blue
- VSS: Purple/White
- +12V Constant: Yellow
- +12V ACC: Red
- Ground: Black
- Right Front (+): Gray
- Right Front (-): Gray/Black
- Left Front (+): White
- Left Front (-): White/Black
- Right Rear (+): Violet
- Right Rear (-): Violet/Black
- Left Rear (+): Green
- Left Rear (-)” Green/Black

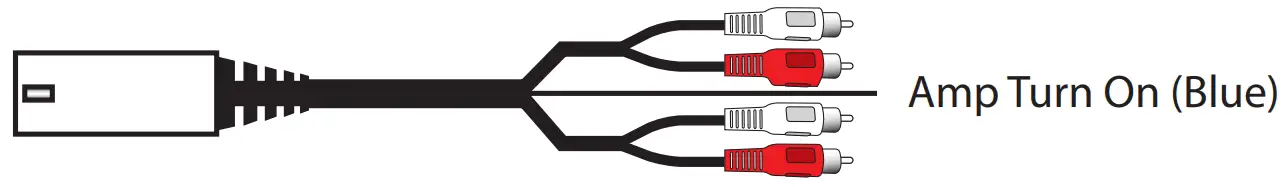

Amplifier Retention Cable

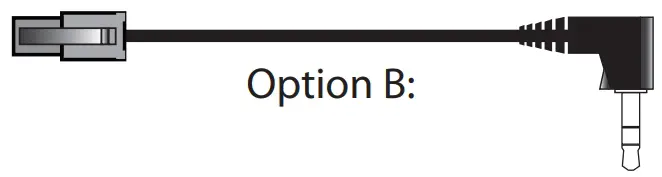

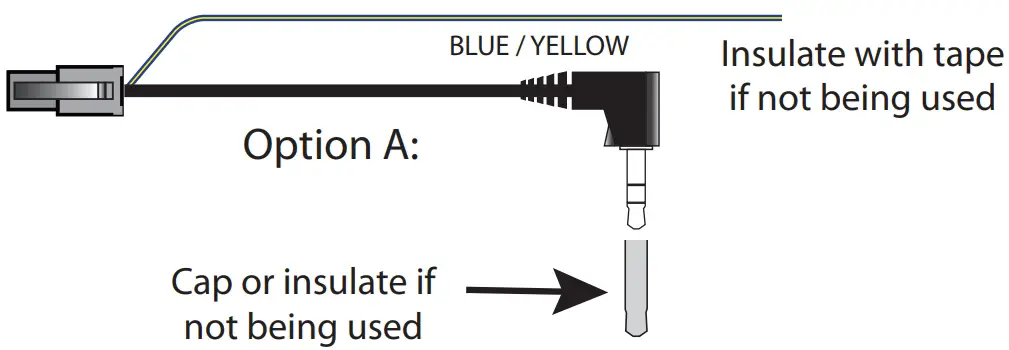

3.5MM SWC CABLES (Option A or B)
Use the proper 3.5MM to 4-Pin cable for your radio. Plug in the selected 3.5MM SWC cable to the 4-pin port on the module. See “DIP SWITCH SETTINGS” section.
DIP SWITCH SETTINGS
AFTERMARKET RADIO DIP SWITCH SETTINGS:
RADIO BRAND | DIP#: | 1 | 2 | 3 |
| Atoto, Dual, Fahrenheit, Jensen | OFF | ON | ON | |
| Pioneer, Power Acoustik, Soundstream | OFF | ON | ON | |
| Blaupunkt, Most o-brand Radio | OFF | ON | ON | |
| Alpine | OFF | OFF | OFF | |
| Clarion | ON | ON | OFF | |
| Kenwood | ON | ON | ON | |
| JVC | ON | OFF | ON | |
| Boss, Old Sony | ON | OFF | OFF | |
| New Sony | OFF | ON | OFF | |

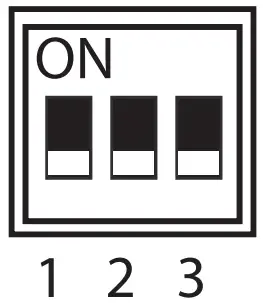

SWC MODULE DIP SWITCH
NOTE: For Atoto, Blaupunkt, Dual, Farenheit, Power Acoustik, Soundstream, and most off-brand radios, check the aftermarket radio’s manual to see if the SWC buttons need to be programmed.
4-PIN SWC CABLE
Use the proper 3.5MM to 4-Pin SWC cable for the aftermarket radio you are using.
OPTION A is used for ALPINE, CLARION. For JVC and KENWOOD use Blue/Yellow wire.
OPTION B is used for ATOTO, BLAUPUNKT, BOSS, DUAL, FARENHEIT, JENSEN, POWER ACOUSTIK, PIONEER, SONY, SOUNDSTREAM and Most Off-Brand Radios.
NOTE: Cap or insulate the 3.5mm plug or Blue/Yellow wire if not being used.

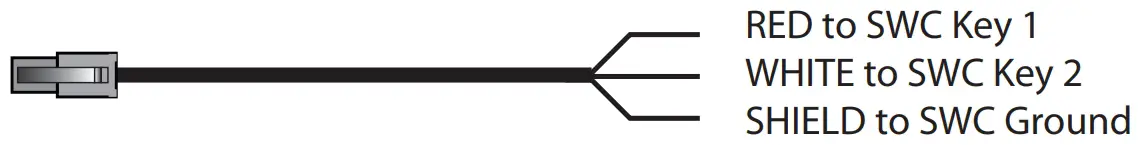

For aftermarket radios that have wires for SWC connections, cut off the 3.5mm plug on the Crux SWC Cable and connect the SWC wires as follows:
VEHICLE APPLICATIONS
VOLVO
2001 – 2004 S40
1999 – 2009 S60
1999 – 2005 S80
2001 – 2004 V40
2001 – 2007 V70*
2001 – 2007 XC70*
2002 – 2012 XC90*/**
- *Compatible with CAN based vehicles only (2nd Generation / Type P26).
- ** NOT Compatible with LIN bus and Fiber-optic systems. Please verify prior to installation.
