Crux Swrhk-65q Radio Replacement With Steering Wheel Aux Input And Backup Camera Owner's Manual

SWRHK-65Q

Radio Replacement with Steering Wheel, Aux Input & Backup Camera Retention for Select Hyundai and Kia Vehicles

PRODUCT FEATURES:

– Retains factory features in select Hyundai and Kia vehicles while functioning with an aftermarket radio.
– Retains factory 3.5mm Aux Input Jack (if equipped).
– Retains factory USB port (if equipped).
– Retains factory backup camera (if equipped).
– Pre-programmed to retain factory Steering Wheel Controls.
– Includes antenna adapter.

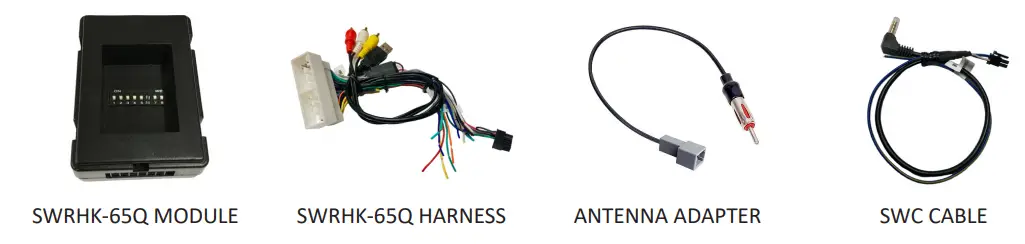

PARTS INCLUDED:

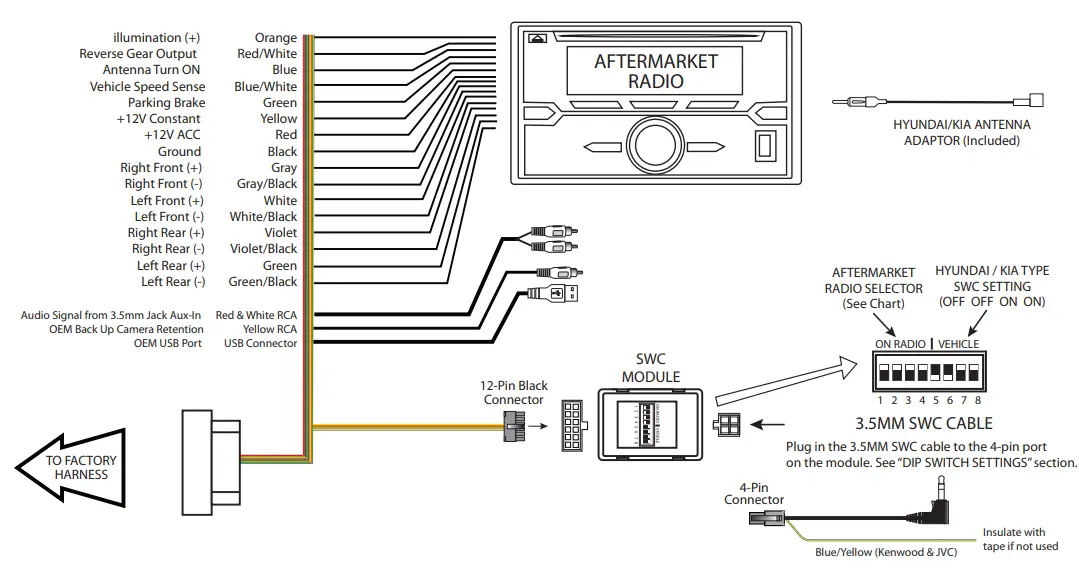

INSTALLATION DIAGRAM:

LED TROUBLESHOOTING ON MODULE

DIP SWITCH SETTINGS:

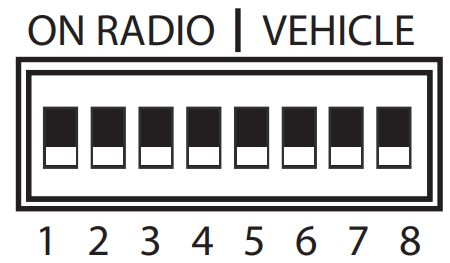

AFTERMARKET RADIO DIP SWITCH SETTINGS:

SWC MODULE

NOTE: For Atoto, Blaupunkt, Dual, Farenheit, Power Acoustik, Soundstream, and most off-brand radios, check the aftermarket radio’s manual to see if the SWC buttons need to be programmed.

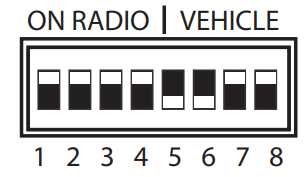

HYUNDAI / KIA STEERING WHEEL CONTROL DIP SWITCH SETTING:

SWC MODULE

3.5MM SWC CABLE
Plug in the 3.5MM to 4-Pin SWC cable and set the DIP switches to the aftermarket radio you are using.
NOTE: Insulate the Blue/Yellow wire or 3.5mm plug if not being used.

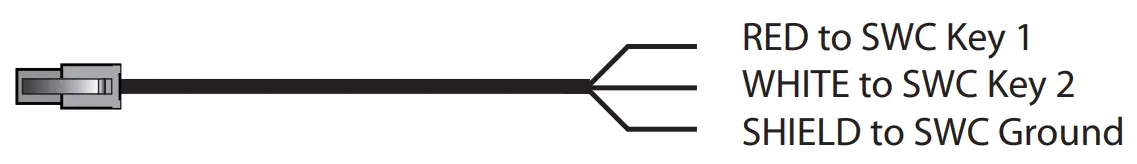

For aftermarket radios that have wires for SWC connections, cut off the 3.5mm plug on the Crux SWC Cable and connect the SWC wires as follows:

Note that there are some radios that only have SWC1 and SWC2, in this case “shield” does not need to be connected.

VEHICLE APPLICATIONS:

Hyundai
2018 – 2019 Accent
Kia
2018 – 2019 Rio
2017 – 2018 Sedona
2017 – 2019 Soul

NOTE: For non-touchscreen radios only.

http://www.cruxinterfacing.com
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev. 081022
