CRUX SWRHN-62B Radio Replacement Interface
PRODUCT FEATURES
- Retains factory features in select Honda vehicles while functioning with an aftermarket radio.
- Pre-programmed to retain factory Steering Wheel Controls.
- Retains Factory Auxiliary Input.
- Includes Antenna Adapter.
- EIA color coded wiring for easy installation.
NOTES:
- 1. Does not support amplified systems.
2. Does not retain Rear Seat Entertainment system (RSE).
3. Does not retain factory navigation system.

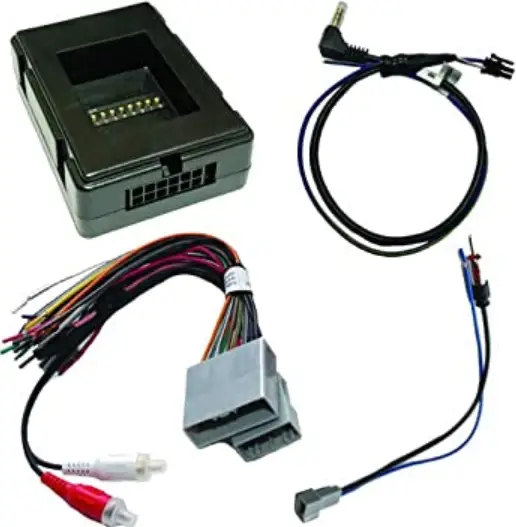

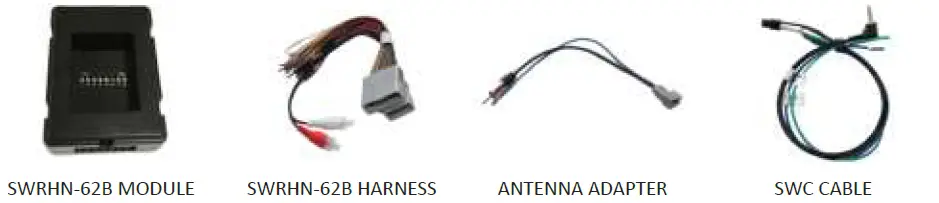

PARTS INCLUDED

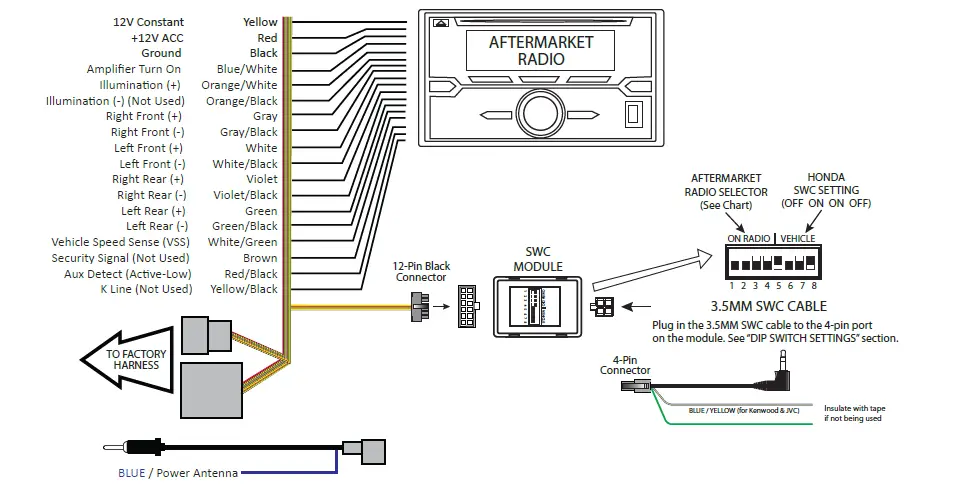

INSTALLATION DIAGRAM
DIP SWITCH SETTINGS
HONDA STEERING WHEEL CONTROL DIP SWITCH SETTING:

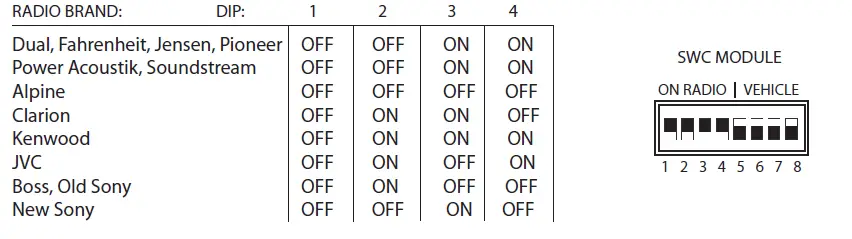

AFTERMARKET RADIO DIP SWITCH SETTINGS:
3.5MM SWC CABLE
Plug in the 3.5MM to 4-Pin SWC cable and set the DIP switches to the aftermarket radio you are using.
NOTE: Insulate the Blue/Yellow or Green/Black wires if not being used.

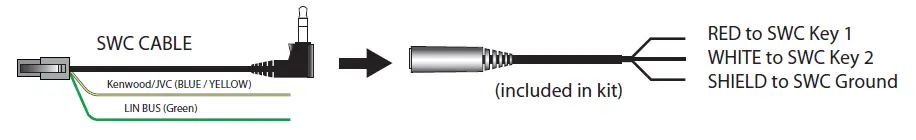

SWC 3.5MM PLUG ADAPTER:
Use the supplied 3.5MM SWC plug adapter for aftermarket radios that do not have a 3.5mm SWC jack.
VEHICLE APPLICATIONS
Honda
- 2006 – 2011 Civic / Si
- 2006 – 2011 CR-V
- 2010 – 2013 Insight (Non-Nav)
- 2008 – 2011 Odyssey
