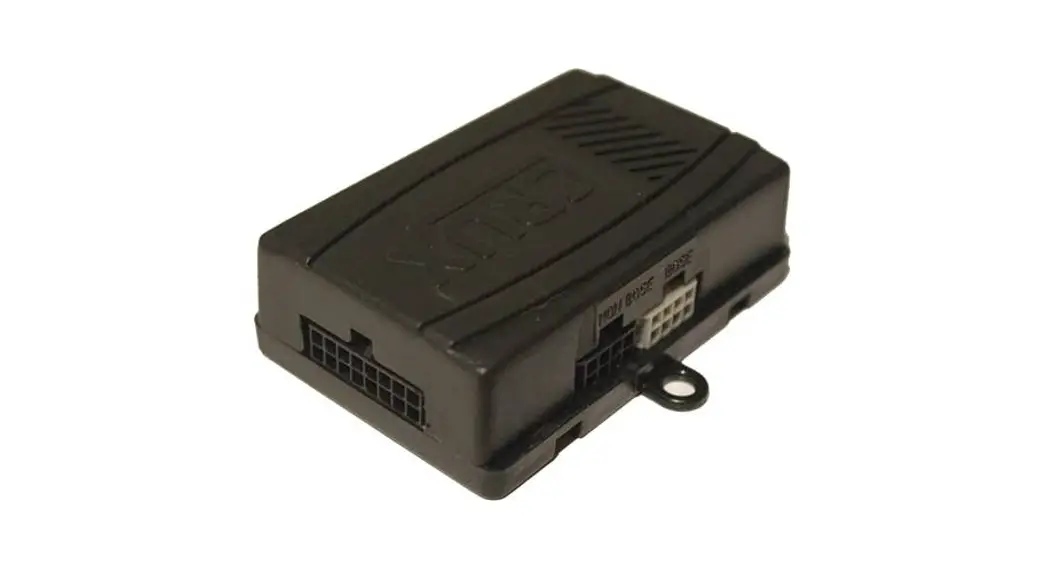

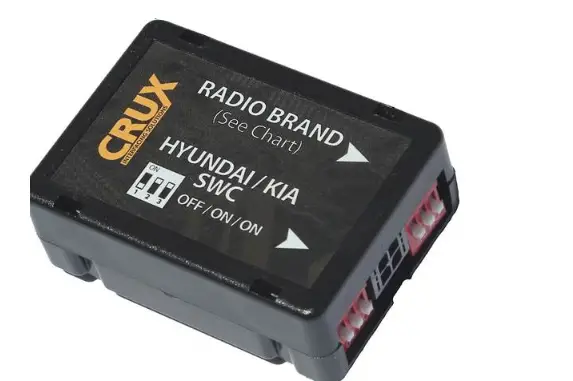

CRUX SWRHK-65Q Wiring Interface
PRODUCT FEATURES
- Retains factory features in select Hyundai and Kia vehicles while functioning with an aftermarket radio.
- Retains factory 3.5mm Aux Input Jack (if equipped).
- Retains factory USB port (if equipped).
- Retains factory backup camera (if equipped).
- Pre-programmed to retain factory Steering Wheel Controls.
- Includes antenna adapter.
PARTS INCLUDED
DIP SWITCH SETTINGS

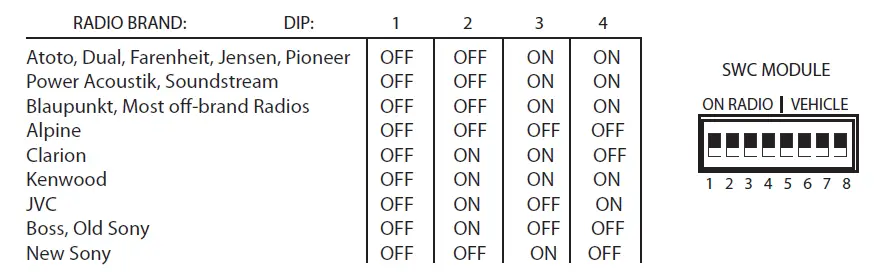

AFTERMARKET RADIO DIP SWITCH SETTINGS:

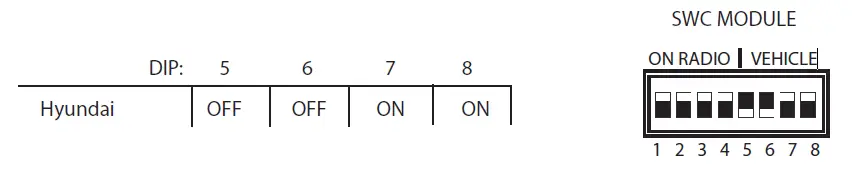

HYUNDAI / KIA STEERING WHEEL CONTROL DIP SWITCH SETTING:
3.5MM SWC CABLE

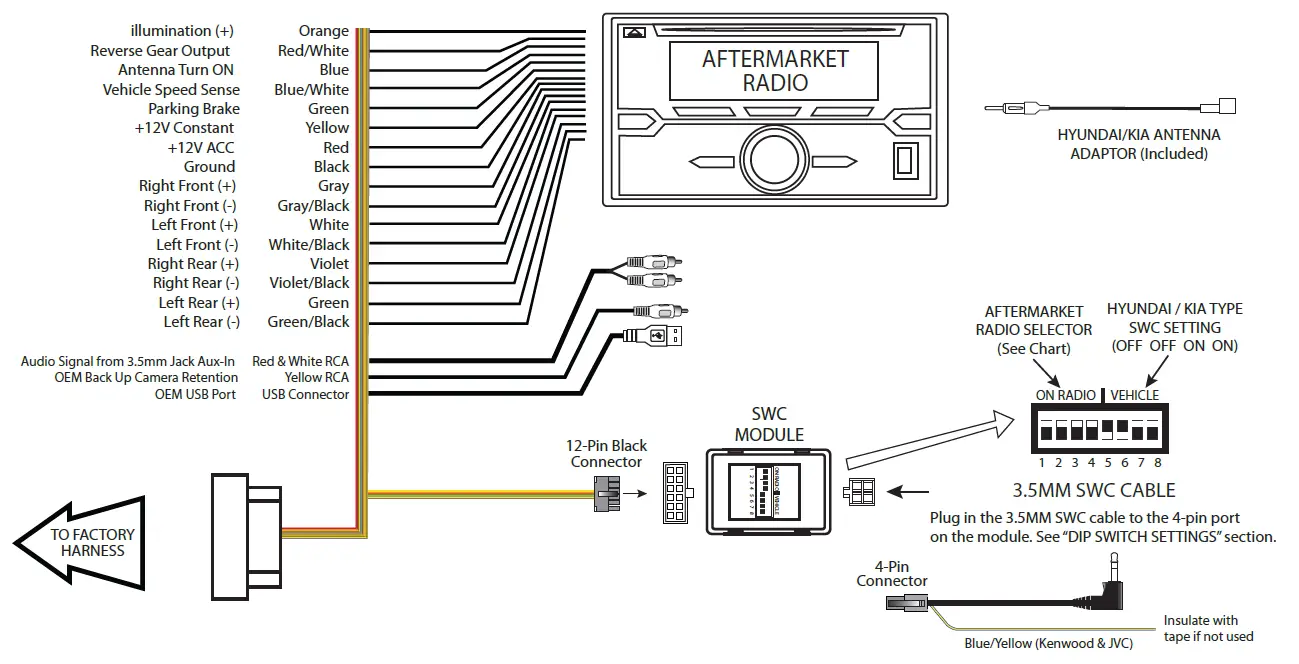

Plug in the 3.5MM to 4-Pin SWC cable and set the DIP switches to the aftermarket radio you are using.

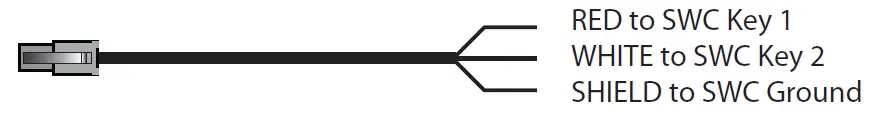

NOTE: Insulate the Blue/Yellow wire or 3.5mm plug if not being used. For aftermarket radios that have wires for SWC connections, cut off the 3.5mm plug on the Crux SWC Cable and connect the SWC wires as follows:
Note that there are some radios that only have SWC1 and SWC2, in this case “shield” does not need to be connected.
VEHICLE APPLICATIONS
Hyundai
2018 – 2019 Accent
Kia
- 2018 – 2019 Rio
- 2017 – 2018 Sedona
- 2017 – 2019 Soul
NOTE: For non-touchscreen radios only.
