SWRGM-49
Radio Replacement Interface with Steering Wheel Control
Retention for GM LAN 29-Bit Vehicles 2006-2015

PRODUCT FEATURES:

• Retains factory features in select GM LAN 29 Bit vehicles while functioning with an aftermarket radio.
• Pre-programmed to retain factory Steering Wheel Controls.
• iPhone Voice Recognition (VR) feature from SWC on select radios.
• Supports Pick Up/End Call, Pick up and Toggle between 1st and 2nd incoming call, AVRCP Track, Seek.
• Supports Bose, non-Bose and Y-91 audio systems.
• Retains chime functions.
• Provides Factory Rear Seat Entertainment Activation. Requires Cable #CRUX2333A (sold separately).
• Retains factory backup camera.*
• Retains factory backup sensors / park assist system.
• EIA color coded wiring for easy installation.

NOTE:
Does not retain the factory backup camera on models that show the camera image on the rearview mirror.

PARTS INCLUDED:

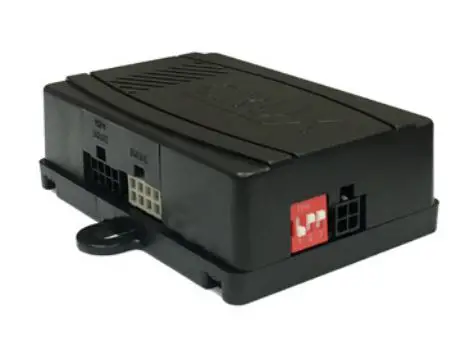

SWRGM-49 MODULE

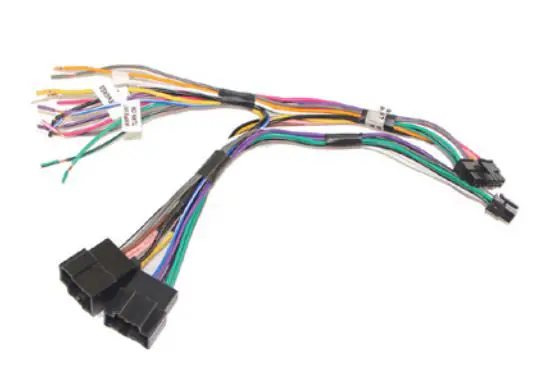

SWRGM-49 HARNESS

SWC CABLES

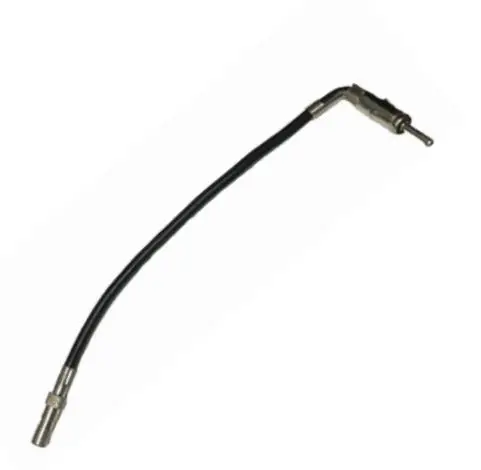

ANTENNA ADAPTER

Backup Camera Harness

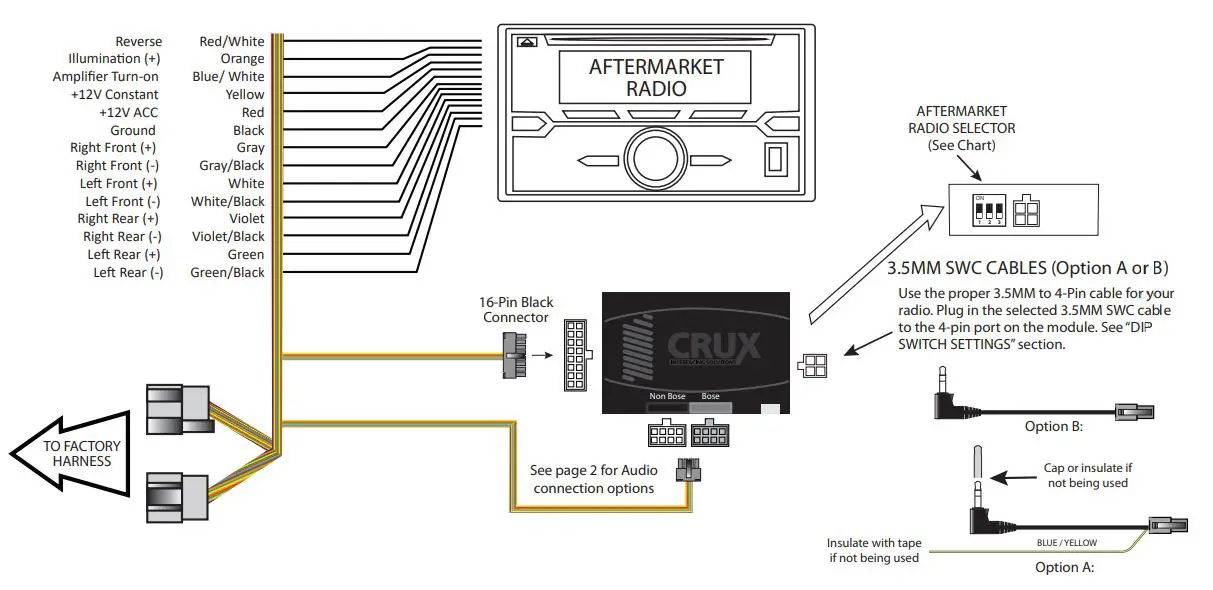

INSTALLATION DIAGRAM:

DIP SWITCH SETTINGS:

AFTERMARKET RADIO DIP SWITCH SETTINGS:

RADIO BRAND:                                     DIP#:             1            2              3

Atoto, Dual, Fahrenheit, Jensen                                       OFF       ON        ON
Pioneer, Power Acoustik, Sound stream                          OFF       ON        ON
Blaupunkt, Most off-brand Radio                                    OFF       ON         ON
Alpine                                                                              OFF       OFF       OFF
Clarion                                                                            ON         ON         OFF
Kenwood                                                                        ON         ON         ON
JVC                                                                                 ON         OFF       ON
Boss, Old Sony                                                               ON         OFF        OFF
New Sony                                                                       OFF        ON        OFF

SWC MODULE
DIP SWITCH

NOTE: For Atoto, Blaupunkt, Dual, Farenheit, Power Acoustik, Sound stream, and most off-brand radios, check the aftermarket radio’s manual to see if the SWC buttons need to be programmed.

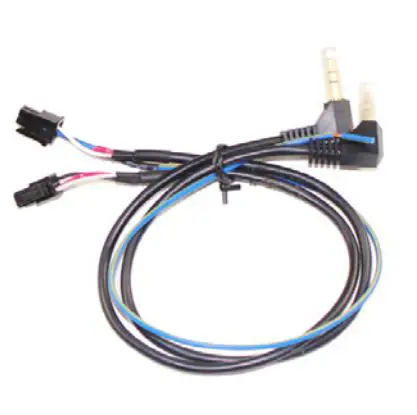

4-PIN SWC CABLE

Use the proper 3.5MM to 4-Pin SWC cable for the aftermarket radio you are using.

OPTION A is used for ALPINE, CLARION, JVC, and KENWOOD units (Blue/Yellow wire is attached)
OPTION B is used for ATOTO, BLAUPUNKT, BOSS, DUAL, FARENHEIT, JENSEN, POWER ACOUSTIK, PIONEER, SONY, SOUNDSTREAM and Most Off-Brand Radios.

NOTE: Cap or insulate the 3.5mm plug or Blue/Yellow wire if not being used

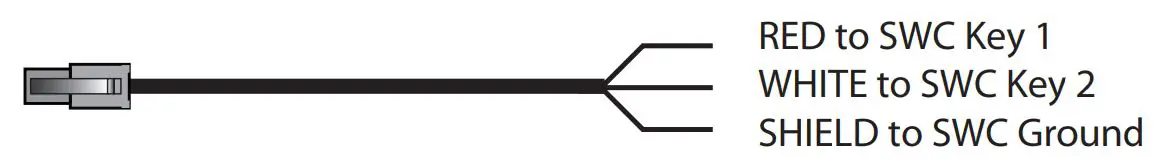

For aftermarket radios that have wires for SWC connections, cut off the 3.5mm plug on the Crux SWC Cable (option B) and connect the SWC wires as follows:

Note that there are some radios that only have SWC1 and SWC2, in this case “shield” does not need to be connected.

SELECTING THE AUDIO SYSTEM:

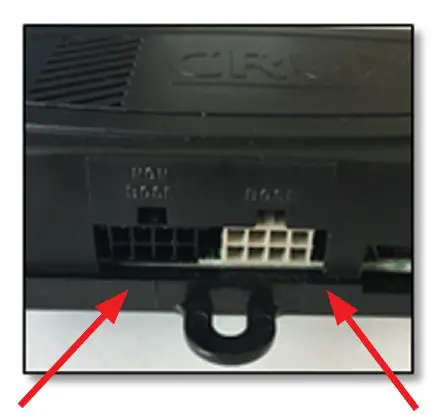

If the vehicle is equipped with an amplified audio system, the SWRGM-49 has a built-in audio level adaptor that outputs the proper audio level from the aftermarket radio to the factory amplifier. To use this feature, plug in the male 8-pin connector on the SWRGM-49 harness to the GRAY female 8-pin connector on the SWRGM-49 module. The module is also labeled “Bose” and “Non Bose” to avoid confusion. (see picture below)

If the vehicle is NOT equipped with a factory amplified system, plug in the male 8-pin connector to the BLACK female 8-pin on the SWRGM-49 module.

NON BOSE                                                                                                       BOSE
(Non-Amplified)                                                                                                (Amplified)
Connection                                                                                                        Connection

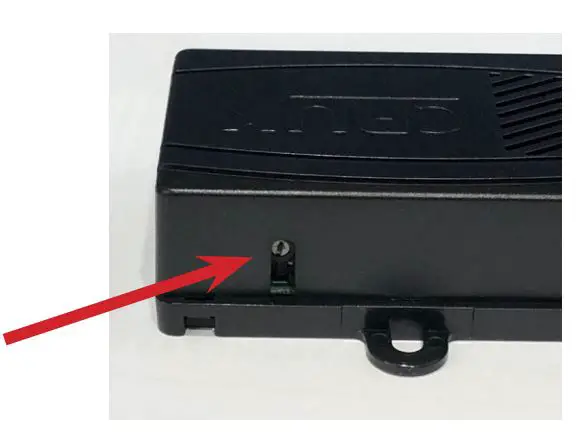

CHIME VOLUME ADJUSTMENT:

The SWRGM-49 has a potentiometer to adjust the chime volume. It is set at half way by default. To adjust the volume, simply use a suitable screw driver and turn the potentiometer clockwise to increase the volume and counter-clockwise to decrease the volume.

Chime
Volume
Adjustment

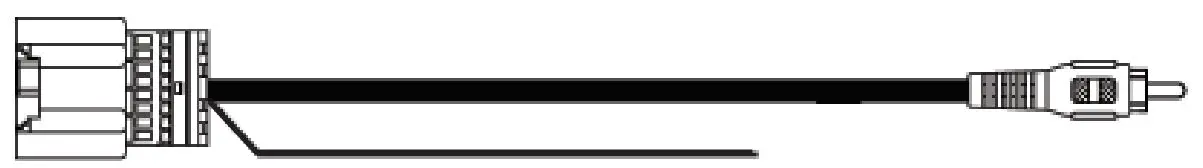

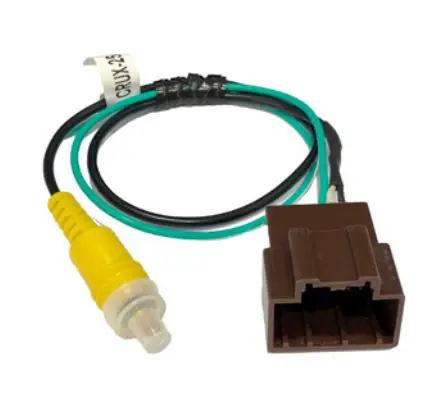

BACKUP CAMERA CONNECTION:

You can retain the factory back-up camera by using the CRUX 2543 harness included in the kit.

1. Connect the 16-pin back-up camera harness to the vehicle’s 16-pin factory backup camera connector.
2. Connect the Yellow video RCA to the new aftermarket radio camera input.
3. Test the video feed before installing the radio back into the dashboard.

VEHICLE SPEED SENSE (VSS)

NOTE:
Does not retain the factory backup camera on models that show the camera image on the rearview mirror.

VEHICLE APPLICATIONS:

BUICK
2008-2017                          Enclave
2006-2011                          Lucerne

CADILLAC
2007-2014                          Escalade
2007-2009                          SRX

CHEVROLET
2007-2013                         Avalanche*
2007-2008                        Equinox
2008-2016                        Express Van**
2006-2013                        Impala / Impala SS
2014-2016                        Impala Classic
2006-2007                        Monte Carlo
2007-2013                        Silverado 1500-3500 Pickup*
2007-2014                        Suburban*
2007-2014                        Tahoe*
2009-2017                        Traverse

GMC
2007-2016                        Acadia
2017                                Acadia Classic
2008-2017                       Savana**
2007-2013                       Sierra 1500-3500 Pickup*
2007-2014                       Yukon*

HUMMER
2008-2009                       H2

PONTIAC
2007-2009                       Torrent

SATURN
2007-2009                       Outlook
2008-2009                       Vue

SUZUKI
2007-2008                        XL7

1. *NOT compatible with 2012-Up SUVs/Trucks that are equipped with factory-installed Navigation radios.
2. **NOT compatible with Express and Savana vans that are powered by a diesel engine.

Crux Interfacing Solutions

Chatsworth, CA 91311

phone: (818) 609-9299

fax: (818) 996-8188

www.cruxinterfacing.com
