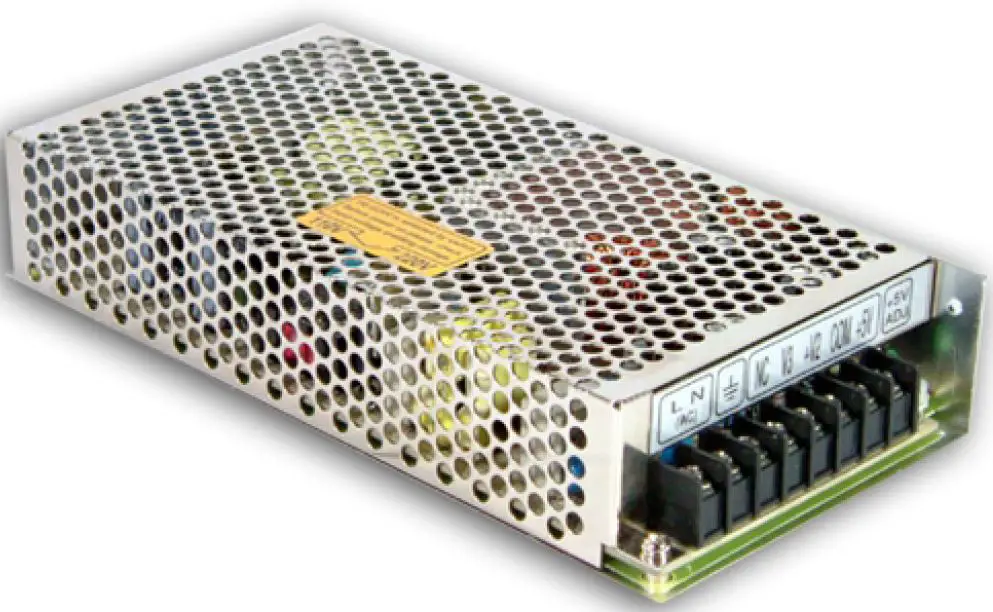

meanwell RT-125 Triple Output Switching Power Supply
Features
- Protections: Short circuit/Overload/Over voltage.
- Cooling by free air convection.
- LED indicator for power on 100% full load burn in test.
- All using 105°C long life electrolytic capacitor.
- Withstand 300VAC surge input for 5 second.
- High operating temperature up to 7o’c Withstand 5G vibration test High efficiency, long life and high reliability 3 years warranty.
GTIN CODE
MW Search: ittps:/www.meanwell.com/serviceGTIN aspy

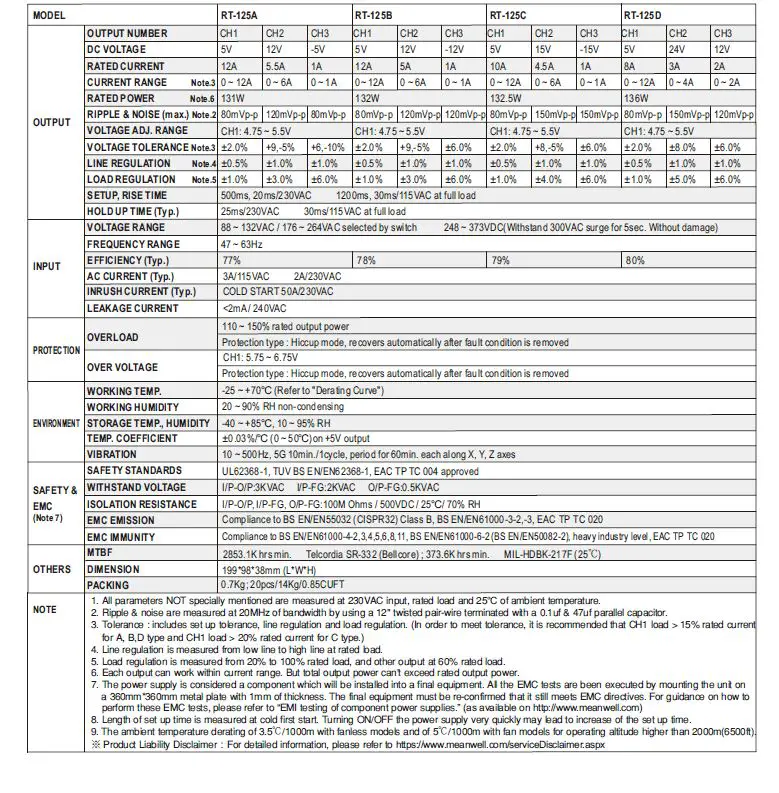

SPECIFICATION

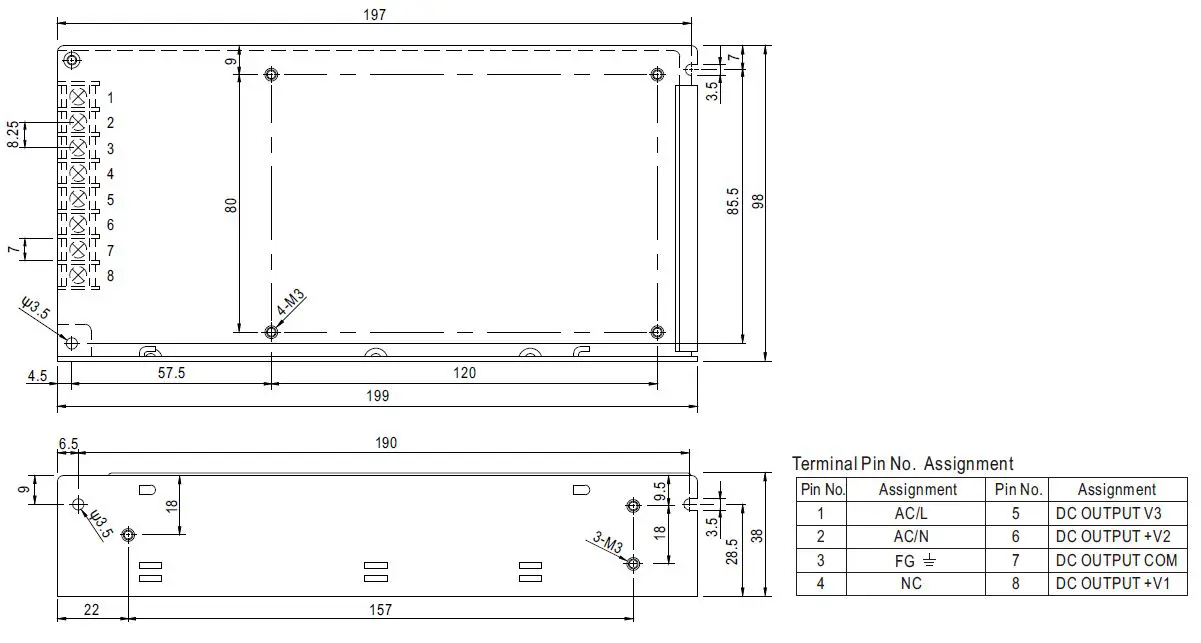

Mechanical Specification
Block Diagram

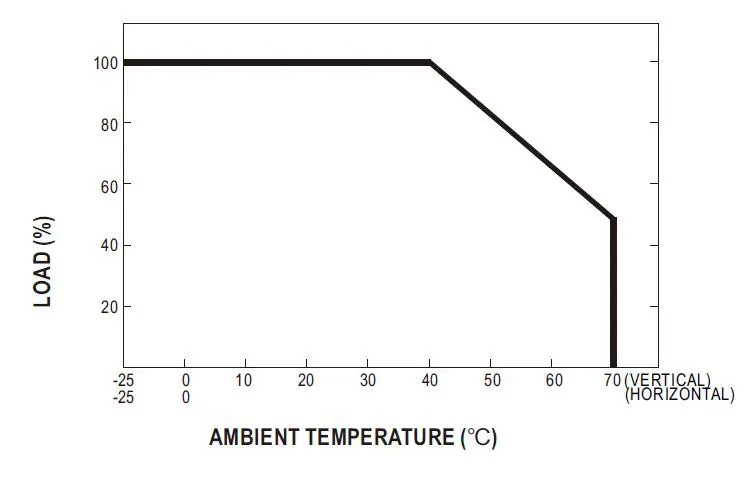

Derating Curve
Static Characteristics
