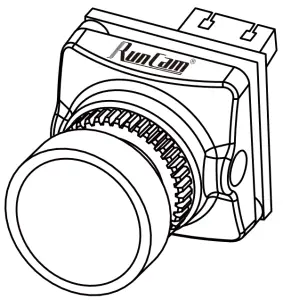

RunCam Eagle 3
USER MANUAL

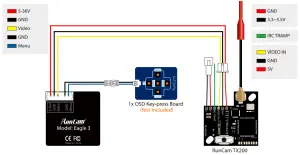

Joystick Control
Dimensions & Installation
- EXPOSURE MODE (GLOBE/BLC)

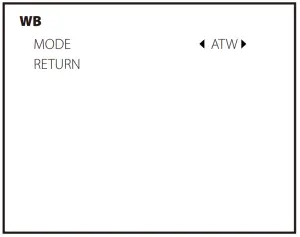

- MODE (ATW/MWB)

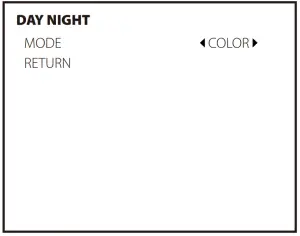

- MODE (COLOR / BW / EXT / AUTO)

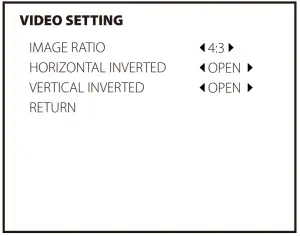

- IMAGE RATIO (4:3 /16:9)

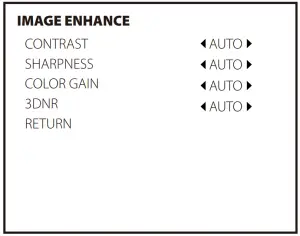

- CONTRAST (AUTO/MANUAL)
- SHARPNESS (AUTO/MANUAL)
- COLOR GAIN (AUTO/MANUAL)
Parameters
| Model | RunCam Eagle 3 | |
| Image Sensor | 1/2.8″ Starlight CMOS Sensor | |
| Horizontal Resolution | 1000TVL | |
| Lens | 2.1mm (M12) FOV155° (4:3) | |
| Screen Format | 4:3 / 16:9 switchable | |
| Mirror/Flip | Available | |
| Signal System | NTSC only | |
| S/N Ratio | >50dB (AGC OFF) | |
| Electronic Shutter Speed | Auto | |
| Auto Gain Control (AGC) | Auto | |
| Min. Illumination | [email protected] | |
| WDR | Global WDR | |
| Day/Night | Color/BW | |
| Menu Control | Cable Control | |
| Power | DC 5-36V | |
| Current | 220mA@SV | I 120mA@12V |
| Housing Material | ABS | |
| Net Weight | 9g | |
| Dimensions | 19mm*19mm*20mm | |
