Runcam Racer 5 Gyro Racing Fpv Camera User Manual

Runcam Racer 5
USER MANUAL

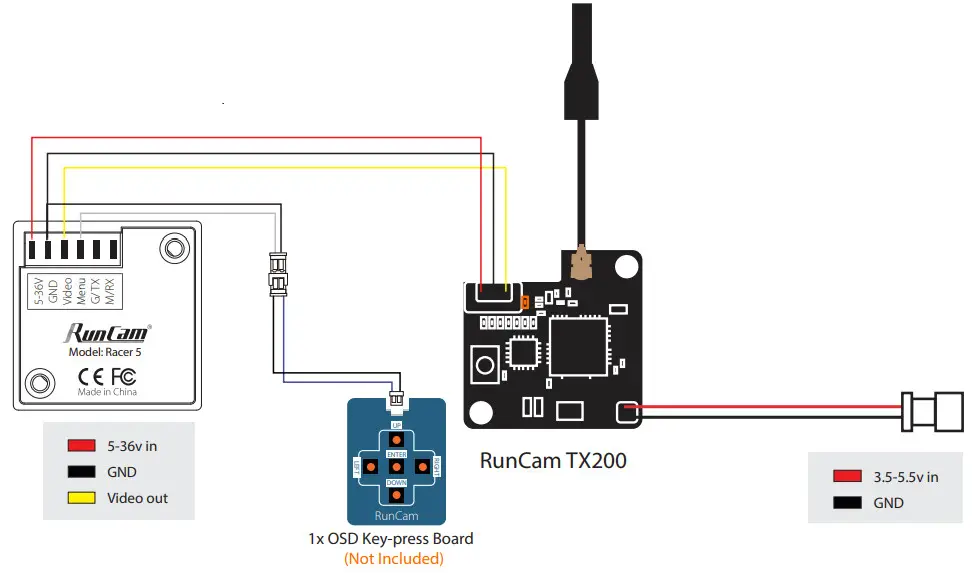

Joystick Control

UART Control

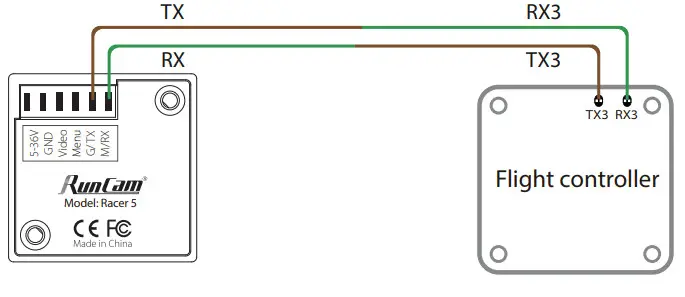

1. Flight controller wiring
   Note: Take UART3 for example

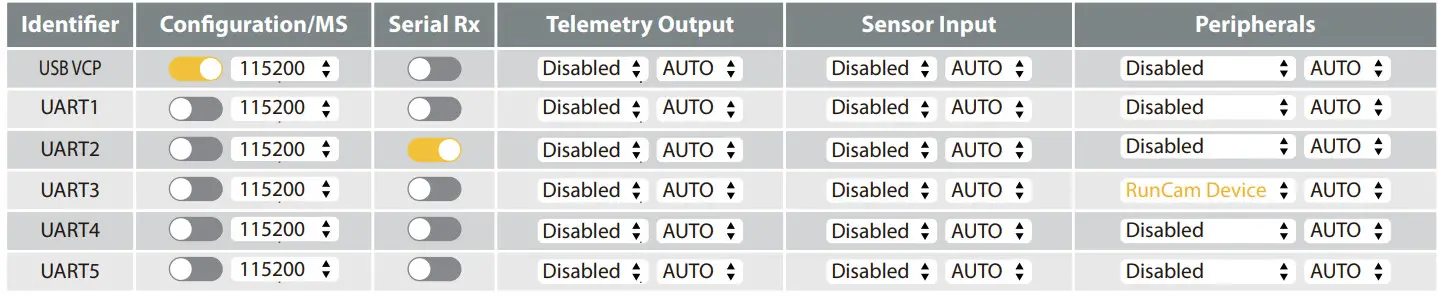

2. Betaflight 3.3 or above setting

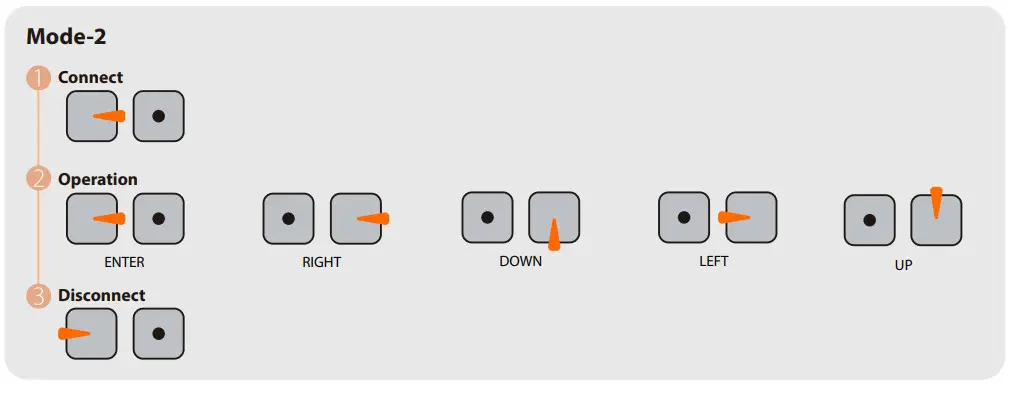

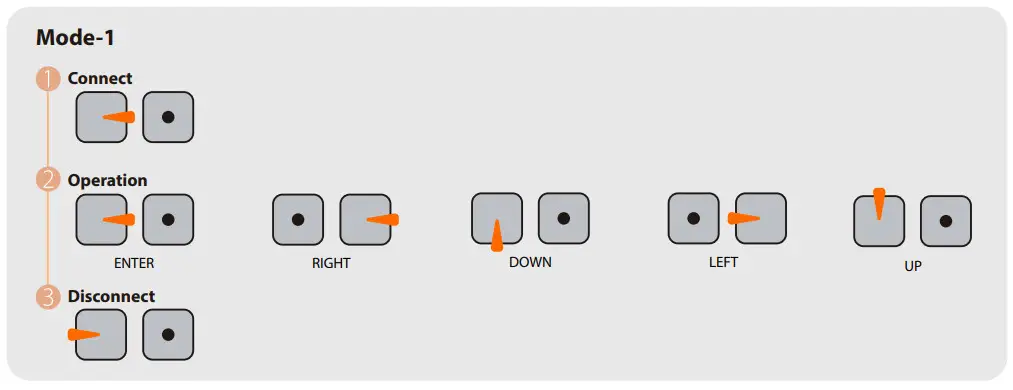

3. UART Control

When connected, The buzzer on Flight Controller will beep for 3 times; When disconnected, The buzzer on Flight Controller will beep for 2 times only; If connected successfully, you can long-press the up button to enter the OSD menu, right button to switch preset scenes, left button to calibrate voltage and down button to reset OSD.

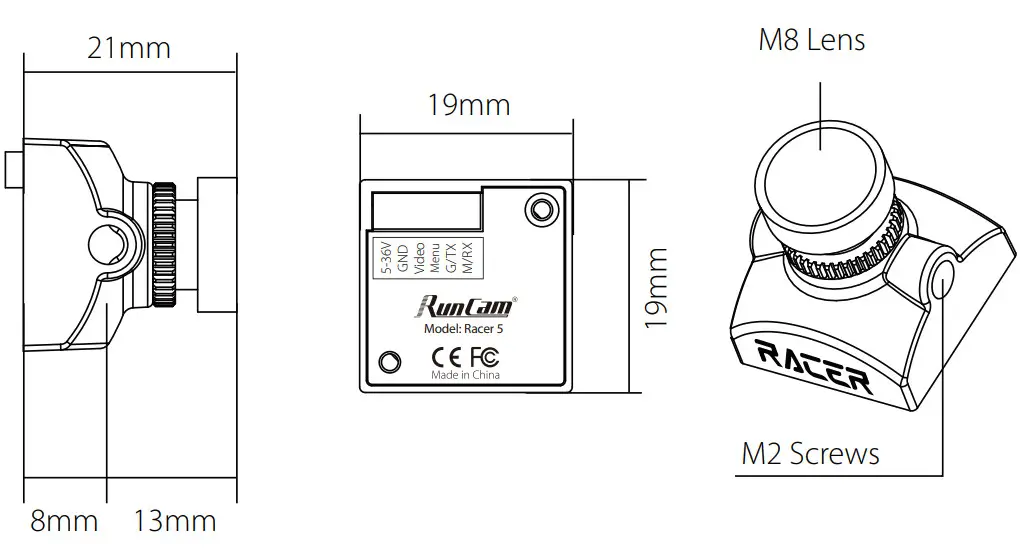

Dimensions & Installation

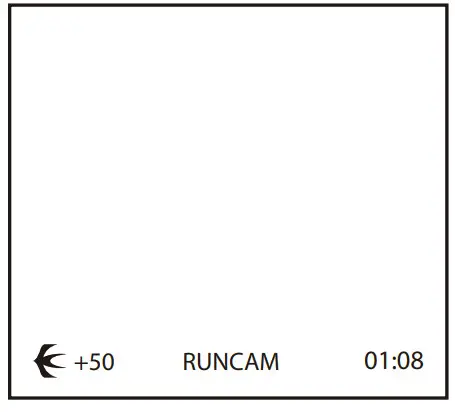

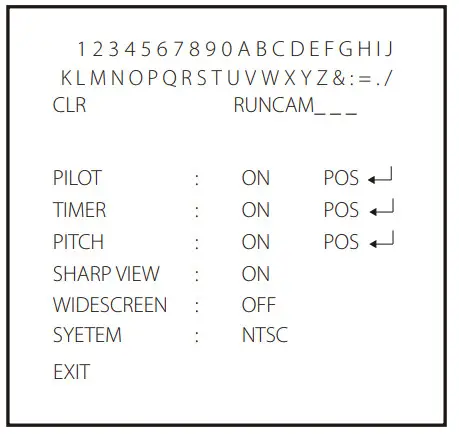

OSD Menu

QUICK SETTINGS

Quick settings:

• Long press UP button for three seconds to access to the OSD setting‘s screen
• Long press the LEFT button for three seconds to calibrate the Gyro,The Racer5 camera PCB must be kept horizontal.
• Long press DOWN button for six seconds to reset OSD settings to default
• Long press the RIGHT button for three seconds to switch between the camera presets
• CLR: clear the ID character;
• ALARM: low voltage warning value, smartly judge the warning value of the battery when it’s low; if set it manually, then it saves the manual preset value;
• Press the middle button to switch ON / OFF, then move to POS to enter the position adjustment.
• Sharp View: Turn on, it will increase the image details, but also noise.
• WIDESCREEN: Dynamic stretching to the aspect ratio of 16:9 to match with a screen in 16:9, the image center won’t change but the edge will be widened.

Camera Menu

SETUP MENU

• LANGUAGE: ENGLISH
• FLIP ( OFF / H-FLIP / V-FLIP / HV-FLIP )
• BRIGHTNESS ( 128/ 0-255 )
• CONTRAST ( 138 / 0-255 )
• SHARPNESS ( 128 / 0-255 )
• HUE ( 90 / 0-180 )
• COLOR GAIN ( 138 / 0-255 )

Parameters
