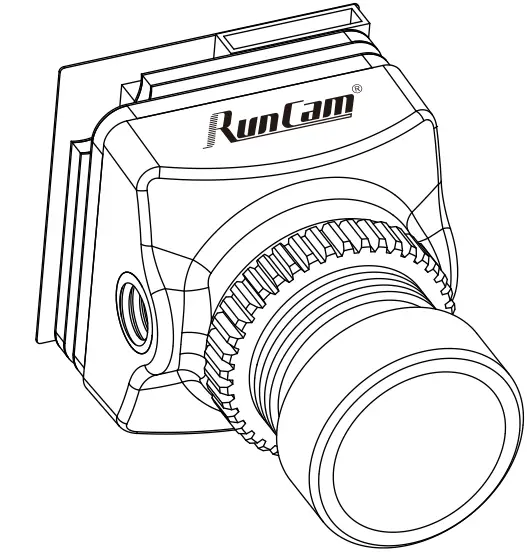

RunCam Phoenix 2 Nano FPV Camera

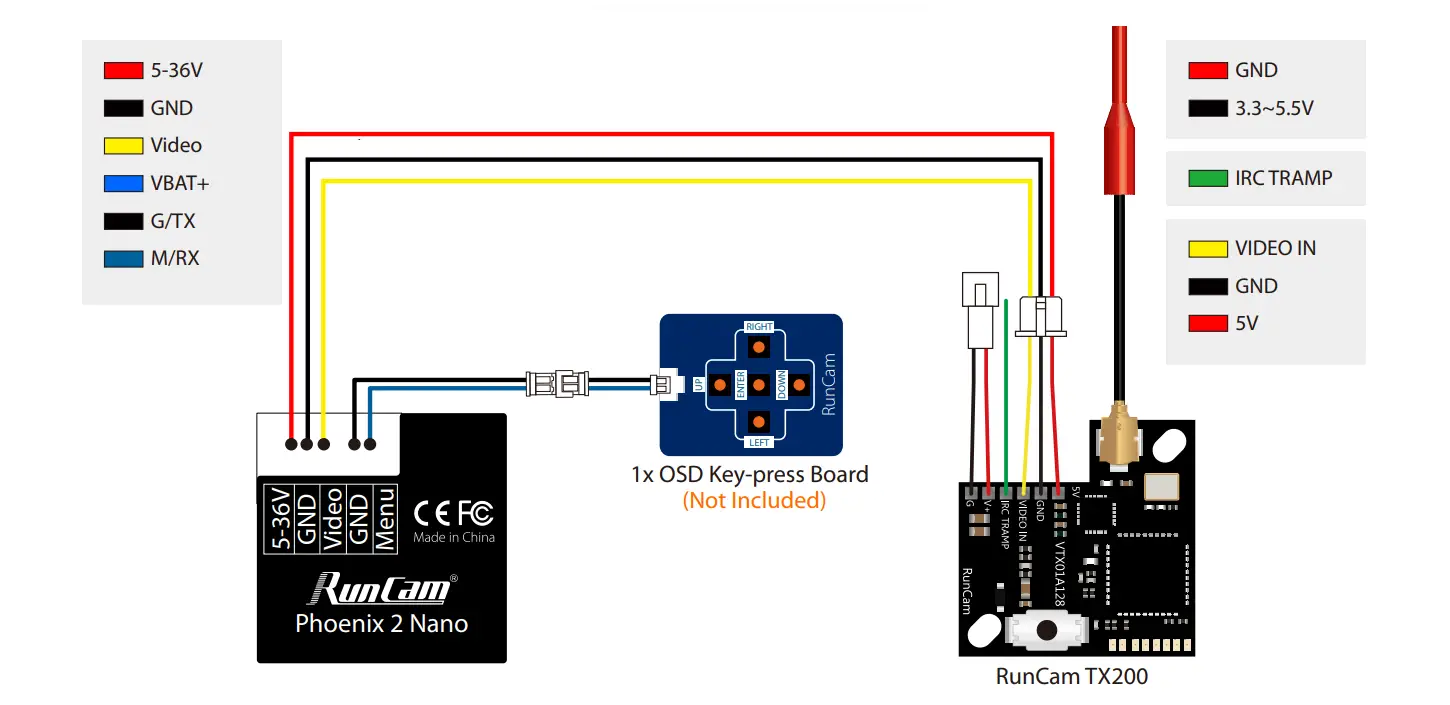

Joystick Control

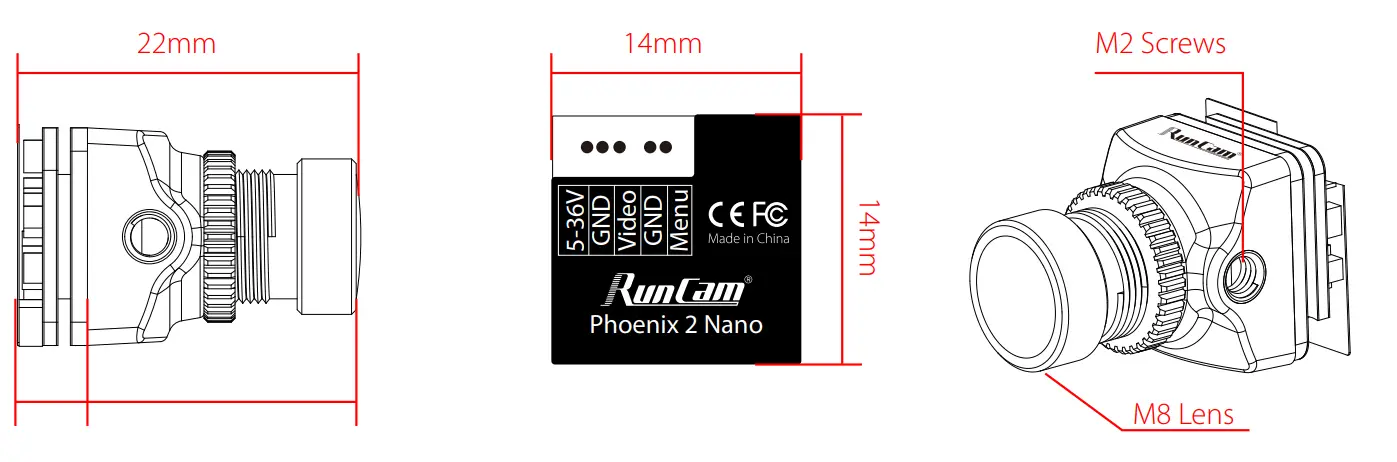

Dimensions & Installation
Camera Menu
RunCam Phoenix 2 Nano FPV Camera
Joystick Control
Dimensions & Installation
Camera MenuMAIN MENU
- AE
- WB
- DAY NIGHT
- IMAGE ENHANCE
- VIDEO SETTING
- LANGUAGE
- RESETSAVE ZEIT
- EXIT
EXPOSURE
- BRIGHTNESS:12
- EXPOSURE MODE: GLOBE
- ADVANCED
- RETURN
- EXPOSURE MODE (GLOBE/BLC)
WB
- MODE: ATW
- RETURN
- MODE (ATW/MWB)
DAY NIGHT
- MODE: COLOR
- RETURN
- MODE (COLOR / BW / EXT / AUTO)
VIDEO SETTING
- VIDEO STANDARD: NTSC
- HD FORMAT: CVBS
- IMAGE RATIO:4:3
- HORIZONTAL INVERTED: CLOSE
- VERTICAL INVERTED: CLOSE
- WDR: CLOSE
- RETURN
- VIDEO STANDARD (NTSC/PAL)
- IMAGE RATIO (4:3 /16:9)
- VIDEO STANDARD (NTSC/PAL)
- IMAGE RATIO (4:3 /16:9)
IMAGE ENHANCE
- CONTRAST: AUTO
- SHARPNESS:AUTO
- COLOR GAIN: AUTO
- 3DNR: AUTO
- RETURN: AUTO
- CONTRAST (AUTO/MANUAL)
- SHARPNESS (AUTO/MANUAL)
- COLOR GAIN (AUTO/MANUAL)
Parameters
| Model | RunCam Phoenix 2 Nano |
| Image Sensor | 1/2″ COMS Sensor |
| Horizontal Resolution | 1000TVL |
| Lens | 2.1mm (M8) FOV155° (4:3) |
| Screen Format | 4:3 / 16:9 switchable |
| Mirror/Flip | Available |
| Signal System | PAL / NTSC Switchable |
| S/N Ratio | >50dB (AGC OFF) |
| Electronic Shutter Speed | Auto |
| Auto Gain Control (AGC) | Auto |
| Min. Illumination | 0.001L[email protected] |
| WDR | Global WDR |
| Day/Night | Color/BW/EXT/Auto |
| Menu Control | Cable Control |
| Power | DC 5-36V |
| Current | 190mA@5V/80mA@12V |
| Housing Material | ABS |
| Net Weight | 5g |
| Dimensions | 14mm*14mm*22mm |
