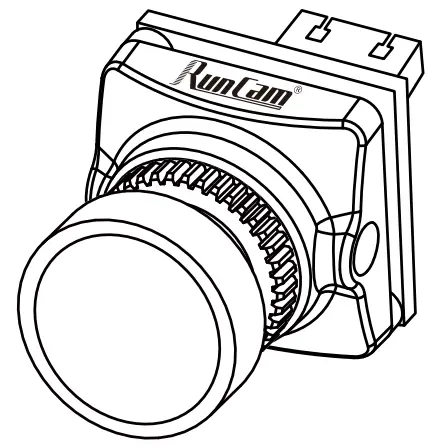

RunCam Phoenix 2 Micro FPV Camera

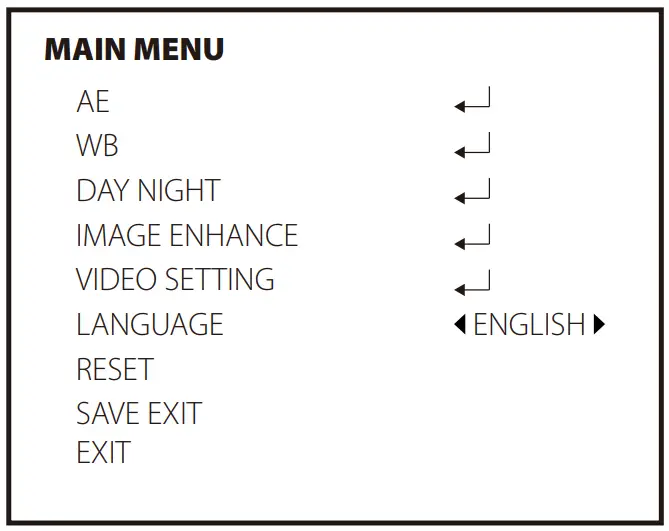

Joystick Control

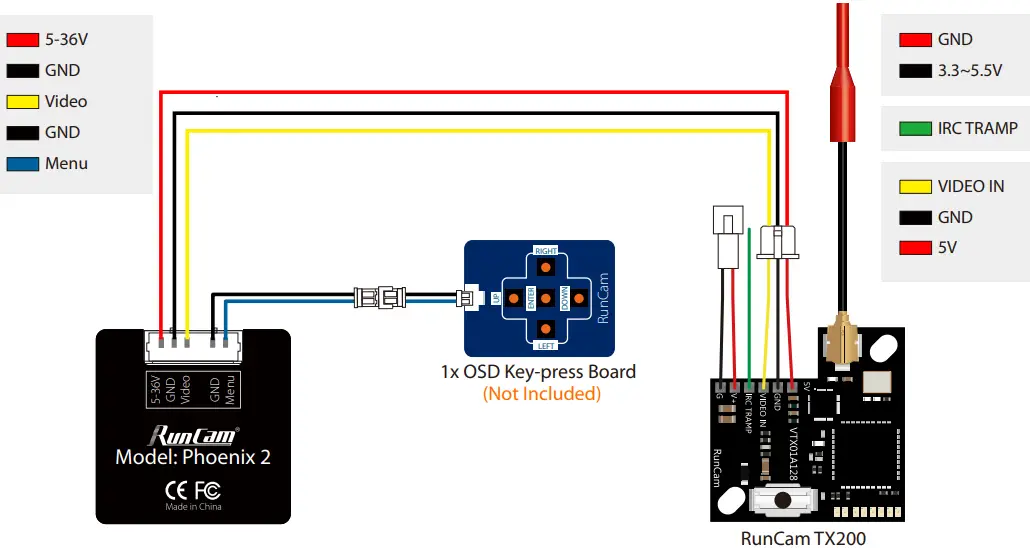

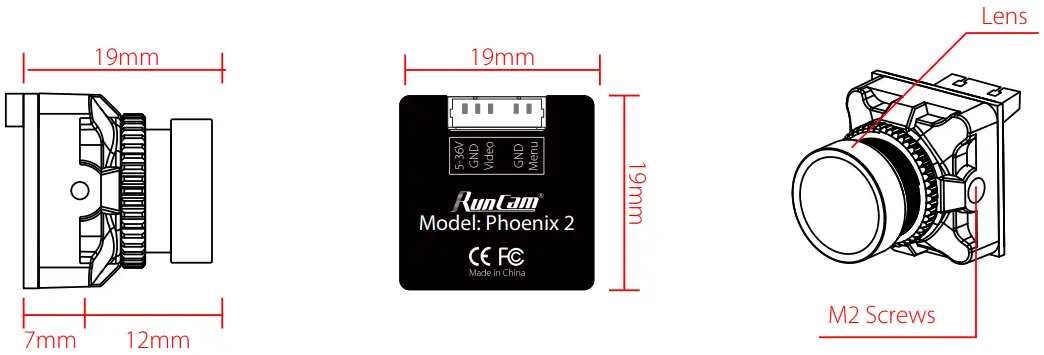

Dimensions & Installation

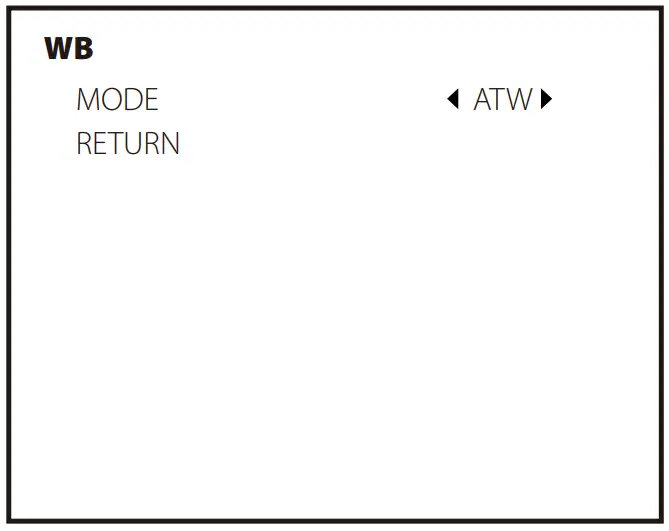

MODE (ATW/MWB)

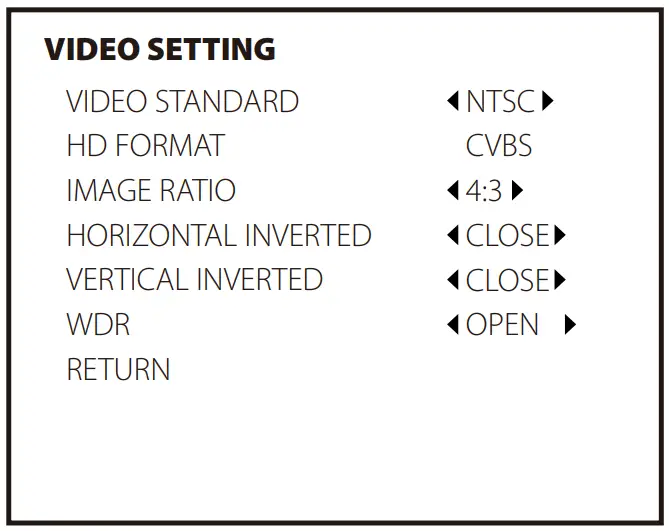

VIDEO STANDARD (NTSC/PAL)
IMAGE RATIO (4:3 /16:9)
EXPOSURE MODE (GLOBE/BLC)

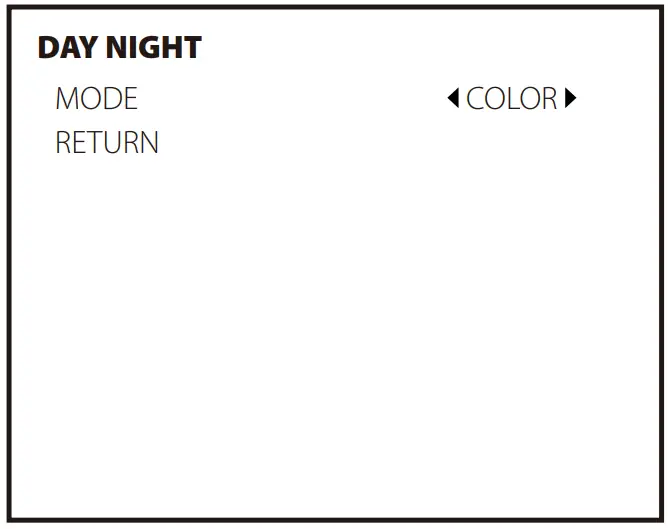

MODE (COLOR / BW / EXT / AUTO)

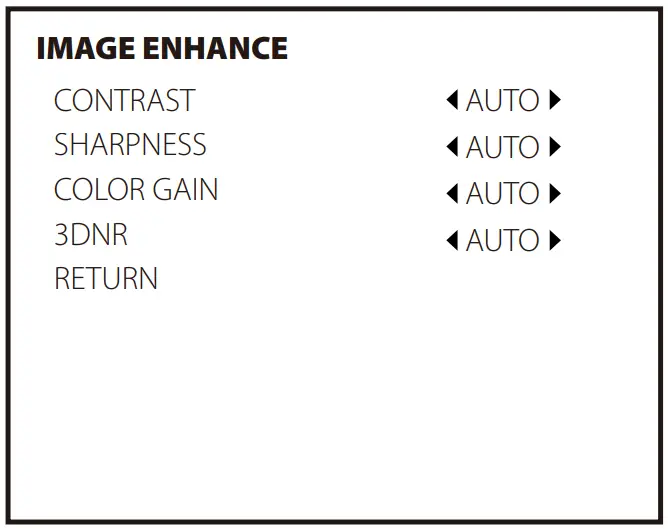

CONTRAST (AUTO/MANUAL)
SHARPNESS (AUTO/MANUAL)
COLOR GAIN (AUTO/MANUAL)
Parameters
| Model | RunCam Phoenix 2 | |
| Image Sensor | 1/2″ COMS Sensor | |
| Horizontal Resolution | 1000TVL | |
| Lens | 2.1mm (M12) FOV155° (4:3) | |
| Screen Format | 4:3 / 16:9 switchable | |
| Mirror/Flip | Available | |
| Signal System | PAL / NTSC Switchable | |
| S/N Ratio | >50dB (AGC OFF) | |
| Electronic Shutter Speed | Auto | |
| Auto Gain Control (AGC) | Auto | |
| Min. Illumination | [email protected] | |
| WDR | Global WDR | |
| Day/Night | Color/BW/EXT/Auto | |
| Menu Control | Cable Control | |
| Power | DC 5-36V | |
| Current | 220mA@5V | 120mA@12V |
| Housing Material | ABS | |
| Net Weight | 9g | |
| Dimensions | 19mm*19mm*20mm | |
