Runcam Racer 5 User Manual

Runcam Racer 5
USER MANUAL

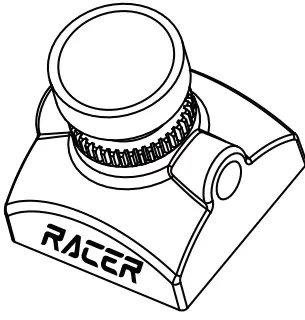

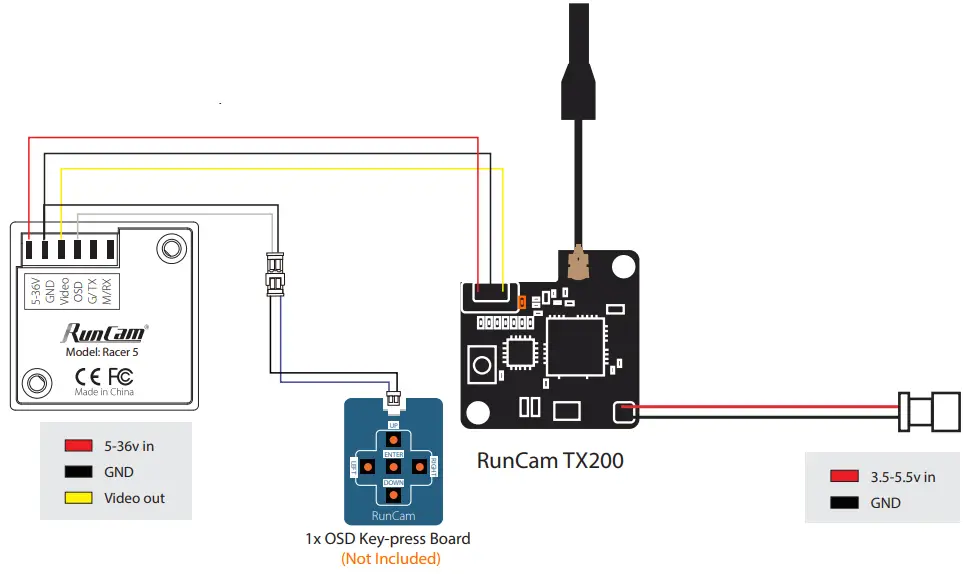

Joystick Control

UART Control

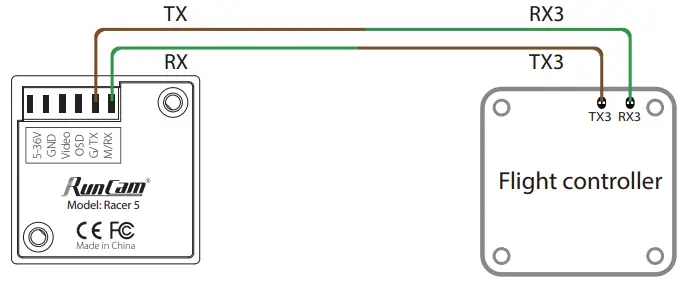

1. Flight controller wiring
   Note: Take UART3 for example
2. Betaflight 3.3 or above setting


   Identifier	Configuration/MS	Serial Fix	Telemetry  Output	Sensor Input	Peripherals
   USB VCP	115200		Disabled   AUTO	Disabled AUTO	Disabled AUTO :
   UART1	115200		Disabled AUTO	Disabled   AUTO	Disabled   AUTO
   UART2	115200		Disabled AUTO	Disabled   AUTO	Disabled   AUTO
   UART3	115200		Disabled AUTO	Disabled AUTO	RunCam Device AUTO
   UART4	115200		Disabled AUTO	Disabled    AUTO	Disabled   AUTO
   UART5	115200		Disabled AUTO	Disabled  AUTO	Disabled   AUTO

3. UART Control

* When connected, The buzzer on Flight Controller will beep for 3 times; When disconnected, The buzzer on Flight Controller will beep for 2 times only; If connected successfully, you can long-press the up button to enter the OSD menu, right button to switch preset scenes, left button to calibrate voltage and down button to reset OSD.

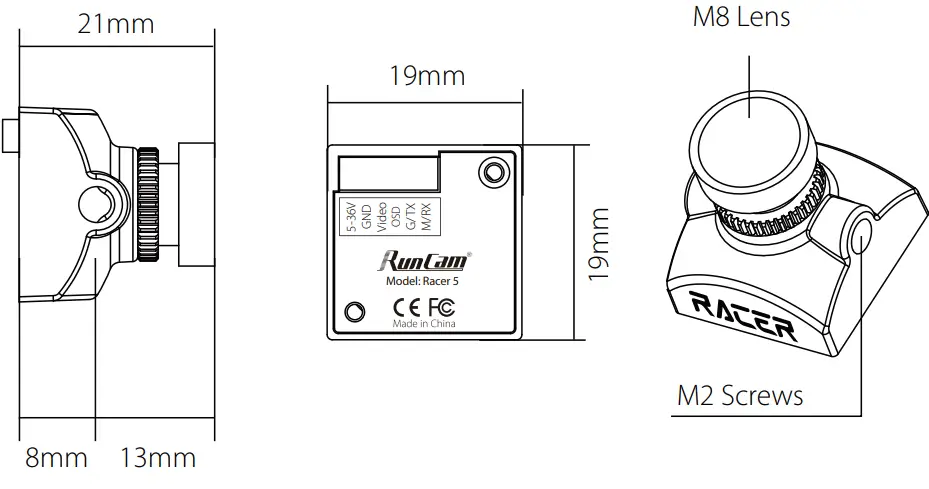

Dimensions & Installation

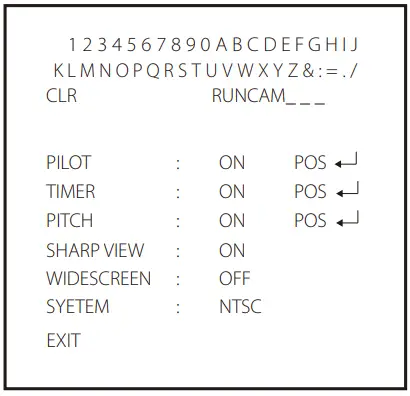

OSD Menu

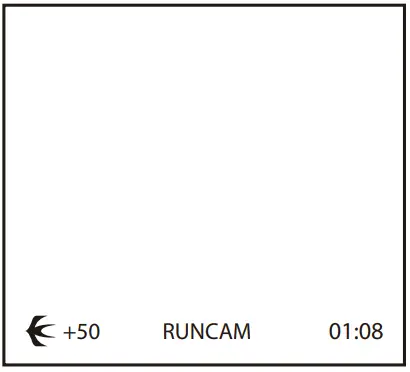

•  QUICK SETTINGS

Quick settings:

•  Long press UP button for three seconds to access the OSD setting‘s screen
•  Long press the LEFT button for three seconds to calibrate the Gyro, The Racer5 camera PCB must be kept horizontal.
•  Long press DOWN button for six seconds to reset OSD settings to default
•  Long press the RIGHT button for three seconds to switch between the camera presets

• CLR: clear the ID character;
•  ALARM: low voltage warning value, smartly judge the warning value of the battery when it’s low; if set it manually, then it saves the manual preset value;
•  Press the middle button to switch ON / OFF, then move to POS to enter the position adjustment.
•  Sharp View: Turn on, it will increase the image details, but also noise.
•  WIDESCREEN: Dynamic stretching to the aspect ratio of 16:9 to match with a screen in 16:9, the image center won’t change but the edge will be widened.

Camera Menu

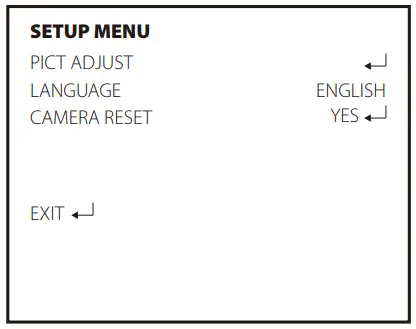

• · SETUP MENU
• LANGUAGE ( ENGLISH / DEUTSCH / FRANCAIS / PYCCKNN / PORTUGUES / ESPANOL / 中文 )

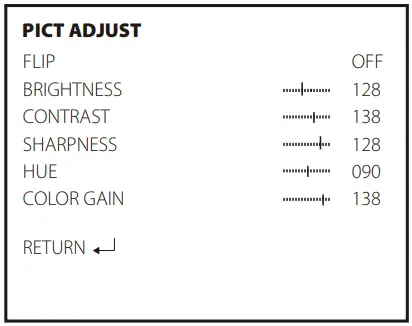

• FLIP ( OFF / H-FLIP / V-FLIP / HV-FLIP )
•  BRIGHTNESS ( 128/ 0-255 )
• CONTRAST ( 138 / 0-255 )
•  SHARPNESS ( 128 / 0-255 )
•  HUE ( 90 / 0-180 )
•  COLOR GAIN ( 138 / 0-255 )

Parameters
