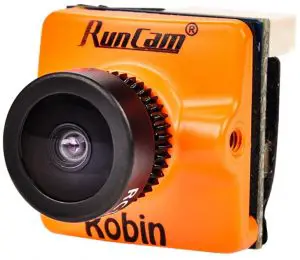

RunCam Robin User Manual

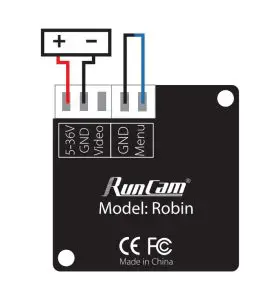

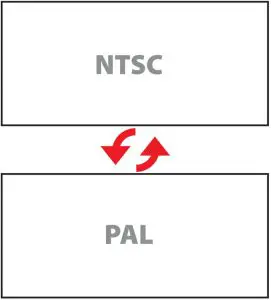

NTSC & PAL System Switchable
The default is NTSC system. If you want to change to PAL system, please:

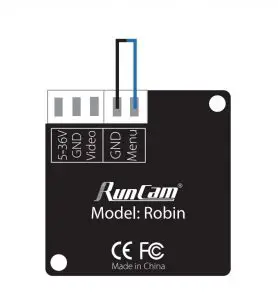

- Short-circuit the two camera control pins.
- Then power on, camera will restart in PAL system in about 2 seconds.
- The system can be saved after power off. After switching to the desired system, please unplug the short-circuit cable.

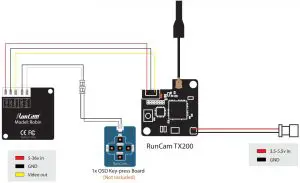

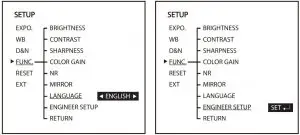

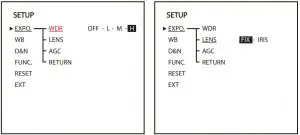

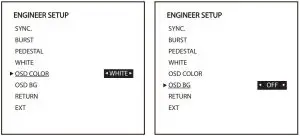

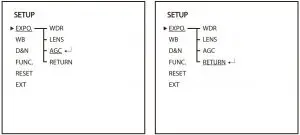

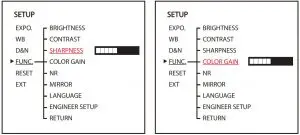

Joystick Control

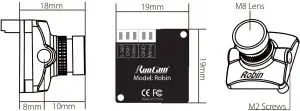

Dimensions & Installation
Parameters
Modell | Robiin |
| Image Sensor | 1/3″ 120dB WDR CMOS |
Horizontal Resolution | 700TVL |
| Lens | 1.8mm (M8) FOV160° 2.1mm(M8) FOV 145° |
Mirror/Flip | Available |
| Signal System | NTSC / PAL Switchable |
S/N Ratio | >50dB |
| Electronic Shutter Speed | Auto |
Auto Gain Control (AGC) | Auto |
| Min. Illumination | |
WDR | 120dB |
| DNR | 2DNR |
Day/Night | Color/B&W |
| Menu Control | JOYSTICK |
Power | DC 5-36V |
| Current | 120mA@5V 50mA@12V |
Housing Material | ABS |
| Net Weight | 5.5g |
Dimensions | L19mm*W19mm*H18mm |
| Latency | 6ms(Min) |
