RunCam Micro Eagle Remote Control Version User Manual

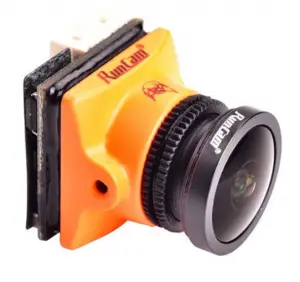

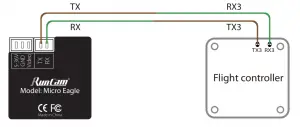

1.Flight controller wiring
Note: Take UART3 for example
2.Betaflight 3.3 or above setting

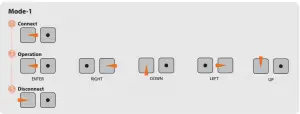

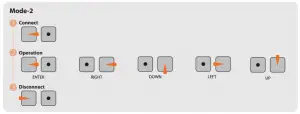

3.Remote control
When connected, The buzzer on Flight Controller will beep for 3 times; When disconected, The buzzer on Flight Controller will beep for 2 times only.
| MAINMENU | IMAGE | |||
| IMAGE | MAX GAIN | 7 | ||
| DAY&NIGHT VIDEO STANDARD SCREEN FORMAT | Color PAL-50HZ 4-3 | WDR IMAGE ENHANCE MIRROR | 5 OFF | |
| LANGUAGE | ENGLISH | FLIP | OFF | |
| LOAD DEFAULT | BRIGHTNESS | 36 | ||
| SOFT VERSION | ZOOM IN | 0 | ||
| SAVE&EXIT | RETURN | |||
| EXIT |
- DAY&NIGHT (Color/B&W/Auto/External)
- VIDEO STANDARD (PAL-50Hz/NTSC-60Hz)
- SCREEN FORMAT (4-3/16-9)
- LANGUAGE (English/中文)
- MAX GAIN (7 / 1-9)
- WDR (5 / 1-6)
- MIRROR (OFF/ON)
- FLIP (OFF/ON)
- BRIGHTNESS (36 / 8-250)
- ZOOM IN (0 / 0-5)
IMAGE ENHANCE
SHARPNESS
SATURATION
RETURN
IMAGE ENHANCE
DETAIL MANUAL
VALUE 6
EDGE MANUAL
VALUE 6
RETURN
- SHARPNESS (DETAIL / EDGE)
- SATURATION (AUTO/MANUAL: 0-15)
- DETAIL (MANUAL: 0-15 / AUTO)
- EDGE (MANUAL: 0-15 / AUTO)
Parameters
| Model | RunCam Micro Eagle | |
| Image Sensor | 1/1.8″ CMOS Sensor | |
| Horizontal Resolution | 800TVL | |
| FOV | FOV 170 @ 16:9 | FOV 140 @ 4:3 |
| Screen Format | 16:9 / 4:3 Switchable on OSD menu | |
| Signal System | NTSC / PAL Switchable on OSD menu | |
| Mirror/Flip | Yes | |
| S/N Ratio | >50dB | |
| Electronic Shutter Speed | Auto | |
| Max Gain | 1-9 Level | |
| Min. Illumination | 0.001L[email protected] | |
| WDR | Global WDR 1-6 Level | |
| Day/Night | Auto / External / Color / B&W | |
| Remote Control | Yes | |
| Power | DC 5-36V | |
| Current | 200mA@5V / 90mA@12V | |
| Housing Material | ABS | |
| Net Weight | 8.5g | |
| Dimensions | L19mm*W19mm*H22mm | |
