FOXEER Falkor Mini 1200TVL M12 1.7mm FPV Camera User Manual

WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before operating. Failure to operate the product correctly can result in damage to the product, personal property and cause serious injury.

Age Recommendation: Not for children under 14 years. This is not a toy

NOTICE: This product is only intended for use with unmanned, hobby- grade, remote-controlled vehicles and aircraft. FOXEER disclaims all liability outside of the intended purpose and will not provide warranty service related thereto.
SUPPORT: Visit www.foxeer.com/ to get more information.

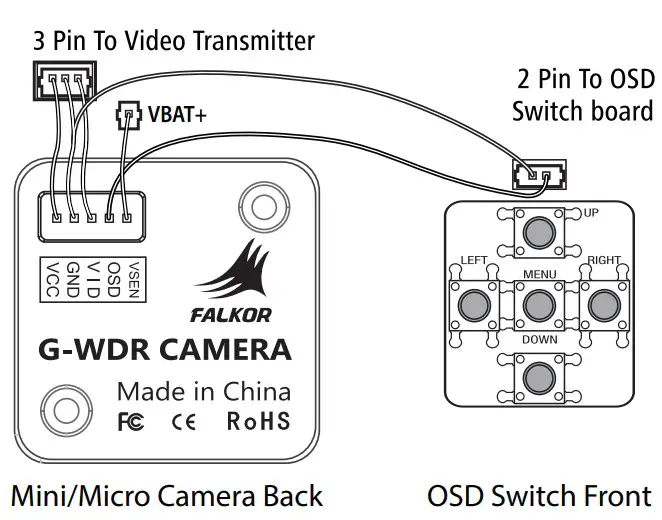

CAMERA-OSD SWITCH CONNECTION

5 Pin Harness

VCC DC 4.6-20V In (Red)
GNO Ground Wire(Black)
VIO Video out(Yellow)
VSEN Voltagesenser(Blue)
OSD OSO (White)
CAUTION: If you are using ESC’s with active braking, we recommend powering the camera system through a BEC or voltage regulator.

CAMERA-VIDEO TRANSMITTER CONNECTION

To connect the camera directly to the video transmitter, plug the 3 pin wiring harness from the video transmitter into the camera, or you can
power the camera by other device, PDB, FC, Bat…

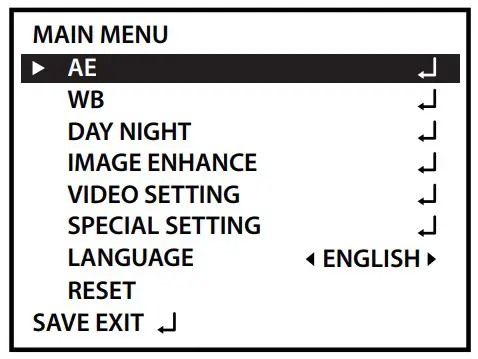

Main MENU

MENU: Push MENU(center button) to go to the main menu.
UP/DOWN: Move up and down through the menu.
Left/Right: Modify the menu parameters.

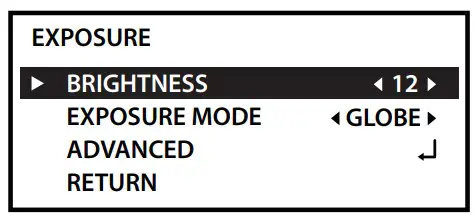

AE

Auto Exposure.

1. BRIGHTNESS: 0~30.

2. EXPOSURE MODE:
   • GLOBE(Global)
   • FLC(Front light control): 1~8
   • BLC(Back light control): 1~8

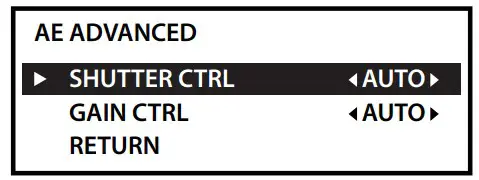

3. ADVANCED: SHUTTER CTRL/ GAIN

   CTRL. SHUTTER CTRL: AUTO
   MANUAL: PAL(1/25~1/10000) / NTSC(1/30~1/10000)
   GAIN CTRL:AUTO MANUAL: ANALOG GAIN(1~16) / DIGITAL GAIN(1~15)

WB

White Balance do not suggest changing it.
MODE: ATW/ MWB.
White Balance do not suggest changing it.
MWB:
RGAIN: 0~32
BGAIN: 0~32

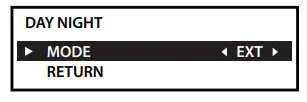

DAY NIGHT

MODE: EXT(external)/ AUTO/ COLOR/ BW(black and white ).

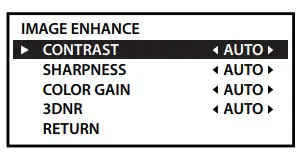

IMAGE ENHANCE

CONTRAST: AUTO/MANUAL(0~40) SHARPNESS: AUTO/MANUAL(0~16)
COLOR GAIN: AUTO/MANUAL(0~30)3DNR: AUTO/MANUAL(0~30)

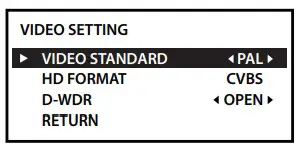

VIDEO SETTING

VIDEO STANDARD: PAL/NTSC
D-WDR: OPEN/CLOSE

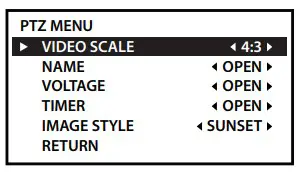

SPECIAL SETTING

VIDEO SCALE: 4:3 / 16:9 NAME: OPEN/CLOSE
VOLTAGE: OPEN/CLOSE TIMER: OPEN/CLOSE

LANGUAGE

LANGUAGE: ENGLISH /中文/ PYCCKNN / ESPANOL / ITALIANO /FRANCAIS/
POLSKIM/ PORTUGUES / 日本语 / EAAHNIKA

RESET

RESET: Return to camera’s initial setting.
