Foxeer 1000tvl Digisight Nano Digital Camera User Manual

FOXEER 1000TVL DigiSight Nano Digital Camera

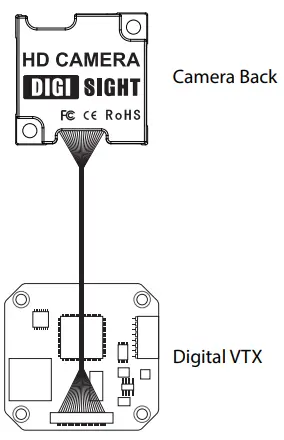

CAMERA-VIDEO TRANSMITTER CONNECTION

Plug the ribbon cable from the camera to the video transmitter.

FPV OSD Setup

Press VTX programming board top button for 3s, you can access OSD menu.

1.  TIME: ON/OFF
2.  SYSTEM: 60/50FPS switchable.
3.  SIZE: 4:3/16:9 switchable.
4.  SCENE: DAY/ NIGHT/ LED/ B&W.
5.  VER: FOXEER_HD_V1.0.

Main MENU

MENU: Push MENU(center button) to go to the main menu.
UP/DOWN: Move up and down through the menu.
Left/Right: Modify the menu parameters.

1. Camera ID
   • Camera ID: ON/OFF. You can set up pilot’s name and position.
2. PICT ADJUST
   •  FLIP: OFF/ H-FLIP/ V-FLIP/ HV-FLIP
   •  BRIGHTNESS
   •  CONTRAST
   •  SHARPNESS
   •  HUE
   •  COLOR GAIN
3. DAY/NIGHT
   • DAY/NIGHT include “AUTO” and “MANUAL”, click “MANUAL”, you can set up permanent “COLOR” or “B/W”.
4. LANGUAGE
   • 7 Languages: ENGLISH/ DEUTSCH/ FRANCAIS/ PYCCKNN/ PORTUGUES/ ESPANOL/ 中文 .
5. Camera reset
6. EXIT
   • Save All: Save all setup.
   • cancel: Cancel Setup

WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before operating. Failure to operate the product correctly can result in damage to the product, and personal property and cause serious injury.

NOTICE: This product is only intended for use with unmanned, hobby-grade, remote-controlled vehicles and aircraft. FOXEER disclaims all liability outside of the intended purpose and will not provide warranty service related thereto.

SUPPORT: Visit www.foxeer.com/ to get more information
