FOXEER Night FPV Camera

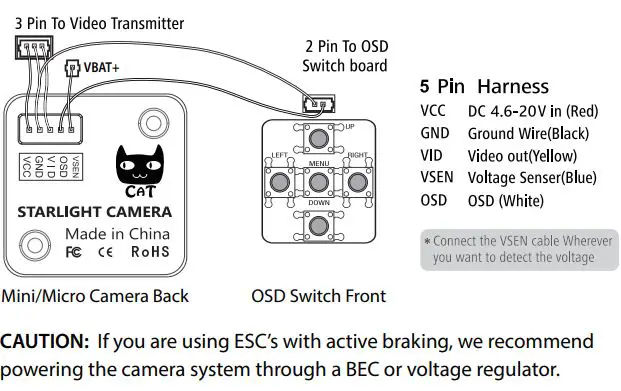

CAMERA-OSD SWITCH CONNECTION
CAMERA-VIDEO TRANSMITTER CONNECTION DAY NIGHT
To connect the camera directly to the video transmitter, plug the 3 pin wiring harness from the video transmitter into the camera, or you can power the camera by another device, PDB, FC, Bat…
MENU: Push MENU(center button) to go to the main menu.
UP/DOWN: Move up and down through the menu.
Left/Right: Modify the menu parameters.
AE
Auto Exposure.
1. BRIGHTNESS: 0~30.
2. EXPOSURE MODE:
- GLOBE(Global)
- FLC(Front light control): 1~8
- BLC(Backlight control): 1~8
3. ADVANCED: SHUTTER CTRL/ GAIN CTRL.
- SHUTTER CTRL: AUTO MANUAL: PAL(1/25~1/10000) / NTSC(1/30~1/10000)
- GAIN CTRL: AUTO MANUAL: ANALOG GAIN(1~16) / DIGITAL GAIN(1~15)
WB
White Balance does not suggest changing it.
MODE: ATW/ MWB.
MWB:
- RGAIN: 0~32
- BGAIN: 0~32
DAY-NIGHT
MODE: EXT(external)/AUTO/COLOR/BW(black and white).
IMAGE ENHANCE
- CONTRAST: AUTO/MANUAL(0~40)
- SHARPNESS: AUTO/MANUAL(0~16)
- COLOR GAIN: AUTO/MANUAL(0~30)
- 3DNR: AUTO/MANUAL(0~30)
VIDEO SETTING
- VIDEO STANDARD: PAL/NTSC
- D-WDR: OPEN/CLOSE
SPECIAL SETTING
VIDEO SCALE: 4:3 WIDE/ 4:3 NARROW /16:9
- NAME: OPEN/CLOSE
- VOLTAGE: OPEN/CLOSE
- TIMER: OPEN/CLOSE
LANGUAGE
LANGUAGE: ENGLISH // PYCCKNN / ESPANOL / ITALIANO /FRANCAIS/ POLSKIM/ PORTUGUES / / EAAHNIKA
RESET
RESET: Return to camera’s initial setting.
