THOUGH LIQUID 360 ARAB
TRX40 Edition
Installation Guide
Parts List

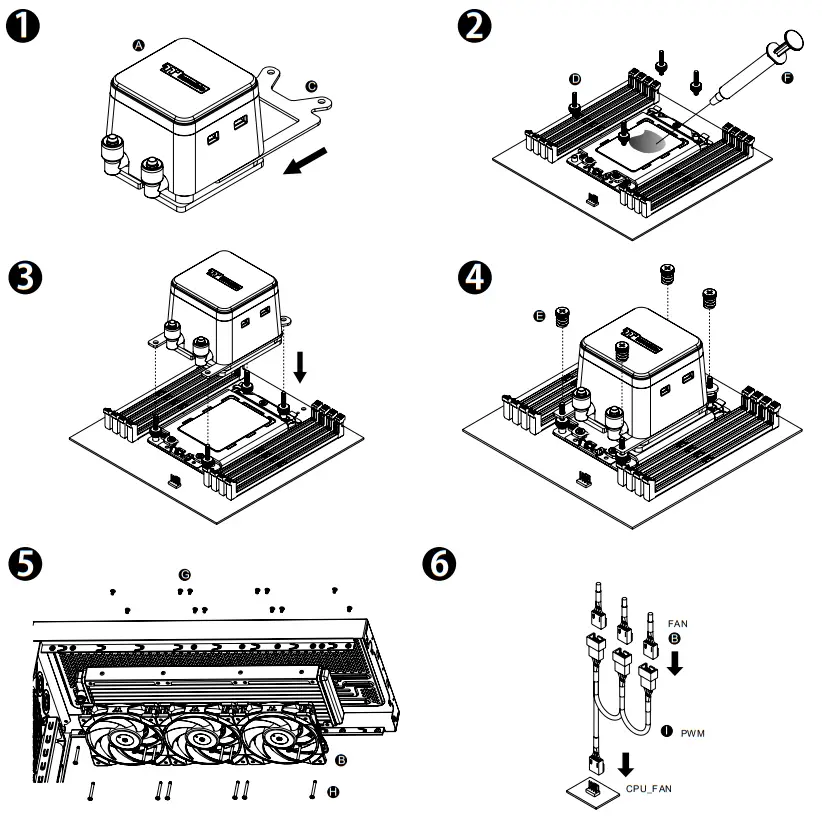

Installation Guide
Open the cap counterclockwise, and lock it in a clockwise direction. Set the logo to an angle that fits your setup better.

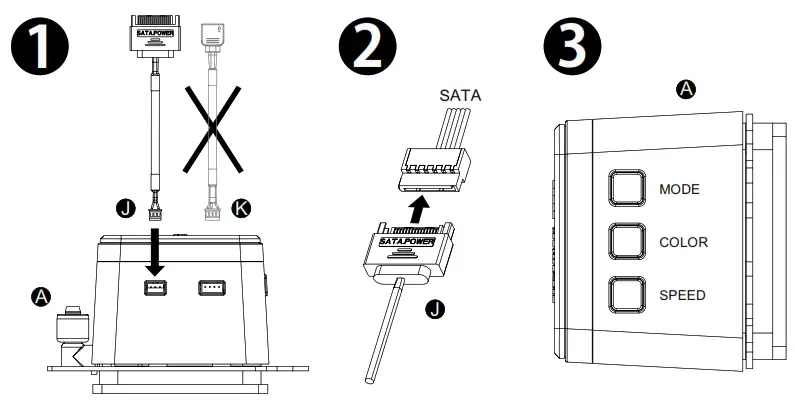

ARGB Controller Installation Guide
CAUTION
To use the ARGB Controller, please only connect Cable J to the water block
- Light Mode:
Switch over between 7 LED modes.
Rainbow → Full light → RGB Spectrum → Off → Flow → Radar → Pulse → Blink - Color Mode:
When the light mode is in Full Lighted, Pulse and Blink: Switch over 8 LED colors.
Red → Yellow → Green → Teal → Blue → White → Purple → Rainbow
When the light mode is in Ripple: Switch over 7 LED colors.
Red → Yellow → Green → Teal → Blue → White → Purple
When the light mode is in RGB Spectrum: Click to memorize and lock the color you want, and click again to unlock the 256 colors auto rotation.
When the light mode is in Wave and Flow: LED color can not be adjusted. - Light Speed:
Switch over between 4 light modes.
Slow → Normal → Fast → Extreme

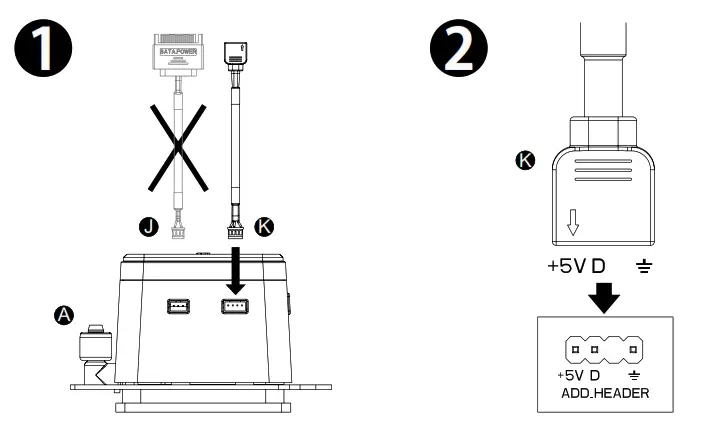

MB SYNC Installation Guide
CAUTION
- To use Motherboard RGB Software, please only connect Cable K to the water block
- Please power off the PC and check the Positive and Negative ends on the connector before connecting the cable to the mainboard. Connecting the wrong end can damage the product.
https://www.thermaltake.com/toughliquid-360-argb-trx40-all-in-one-liquid-cooler.html#productattach
