MEAN WELL RPT-60 Series 60W Reliable Triple Output Medical Grade
Features
- 4″x2″ Compact size
- Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
- Suitable for BF application with appropriate system consideration
- Cooling by free air convection
- EMI class B for class I configuration
- Extremely low leakage current
- Protections: Short circuit/ Overload/Over voltage
- 3 years warranty
Applications
- Oral irrigator
- Hemodialysis machine
- Medical computer monitors
- Sleep apnea devices
Description

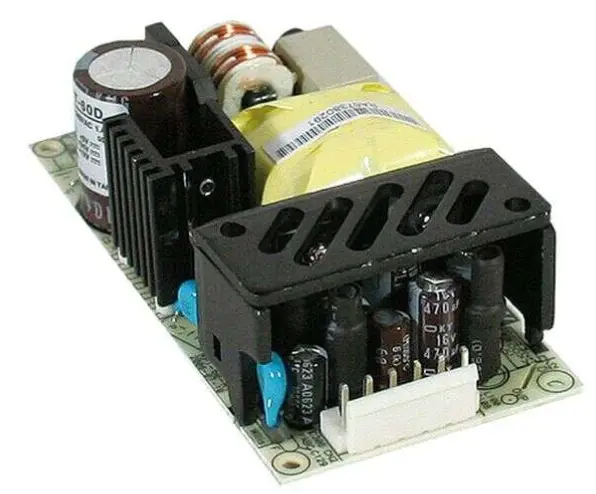

RPT-60 is a 60W highly reliable green PCB type medical power supply with a high power density on the 4″ by 2″ footprint. It accepts 90-264 VAC input and offers dual output voltages. RPT-60 is able to be used for Class I (with FG) system design. The extremely low leakage current is less than 150HA. In addition, it conforms to international medical regulations (2″MOPP) and EMC BS EN/EN55011.

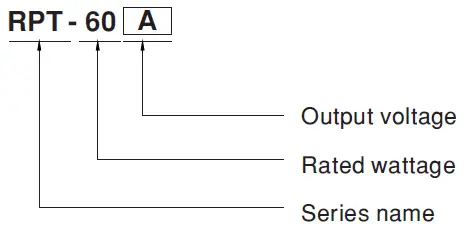

Model Encoding

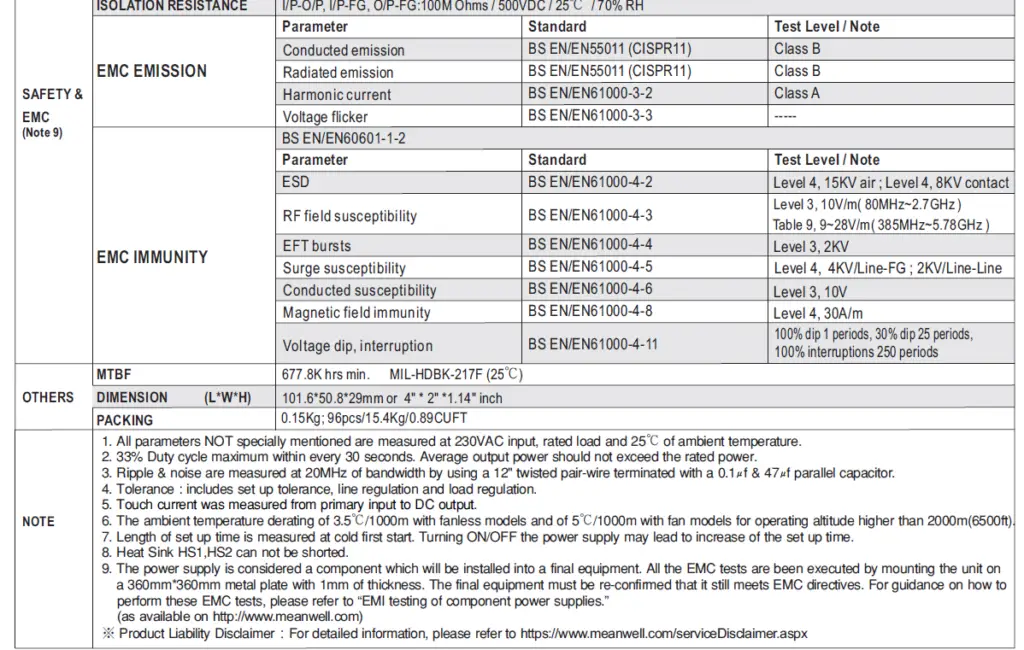

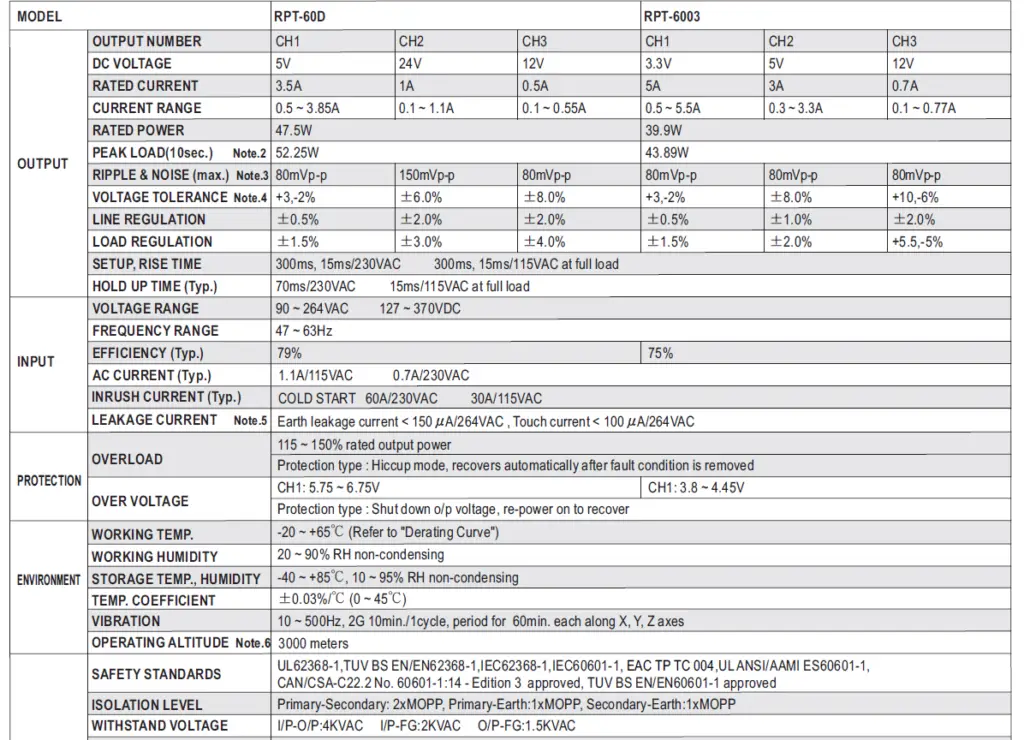

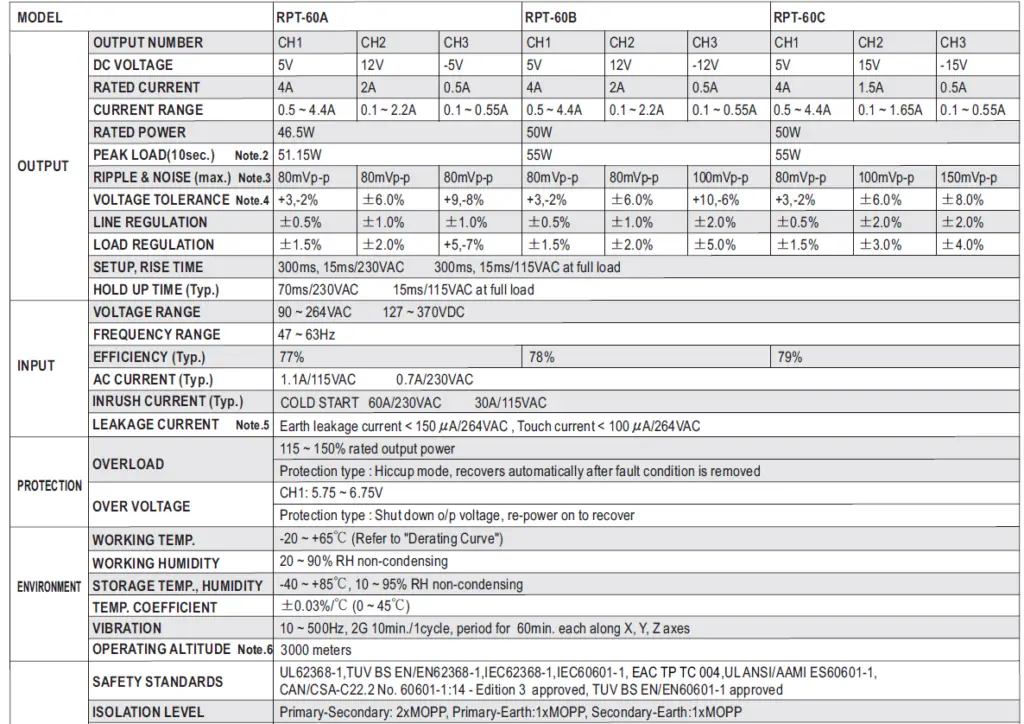

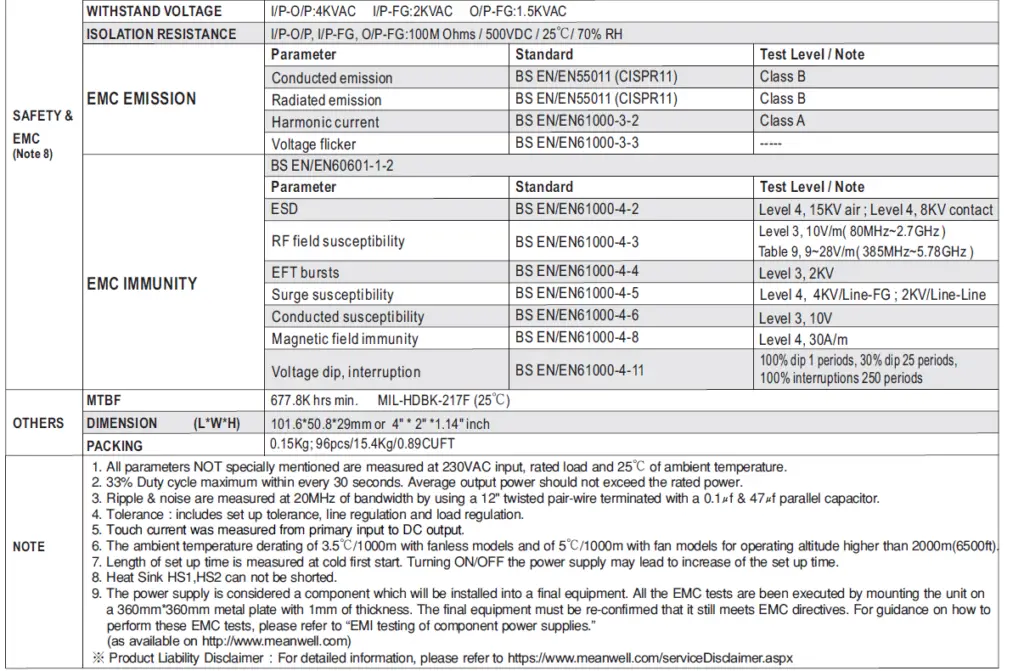

SPECIFICATION

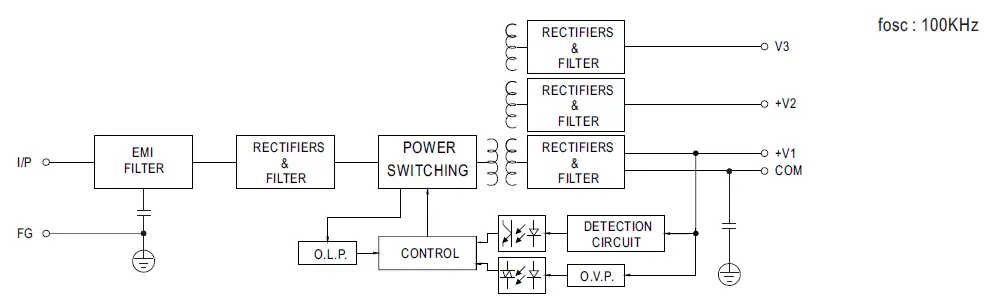

Block Diagram

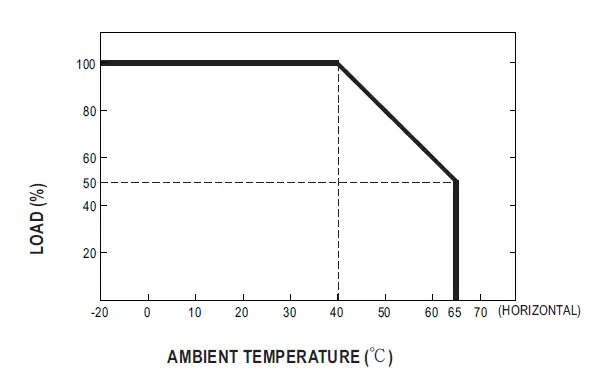

Derating Curve

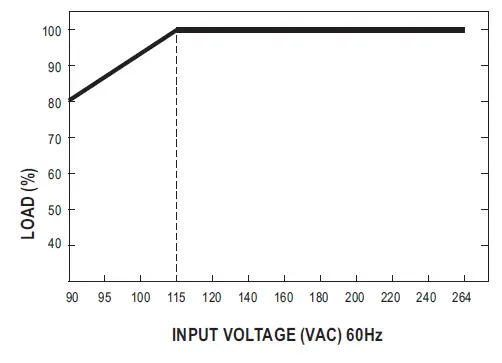

Output Derating VS Input Voltage

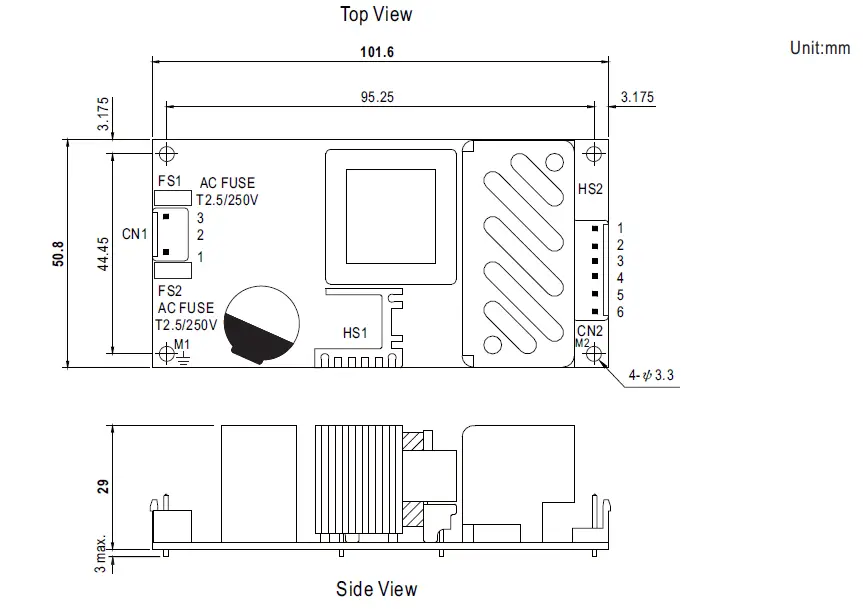

Mechanical Specification

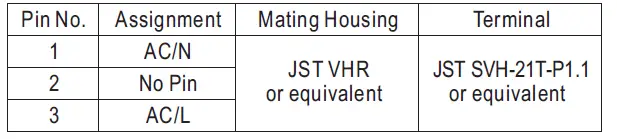

AC Input Connector (CN1): JST B3P-VH or equivalent

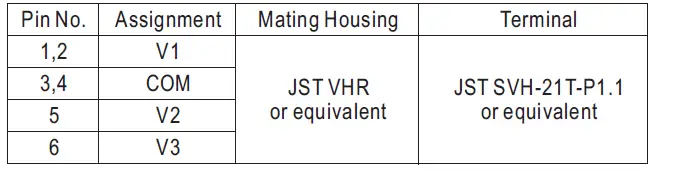

DC Output Connector (CN2): JST B6P-VH or equivalent
Grounding Required
- HS1, and HS2 cannot be shorted.
- M1 is a safety ground. For better EMC performance, Please secure an electrical connection between M1, M2, and chassis grounding.
Installation Manual
Please refer to: http://www.meanwell.com/manual.html
