MEAN WELL MPM-30 Series 30W High Reliable Green Medical Encapsulated Type
Features
- 2.73″x1.53″ compact size
- Medical safety approved (2 x MOPP) according to ANSVAAMI ES60601-1 and IEC/BS EN/EN60601-1
- Suitable for BF application with appropriate system consideration
- No load power consumption<0.075W
- Extremely low leakage current
- Wide operating temp. range-40~ +85C
- EMI Class B for class II configuration
- Protections: Short circuit/ Overload/Over voltage
- No minimum load required
- 3 years warranty
Applications
- Portable medical device
- Mobile clinical workstation
- Medical computer monitor
- Medical examination instrument
GTIN CODE
MW Search: https://www.meanwell.com/serviceGTIN.aspx
Description
MPM-30 is a 30W high density and small size (69.5x39x24mm) AC/DC module type medical power supply series offered in pin type. It features the operation for 80-264VAC, a low no-load power consumption less than 0.075W, high efficiency up to 91%, Class II (no FG) double insulation, outstanding dissipation, and high lifespan thanks to the interior potting, high EMC performance, 4KVAC isolation, etc. PCB mounting style model (Blank) meets the anti-vibration demand up to 2G and the screw terminal style model (ST) meet the anti-vibration demand up to 5G. The design observes IEC/BS EN/EN60601-1 and ANSI/AAMI ES60601-1version three with 2xMOPP level and ultra-low leakage current (<80u A). It is very suitable for BF (patient contact) type medical device or relevant equipment. In addition to PCB mounting style, MPM-30 series also offers the screw terminal style model (ST).

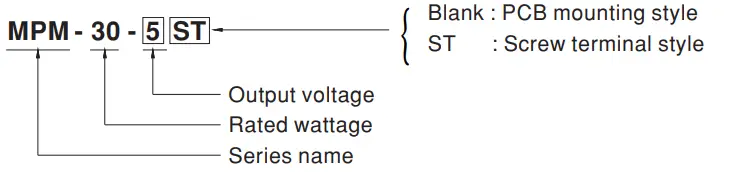

Model Encoding

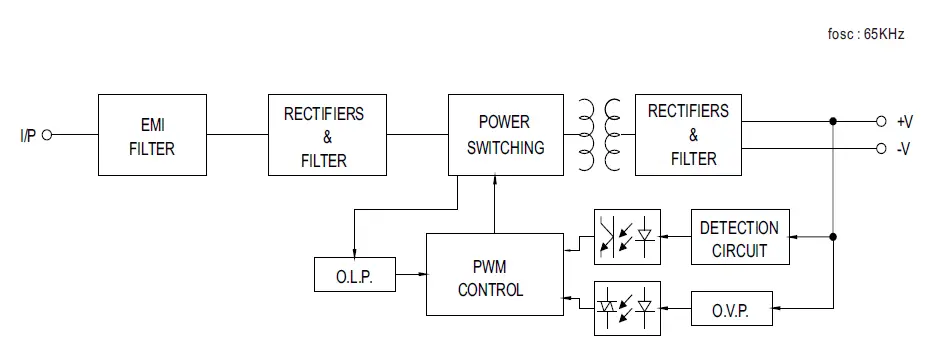

Block Diagram

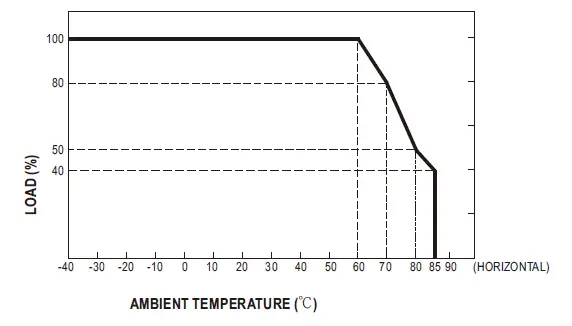

Derating Curve

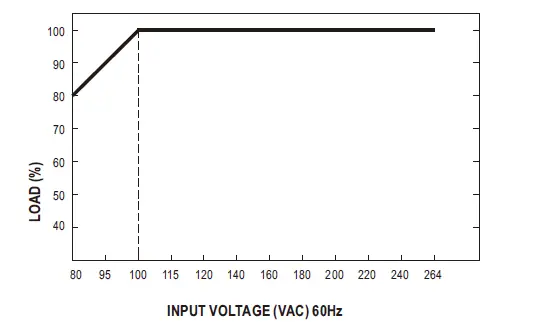

Output Derating VS Input Voltage
Mechanical Specification

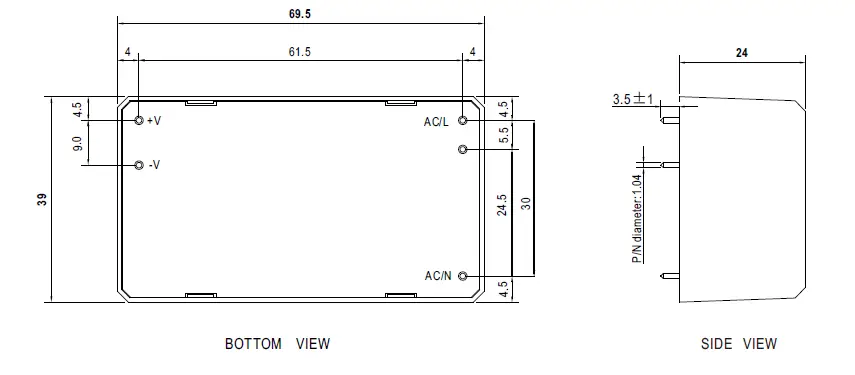

- MPM-30 (PCB mounting style)
- MPM-30-ST (Screw terminal style)
Installation Manual
Please refer to: http://www.meanwell.com/manual.html
