POP-A5076-MK Poppy Six Light Chandelier
Instruction Manual
POP-A5076-MK Poppy Six Light Chandelier
DETAILED ILLUSTRATION
WARNING:
 |  |
| Electrical Danger | Turn Power Off |
All electrical components must be installed by a licensed electrician in accordance with the National Electric Code and the appropriate local electrical codes.
You will need 6 -Candelabra Base Bulb 40 Watts Recommended 60 Watts Max.
USE LED BULBS FOR EXTENDED USE
THIS FIXTURE IS DAMP RATED
How to Install
- Place the candle sleeve onto the socket, and insert recommended bulb (not included).
- Feed wires through stem and swivel/loop.
- Attach the stem onto the light cluster.
- Attach the swivel/loop onto the stem. 5.Dress the bead strands as illustrated.
Bead Sets
A. 11 Sets.
(11)14mm + (8)20mm + (3)26mm + (1)(20-40)mm
B. 11 Sets.
(12)14mm + (9)20mm + (5)26mm + (1)(20-40)mm
C. 11 Sets.
(11)14mm + (6)20mm + (3)26mm + (1)(20-40)mm
D. 12 Sets.
(5)14mm + (5)20mm + (2)26mm + (1)(20-40)mm
E. 11 Sets.
(7)14mm + (7)20mm + (3)26mm + (1)(20-40)mm
F. 11 Sets.
(8)14mm + (4)20mm + (2)26mm + (1)(20-40)mm
G. 11 Sets.
(5)14mm + (5)20mm + (1)26mm + (1)(20-40)mm
H. 10 Sets.
(3)14mm + (3)20mm + (1)26mm + (1)(20-40)mm
I. 10 Sets.
(4)14mm + (2)20mm + (1)(20-40)mm
J. 10 Sets.
(5)14mm + (5)20mm + (1)26mm + (1)(20-40)mm
K. 10 Sets.
(5)14mm + (2)20mm + (1)(20-40)mm
L. 10 Sets.
(3)14mm + (3)20mm + (1)26mm + (1)(20-40)mm
M. 10 Sets.
(3)14mm + (2)20mm + (1)26mm + (1)(20-40)mm
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer and/or birth defects or reproductive harm. For more information go to www.P65Warnings.ca.gov.

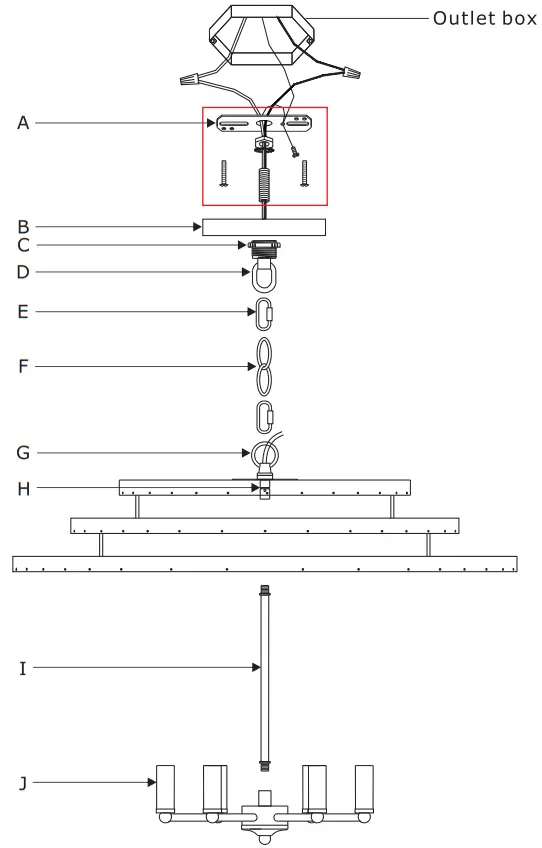

Part Number
A. (1) – Mounting Hardware
B. (1) – Canopy(W4.73″,H0.79″) #XRE5076MKCAN4.73IN
C. (1) – Collar Ring
D. (1) – Collar Loop
E. (2) – Quick Link
F. (1) – Hanging Chain(72″,4mm) #XRE5076MKCHA4MM
G. (1) – Fixture Loop
H. (1) – Swivel
I. (1) – Center Stem(9.09″,9.5mm) #XRE5076MKSTEM9IN
J. (6) – Candle Sleeve(W0.87″,H1.97″) #XRE5073MKCDL1.97IN
Crystorama Lighting
