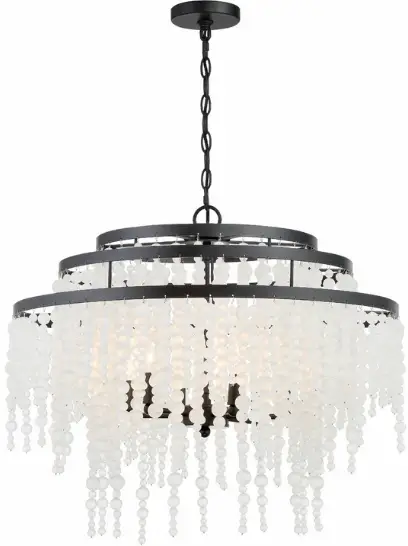

CRYSTORAMA POP-A5076-MK-FR Poppy Six Light Chandelier
Product Information
| Part Number | Model | Brand |
|---|---|---|
| MODEL #POP-A5076-MK-FR | POP-A5076-MK-C | crstorama |
Product Usage Instructions
- Place the candle sleeve onto the socket, and insert the recommended bulb (not included).
- Feed the wires through the stem and swivel/loop.
- Attach the stem onto the light cluster.
- Attach the swivel/loop onto the stem.

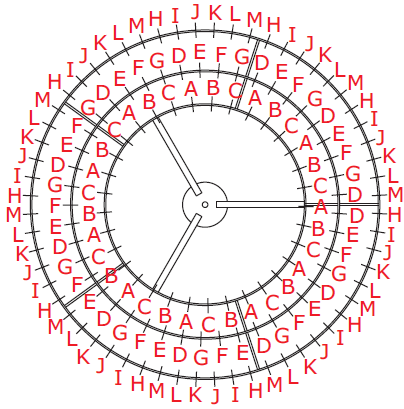

- Dress the bead strands as illustrated.

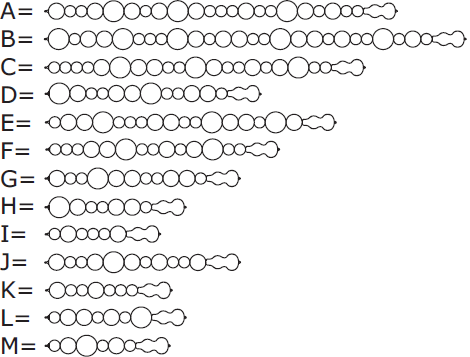

Bead Sets
| Bead Set | Quantity | Dimensions (mm) |
|---|---|---|
| A | 11 Sets | (11)14mm + (8)20mm + (3)26mm + (1)(20-40)mm |
| B | 11 Sets | (12)14mm + (9)20mm + (5)26mm + (1)(20-40)mm |
| C | 11 Sets | (11)14mm + (6)20mm + (3)26mm + (1)(20-40)mm |
| D | 12 Sets | (5)14mm + (5)20mm + (2)26mm + (1)(20-40)mm |
| E | 11 Sets | (7)14mm + (7)20mm + (3)26mm + (1)(20-40)mm |
| F | 11 Sets | (8)14mm + (4)20mm + (2)26mm + (1)(20-40)mm |
| G | 11 Sets | (5)14mm + (5)20mm + (1)26mm + (1)(20-40)mm |
| H | 10 Sets | (3)14mm + (3)20mm + (1)26mm + (1)(20-40)mm |
| I | 10 Sets | (4)14mm + (2)20mm + (1)(20-40)mm |
| J | 10 Sets | (5)14mm + (5)20mm + (1)26mm + (1)(20-40)mm |
| K | 10 Sets | (5)14mm + (2)20mm + (1)(20-40)mm |
| L | 10 Sets | (3)14mm + (3)20mm + (1)26mm + (1)(20-40)mm |
| M | 10 Sets | (3)14mm + (2)20mm + (1)26mm + (1)(20-40)mm |
Product Parts
| Part Number | Description |
|---|---|
| A | Mounting Hardware |
| B | Canopy(W4.73,H0.79) #XRE5076MKCAN4.73IN |
| C | Collar Ring |
| D | Collar Loop |
| E | Quick Link |
| F | Hanging Chain(72,4mm) #XRE5076MKCHA4MM |
| G | Fixture Loop |
| H | Swivel |
| I | Center Stem(9.09,9.5mm) #XRE5076MKSTEM9IN |
| J | Candle Sleeve(W0.87,H1.97) #XRE5073MKCDL1.97IN |

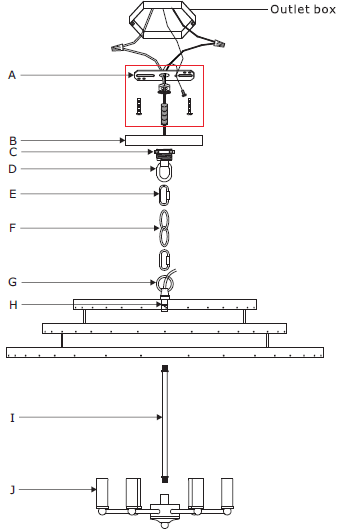

DETAILED ILLUSTRATION
All electrical components must be installed ov a licensed electrician in accordance with the National Electric Code and the appropriate local electrical codes
You will need 6 -Candelabra Base Bulb 40 Watts Recommended 60 Watts Max. USE LED BULBS FOR EXTENDED USE
THIS FIXTURE IS DAMP RATED
How to install
- Place the candle sleeve onto the socket, and insert recommended bulb (not included).
- Feed wires through stem and swivel/loop.
- Attach the stem onto the light cluster.
- Attach the swivel/loop onto the stem.
- Dress the bead strands as illustrated.
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer and/or birth defects or reproductive harm. For more information go to www.P65Warnings.ca.gov.
PART NUMBER
- A. (1) – Mounting Hardware
- B. (1) – Canopy(W4.73″,H0.79″) #XRE5076MKCAN4.73IN
- C. (1) – Collar Ring
- D. (1) – Collar Loop
- E. (2) – Quick Link
- F. (1) – Hanging Chain(72″,4mm) #XRE5076MKCHA4MM
- G. (1) – Fixture Loop
- H. (1) – Swivel
- I. (1) – Center Stem(9.09″,9.5mm) #XRE5076MKSTEM9IN
- J. (6) – Candle Sleeve(W0.87″,H1.97″) #XRE5073MKCDL1.97IN
Crystorama Lighting
