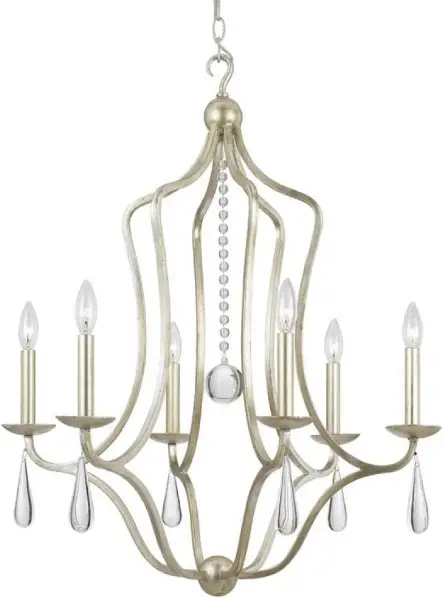

CRYSTORAMA 5976-SL Manning Six Light Chandelier
All electrical components must bi installed by a licensed electrician in accordance with the National Electric Code and the appropriate local doctrinal codec
- You will need 6 – Cand. Bulb 40 Watts Recommended 60 Watts Max
- USE LED BULBS FOR EXTENDED USE This fixture is damp rated
WARNING

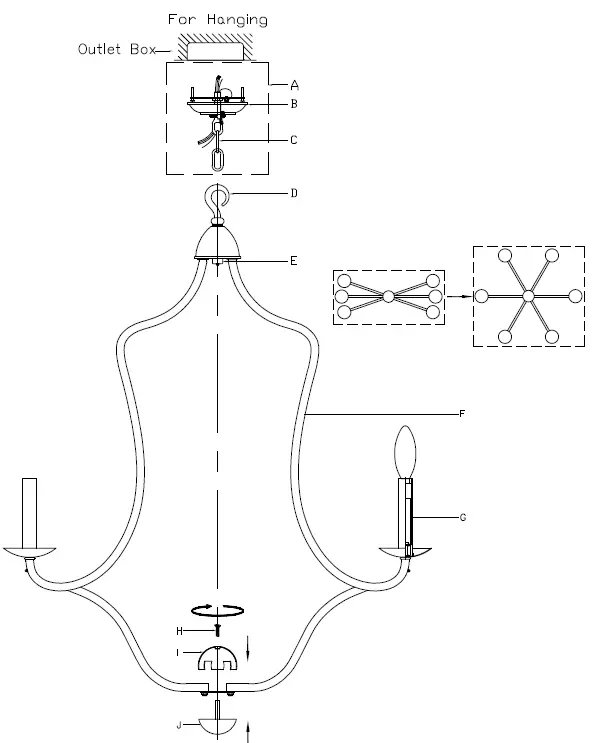

How to Install For Hanging
- Place the frame on a soft cloth-covered table before installation.
- Spread the arms at equal spacing and then place the notched cap over the top of the arms. Make sure the slot fits over the arm.
- Align the stud on the bottom cover with the hole at the bottom of the frame and insert the screw into the stud in the bottom cover. Tight it using a screwdriver.
- Hang the crystal drop to the body.

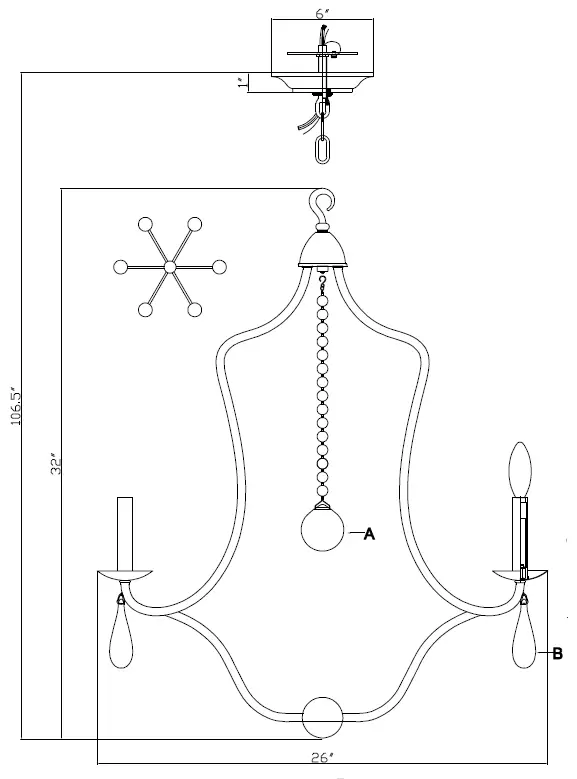

DIMENSION

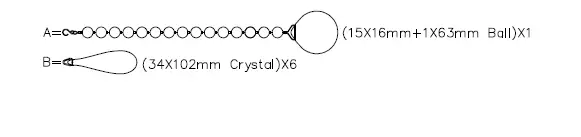

Crystal sets
- A. 1 piece. (1)63mm+(15)16mm.
- B. 6 pieces. (1)34X102mm.
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer and/or birth defects or reproductive harm. For more information go to www.P65Warnings.ca.gov
Part Numbers
- A. (1)-Mounting Hardware For Hanging
- B. (1) -Canopy For Hanging; W6″XH1″; XSU5973SLCAN6IN
- c. (1)-Chain; 72″; 4.0mm; XSU5973SLCHA4MM
- D. (1)-Hook
- E. (1) -Finial; XSU5973SLFIN
- F. (1)-Fixture Body
- G. (6)-Candle Sleeve; $0.75″X4.75″; XSU5973SLCDL4.75IN
- H. (1)-Screw
- 1. (1)-Notched cap $2.36″XH2″
- J. (1)-Bottom cover$2.28″XH1″
