Crystorama 8109-ag Paxton Eight Light Chandelier Instruction Manual

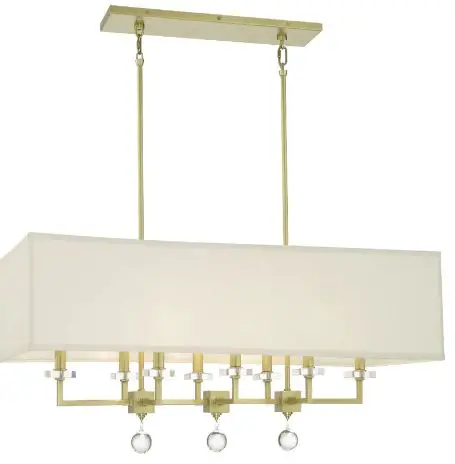

CRYSTORAMA 8109-AG Paxton Eight Light Chandelier

Product Information

The product is a chandelier with model number 8109-AG manufactured by Crystorama. The chandelier is designed to be installed on the ceiling and requires electrical components to be installed by a licensed electrician in accordance with the National Electric Code and the appropriate local electrical codes. The chandelier comes with mounting hardware, crystal bobeche, crystal ball, and can hold 8 candelabra bulbs with a maximum wattage of 60 watts each. The product is made of materials that may contain lead, which is known to the State of California to cause cancer and/or birth defects or reproductive harm.

Product Usage Instructions

1. Fix the mounting plate to the ceiling using the provided screws.
2. Lock the canopy on the mounting plate and connect the wires.
3. Slide the crystal bobeche over the socket.
4. Put the shade on the candle sleeve and install the recommended bulbs (8 candelabra bulbs with a maximum wattage of 60 watts each). Use LED bulbs for extended use.
5. Screw the crystal ball into the bottom frame.
6. Turn on the power and enjoy your new chandelier!

Note: All electrical components must be installed by a licensed electrician in accordance with the National Electric Code and the appropriate local electrical codes. The product may contain lead, which is known to the State of California to cause cancer and/or birth defects or reproductive harm. For more information, please visit www.P65Warnings.ca.gov.

All electrical components must be installed by a licensed electrician in accordance with the National Electric Code and the appropriate local electrical codes

You will need 8-Candelabra Bulb 60 watts Max Bulb not included USE LED BULBS FOR EXTENDED USE This fixture is DRY rated

How to Install

1. The mounting plate is fixed to the ceiling with screws.
2. Lock the canopy on the mounting plate and connect the wires.
3. Slide the crystal bobeche over the socket.
4. Put the shade on the candle sleeve,Install the recommended bulbs into each socket.
5. Screw the crystal ball into the bottom frame.

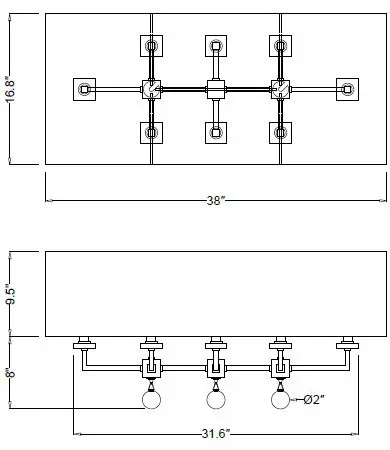

DIMENSIONS

WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer and/or birth defects or reproductive harm. For more information go to www.P65Warnings.ca.gov

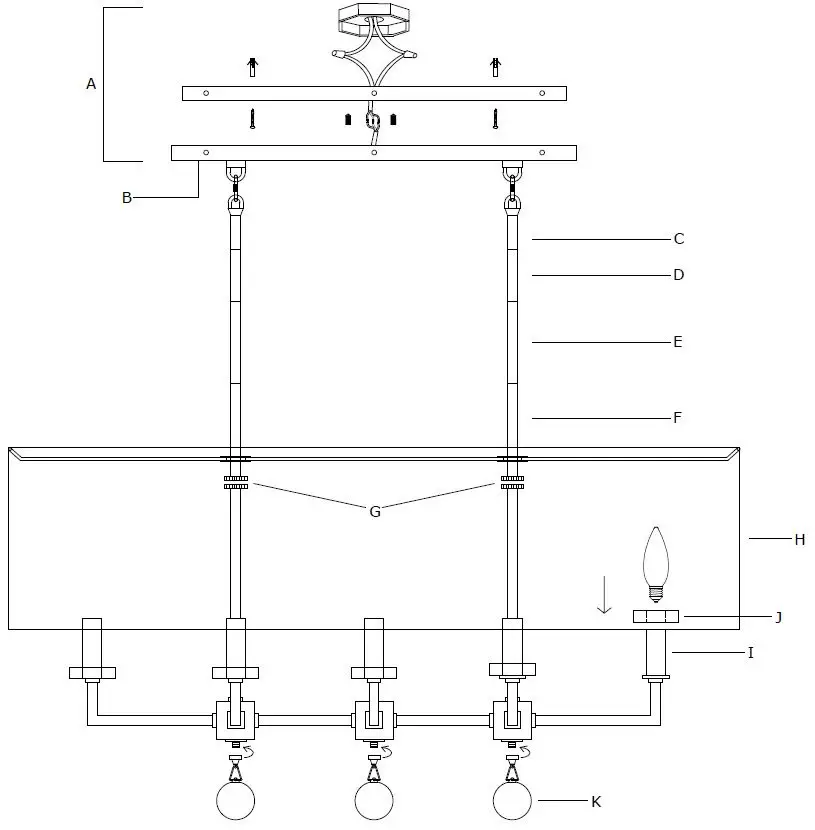

Part Number

PART NUMBER MODEL #8109-AG

1. A.Mounting Hardware
   1. (1)Mounting Plate
   2. (3)Mounting Screws
   3. (3)Wire Nut
   4. (3)Wall anchor
   5. (3)Wall anchor screws
   6. (6)Screws
2. B.(1)Canopy;21″x5″ x0.75″h;XMO8109AGCAN21IN
3. C.(2)3IN Rod;00.5″xL3″; XM08109AGROD3IN
4. D. (2)6IN Rod;00.5″xL6″;XMO8109AGROD6IN
5. E.(2)12IN Rod;00.5 xL 12″; XM08109AGROD12IN
6. F. (2)18IN Rod;00.5″ xL 18″; XM08109AGROD18IN
7. G.(4)Knurled Nut
8. H. (1) Fabric Shade; 38″x16.8″x9.5″h; XM08109SHA38IN
9. 1. (8) Socket
10. J.(8)Crystal bobeche
11. K. (3) Crystal ball

SCAN QR

crystorama.com
