Crystorama 1487-hb-cl-mwp Eight Light Chandelier Instruction Manual

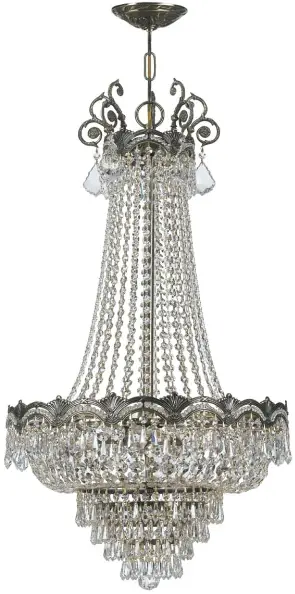

CRYSTORAMA 1487-HB-CL-MWP Eight Light Chandelier

Product Information

• Model: #1487-HB-CL-MWP
• Assembly Instruction
• Warning: This product can expose you to Lead, which is known to the State of California to cause cancer and/or birth defects or reproductive harm. For more information go to www.P65warnings.ca.gov
• The fixture is dry rated
• Requires 8 Candelabra Base Bulbs (40 Watts recommended, 60 Watts Max). It is recommended to use LED bulbs for extended use.

Product Usage Instructions

1. Before starting the installation, do a complete inventory of all parts and components.
2. Safely attach the fixture into the outlet box.
3. Install bobeches and bulbs.
4. Connect the power.
5. Dress the fixture starting with the pocket labeled (A).
6. Apply crystal sets in alphabetical order:
   • Crystal Set A: 224 Sets
   • Crystal Set B: 5 Sets
   • Crystal Set C: 25 Sets
   • Crystal Set D: 50 Sets
   • Crystal Set E: 1 Piece

Please refer to the detailed illustration in the user manual for pin hole quantities and part numbers.
All electrical components must be installed by a licensed electrician in accordance with the National Electric Code and the appropriate local electrical codes.

You will need 8 -Candelabra Base Bulb 40 Watts recommended 60Watts Max. USE LED BULBS FOR EXTENDED USE
The fixture is dry rated.

How to Install

1.  Do a complete inventory of all parts and components before you start installing.
2. After safely attaching fixture into outlet box, install bobeches, bulbs and proceed to connecting the power.
3. When you begin to dress the fixture, start with pocket labeled(A)
4.  IMPORTANT: Apply crystal sets in alphabetical order.

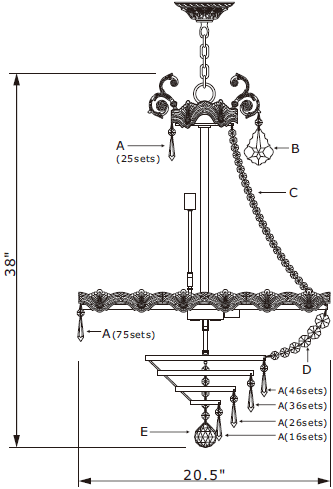

Crystal Sets

• A. 224 Sets. (1)14mm + AS2-1.5″
• B. 5 Sets. (1) 14mm + AS20-3″
• C. 25 Sets. (27)14mm
• D. 50 Sets.
  (1)28mm + (1)26mm +
  (1)24mm + (1)20mm +
  (1)18mm + (1)16mm
• E. 1 Piece. (5)14mm + AS8-40mm Ball

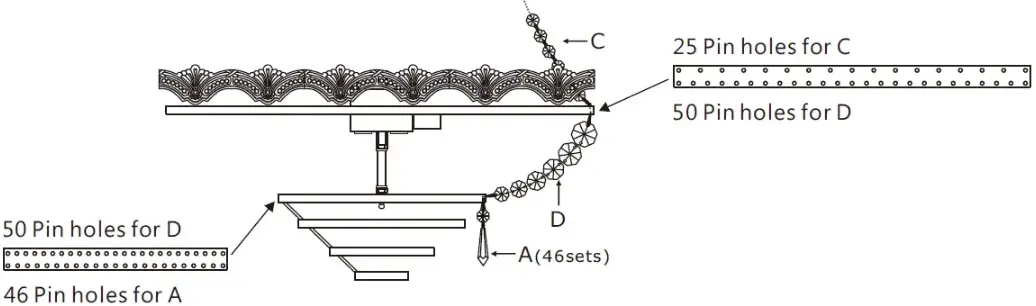

DETAILED ILLUSTRATION

WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer and/or birth defects or reproductive harm. For more information go to www.P65warnings.ca.gov

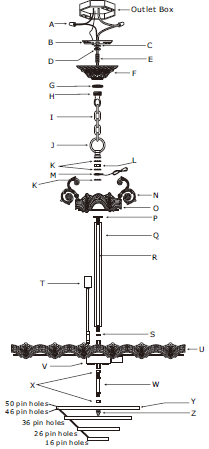

Part Number

• A. (2)-Wire Connector
• B. (1)-Mounting Bar
• C. (1)-Lock Washer
• D. (1)-Hex Nut
• E. (1)-Thread
• F. (1)-Canopy (W5″xH1.75″)
  – XSN1483CAN5IN
• G. (1)-Collar Ring
• H. (1)-Collar Loop
• I. (1)-Chain (4mmx72″)
  – XSN1486HBCHA4MM
• J. (1)-Loop
• K. (3)-Washer
• L. (1)-Nut
• M. (1)-Ground Wire
• N. (5)-Scroll
• O. (1)-Top Banding Kit Decorative banding;25 pin holes Inside metal ring;25 pin holes
• P. ( 1)-Check Ring
• Q. (1)-ROD;H19 3/4″
  – XSN1486HBROD19.75IN
• R. (1)-Thread;H20 1/4″
• S. (1)-Nut
• T. (1)-Movable Socket kit; H1 3/4″Thread with socket, H3.5″Thread with socket, H7.5″Thread with socket.
• U. (1)-Main Banding Kit Decorative banding,75pin holes Inside metal ring,25+50 pin holes
• V. ( 1)-Center Junction Kit 4″Junction box,3 side sockets; 2 inside sockets.
• W. (1)-Thread;H3″
• X. (2)-Nut
• Y. (1)-4-Tier basket;Ø10.5″,H4.5″ (50+46)+36+26+16 pin holes
• Z. (1)-Finial-XSN1483HBFIN
