ASSEMBLY INSTRUCTION MODEL #398-CH
- Top Swivel
- Bottom Swivel
A=
B=
WARNING:
Electrical Danger Turn Power Off
All electrical components must be installed by a licensed electrician in accordance with the National Electric Code and the appropriate local electrical codes.
You will need 8 -Candelabra Base Bulb 40 Watts Recommended 60 Watts Max.
USE LED BULBS FOR EXTENDED USE
How to Install
- Do a complete inventory of all parts and components before you start installation.
- Attach the light clusters center Stem onto the bottom swivel.
- Attach all four hanging stems together, making sure the 6″ stem is installed and located at the top.
- Feed fixtures wiring through the stem assembly prior to connection.
- Now take the bottom of the stem assembly (12″ stem) and connect it to the metal frame.
- The top side of the stem assembly (6″ stem), will then be attached to the top swivel.
- Insert recommended bulb (not included).

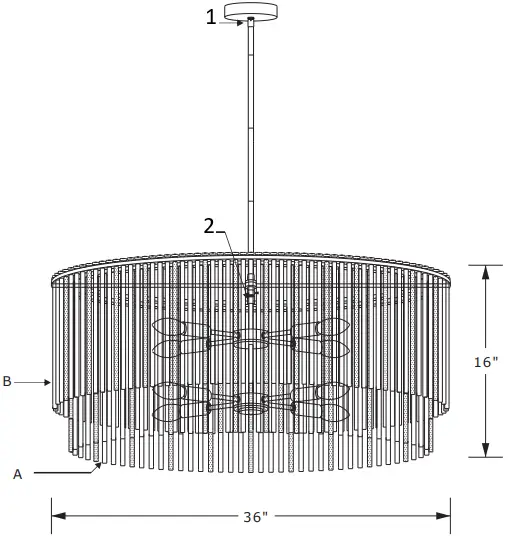

- Dress the fixture with glass rods “A” and “B” as illustrated.
Glass Rod Sets
A. 80 Pieces. 16″Clear glass rod
B. 80 Pieces. 12″Clear glass rod
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer and/or birth defects or reproductive harm. For more information go to www.P65Warnings.ca.gov.

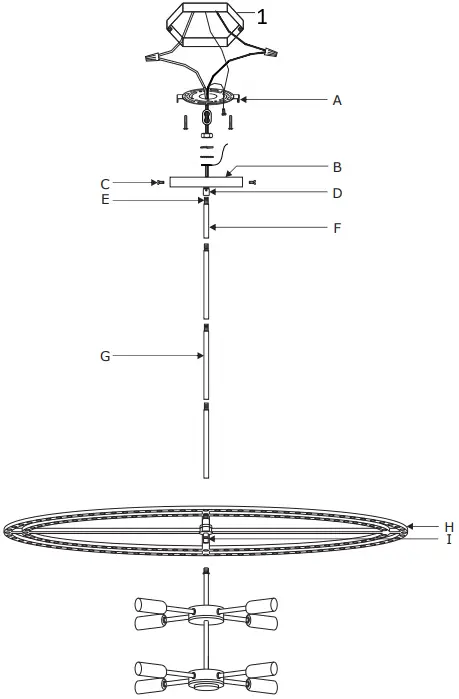

PART NUMBER
- Outlet box
A. (1) – Mounting Hardware
B. (1) – Canopy(L8″,W5″,H0.75″) #XRE398CHCAN8IN
C. (2) – Flat Screw
D. (1) – Top Swivel
E. (4) – Threaded Pipe
F. (1) – Hanging Stem(6″,15.9mm) #XRE398CHROD6IN
G. (3) -Hanging Stem(12″,15.9mm) #XRE398CHROD12IN
H. (1) – Metal Frame
I. (1) – Bottom Swivel
