ASSEMBLY INSTRUCTION MODEL #517-SA
517-SA Broche Six Light Chandelier
All electrical components must be installed by a licensed electrician in accordance with the National Electric Code and the appropriate local electrical codes.
You will need 6 -Candelabra Base Bulb 40 Watts Recommended 60 Watts Max.
USE LED BULBS FOR EXTENDED USE THIS FIXTURE IS DAMP RATED.
How to install
- Determine the preferred hanging height and adjust the chain accordingly.
- Take one hanging chain. Hang one end onto the hook under the canopy and hang the other hook inside the leaf assembly. Repeat for the other two chains.
- Weave the fixture wire through one of the hanging chains and through the canopy.
- Insert recommended bulb (not included).
- Install the canopy onto outlet box and secure it with the ball nuts.
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer and/or birth defects or reproductive harm. For more information go to www.P65Warnings.ca.gov.

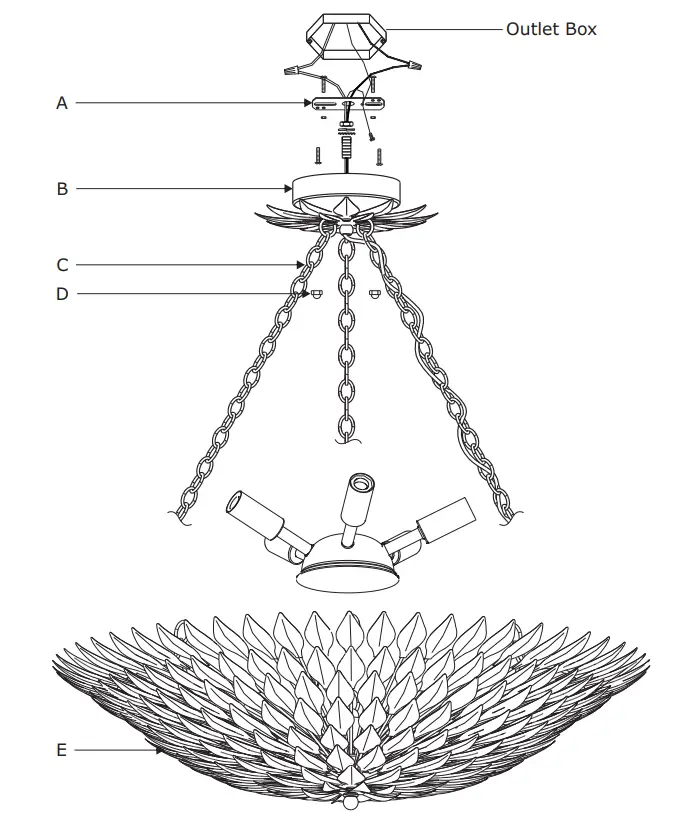

PART NUMBER
Part Number
A. (1) – Mounting Hardware
B. (1) – Canopy(W4.75″,H1″) #XRE517SACAN4.75IN
C. (3) – Small Hanging Chain(72″,2.8mm) #XRE517SACHA2.8MM
D. (2) – Ball Nuts #XRE517SABANUT
E. (1) – Leaf Assembly
