ASSEMBLY INSTRUCTION MODEL # 534-SA
PART NUMBER MODEL # 534-SA
534-SA Broche Four Light Chandelier
All electrical components must be installed by a licensed electrician in accordance with the National Electric Code and the appropriate local electrical codes
You will need 4 -Candelabra Bulb 40 Watts Recommended 60 Watts Max.
USE LED BULBS FOR EXTENDED USE THIS FIXTURE IS DAMP RATED
How to Install
- Screw the top stem onto the the top of the frame.
- Screw the bottom stem onto the bottom of the frame.
- Decide the preferred hanging height and choose the correct length of chain needed.
- Raise the fixture up to the ceiling and do the wire connections.
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer and/or birth defects or reproductive harm. For more information go to www.P85Warnings.ca.gov.

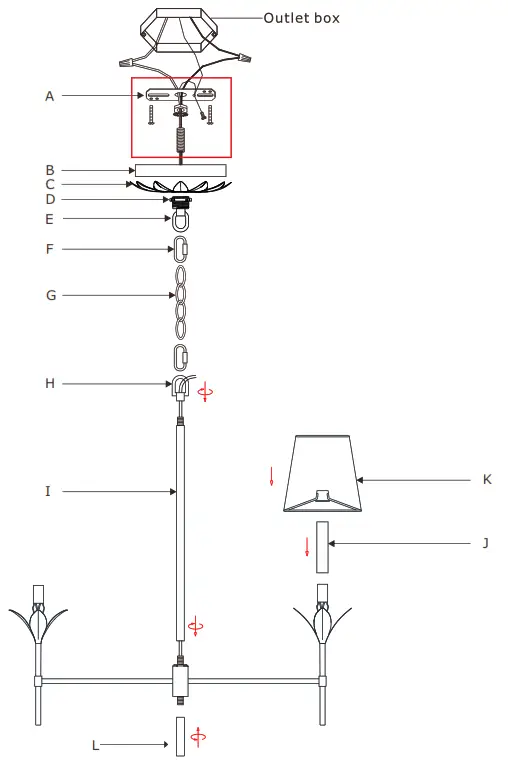

Part Number
A.(1)-Mounting Hardware
B.(1)-Canopy(W4. 7″, H0.79″) #XRE514SACAN4. 7IN
C.(1)-Decorative Metal Leaves
D.(1)-Collar Ring
E.(1)-Collar Loop
F.(2)-Quick Link
G.(1)-Hanging Chain(72″,4.0mm) #XRE504SACHA4MM
H.(1)-Loop
I.(1)-Top Stem(23.23″,15.9mm) #XRE534SASTEM23.23IN
J. (4)-Candle Sleeve(W0.87″,H3.9″) #XRE516SACDL3.94IN
K. (4)-White Fabric Shade #XRE531SHAGIN
L. (1)-Bottom Stem(3.23″,15.9mm) #XRE534SASTEM3.23IN
